Tractor · 1999Unverified

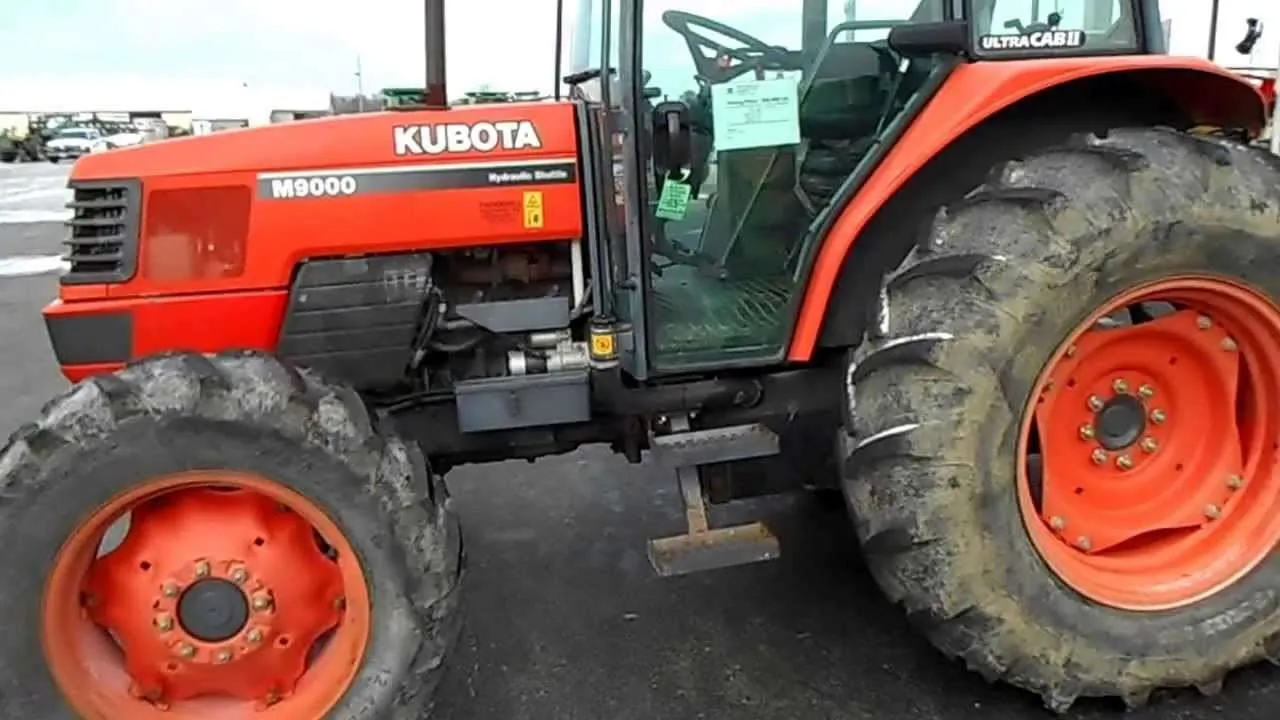

Kubota M9000DTL

Kubota M9000DTL — M Series · 92 hp. Reference specifications; pending source verification.

The Kubota M9000DTL is a tractor with an engine rating of 92 hp, positioning it in the middle of its class in terms of power. Manufactured between 1999 and 2006, the tractor features a 4-cylinder diesel liquid-cooled engine, transmitting power through a four-wheel drive system with hydrostatic transmission. The listed weight of the tractor is 2358 kg, and it is suitable for tasks covering an area of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
92 hp
Weight
2358 kg

Catalogue coverage

Variants represented
2
Richest spec table
58 rows
Recorded power
92 hp
Recorded weight
2358 kg
Transmissions
12-speed partially synchronized
Production years
1999-2006
Verified variants
0

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference
Orchard/Vineyard tractorReference
Four-wheel driveReference
Final drivesinboard planetaryReference
Steeringhydrostatic powerReference
Two-post foldable ROPS.Reference

Variants

M9000utilityReference
M9000DTLlow-profileReference
M9000DTMmudderReference

Engine

Kubota 3.3L 4-cyl dieselReference
Fuel tank90.1 LReference
Engine (gross)68.7 kWReference
Engine (net)67.1 kWReference
Kubota V3300-TIEReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke98 x 110 mmReference
Power (net)67.1 kWReference
Power (gross)68.7 kWReference
Fuel systemindirect injectionReference
Air cleanerdual dry elementReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity10.7 LReference
Coolant capacity9.0 LReference

Transmission

12-speed partially synchronizedReference
Typepartially synchronizedReference
Gears12 forward and reverseReference
Clutch300mm dry discReference
Oil capacity51.9 LReference
Four gears (1-4) in three ranges (creeper, low, and high). Synchronized shifting between gears and synchronized shuttle shifting.Reference

PTO & Hydraulics

PTO (claimed)59.7 kWReference
Typeopen centerReference
Valves1 to 3Reference
SCV flow64.3 lpmReference
Total flow87.4 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)2522 kgReference
Rear lift (at 24"/610mm)2100 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540Reference
Rear PTO Type540/1000 (optional)Reference

Dimensions

Wheelbase204 cmReference
Weight2358 kgReference
Front tire9.5-20Reference
Rear tire16.9-24Reference
Standard tires (ag)Front: 9.5-20. Rear: 16.9-24Reference
Length373 cmReference
Width183 cmReference
Height (ROPS)237 cmReference
Clearance (front axle)33 cmReference

Electrical

GroundnegativeReference
Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
