Tractor · 2000Unverified

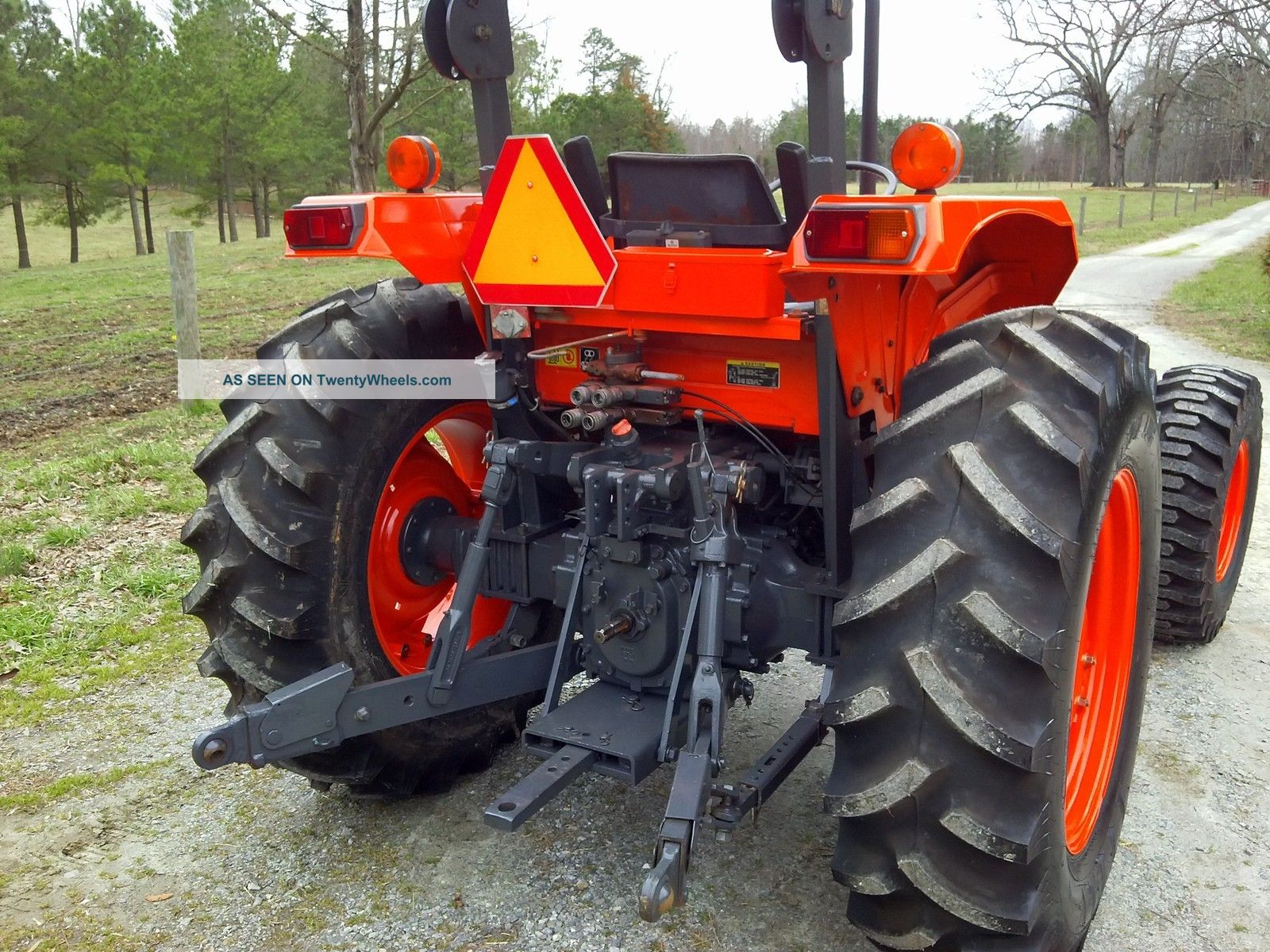

Kubota M9000DTM Mudder

Name: Kubota M9000DTM Mudder
Brand: Kubota

Kubota M9000DTM Mudder — M Series · 90 hp. Reference specifications; pending source verification.

The Kubota M9000DTM Mudder is a tractor with a rating of approximately 90 hp, a mid-range figure for its class. It was produced between 2000 and 2007. This model is equipped with a 4-cylinder diesel liquid-cooled engine, coupled with four-wheel drive and a hydrostatic transmission. Its operating weight is specified at 7140 to 7320 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

90 hp

Weight

7140 to 7320 pounds

Catalogue coverage

Variants represented

Richest spec table

64 rows

Recorded power

90 hp

Recorded weight

3238 kg

Transmissions

12-speed partially synchronized

Production years

2000-2007

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

High-Clearance tractorReference

Four-wheel driveReference

Final drivesinboard planetaryReference

Differential lockfront and rear standardReference

Steeringhydrostatic powerReference

Mechanical wet disc brakesReference

Two-post foldable ROPS. Cab optional with air-conditioning.Reference

Variants

M9000utilityReference

M9000DTLlow-profileReference

M9000DTMmudderReference

Engine

Kubota 3.3L 4-cyl dieselReference

Engine (net)67.1 kWReference

Kubota V3300-TIEReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.3 LReference

Bore/Stroke98 x 110 mmReference

Power (net)67.1 kWReference

Fuel systemindirect injectionReference

Air cleanerdual dry elementReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Oil capacity10.7 LReference

Coolant capacity9.0 LReference

Transmission

12-speed partially synchronizedReference

Typepartially synchronizedReference

Gears12 forward and reverseReference

Clutch300mm dry discReference

Oil capacity51.9 LReference

Four gears (1-4) in three ranges (creeper, low, and high). Synchronized shifting between gears and synchronized shuttle shifting.Reference

PTO & Hydraulics

PTO (claimed)59.7 kWReference

Hydraulic system51.9 LReference

Typeopen centerReference

Capacity51.9 LReference

Valves1 to 3Reference

SCV flow64.3 lpmReference

Total flow87.4 lpmReference

Rear Type2Reference

Controlposition and draft controlReference

Rear lift (at 24"/610mm)2100 kgReference

Rear lift (at 24"/610mm)2899 kgReference

Rear PTOindependentReference

ClutchhydraulicReference

Rear PTO Type540Reference

Rear PTO Type540/1000Reference

Capacities

Fuel90.1 LReference

Dimensions

Wheelbase225 cmReference

Weight7140 to 7320 poundsReference

Front tire13.6-38Reference

Rear tire13.6-38Reference

Standard tires (ag)Front: 13.6-38. Rear: 13.6-38Reference

Optional tires (ag)Front: 9.5-48. Rear: 9.5-48Reference

Length405 cmReference

Width200 cmReference

Height (ROPS)272 cmReference

Height (cab)287 cmReference

ROPS Weight3238 kgReference

Cab Weight3320 kgReference

Clearance (front axle)64 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
