Tractor · 2006Unverified

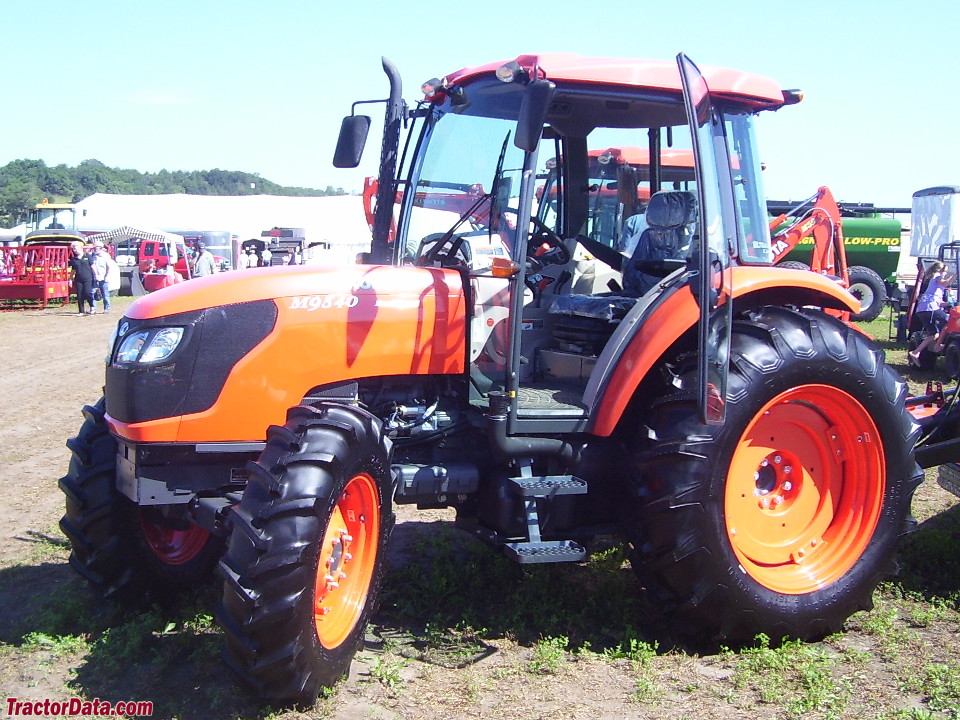

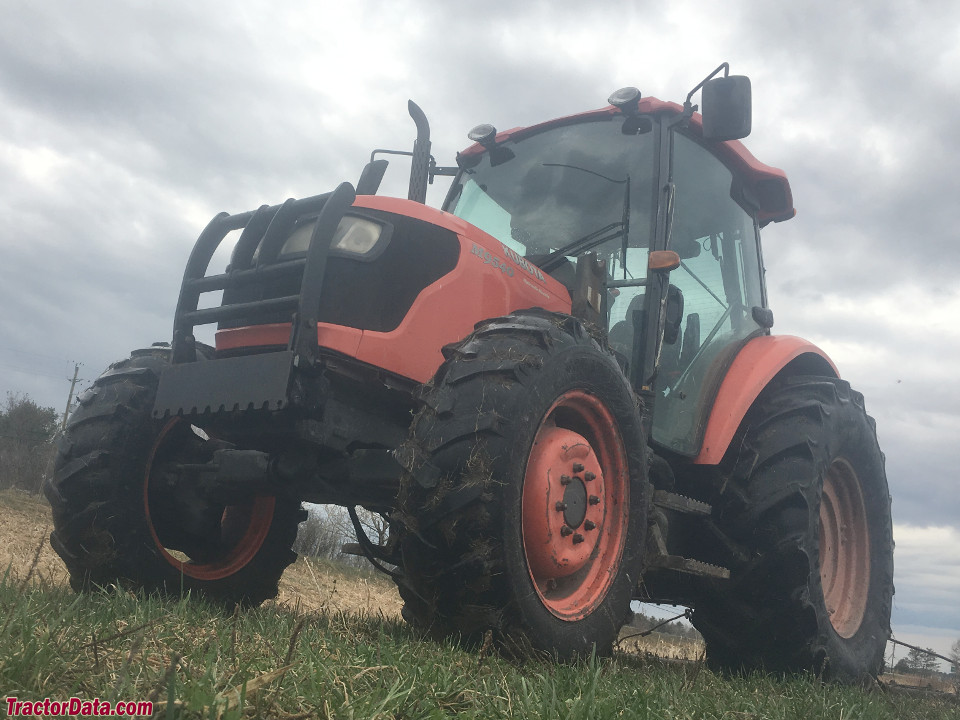

Kubota M9540

Name: Kubota M9540
Brand: Kubota

Kubota M9540 — M40 Series · 95 hp. Reference specifications; pending source verification.

The Kubota M9540 is a tractor with a rated power of 95 hp, positioned within a mid-range power output for its class. It was manufactured from 2006 to 2013. The machine features a 4-cylinder turbocharged diesel liquid-cooled engine, coupled with four-wheel drive and a powershift transmission. It has an operating weight of 5095 to 6175 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

95 hp

Max power

95 hp

Weight

5095 to 6175 pounds

Catalogue coverage

Variants represented

Richest spec table

155 rows

Recorded power

95 hp

Transmissions

8-speed partially synchronized

Production years

2006-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Original price$32,160 (2011)Reference

Two- or four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post foldable ROPS with optional canopy. Ultra Grand Cab optional with heat and air-conditioningReference

Variants

M9540F2WD ROPS sync-shuttleReference

M9540FC2WD cab sync-shuttleReference

M9540DT4WD ROPS sync-shuttleReference

M9540HD4WD ROPS hyd-shuttleReference

M9540HD124WD ROPS 12-speedReference

M9540DTC4WD cab sync-shuttleReference

M9540HDC4WD cab hyd-shuttleReference

M9540HDC124WD cab 12-speedReference

M9540HDC244WD cab 24-speedReference

M9540HFL2WD low-profileReference

M9450HDL4WD low-profileReference

Engine

Kubota 3.8L 4-cyl dieselReference

Engine (net)70.8 kWReference

Kubota V3800-DI-TReference

turbocharged dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement3.8 LReference

Bore/Stroke100 x 120 mmReference

EmissionsTier IIIReference

Emission controlEGRReference

Power (net)70.8 kWReference

Air cleanerdual element dryReference

Rated RPM2600Reference

Starter volts12Reference

Oil capacity10.7 LReference

Coolant capacity9.0 LReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,600 RPMReference

Emissions complianceTier III | EGRReference

Bore and stroke3.94x4.72 inchesReference

Cooling systemliquid-cooledReference

Transmission

8-speed partially synchronizedReference

8-speed power shuttleReference

12-speed power shuttleReference

24-speed partial power shiftReference

TransmissionSynchro-ShuttleReference

Typepartially synchronizedReference

Gears8 forward and reverseReference

Clutchdry plateReference

Oil capacity53.9 LReference

Four gears with high and low ranges. Gears and forward-reverse shuttle shifting are synchronized.Reference

TransmissionHydraulic-ShuttleReference

Typepower shuttleReference

Clutchwet discsReference

Four gears with high and low ranges. Clutchless power shuttle shifting between forward and reverse. Gears (1-4) are synchronized.Reference

Gears12 forward and reverseReference

Six gears with high and low ranges. Clutchless power shuttle shifting between forward and reverse. Gears (1-6) are synchronized.Reference

Typepartial power shiftReference

Gears24 forward and reverseReference

The 24-speed transmission adds Dual Speed to the 12-speed hydraulic shuttle. Push-button power shift between the Dual Speed high and low. Clutchless power shuttle shifting between forward and reverse. The gears (1-6) are synchronized for on-the-move shifting with the clutch.Reference

Transmission TypeSync ShuttleReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)62.6 kWReference

Hydraulic system53.9 LReference

Typeopen centerReference

Capacity53.9 LReference

Valves1 to 3Reference

Pump flow64.3 lpmReference

Total flow87.4 lpmReference

Steering flow23.1 lpmReference

Rear TypeIIReference

Rear lift (at ends)2499 kgReference

Rear lift (at ends)3900 kgReference

Rear lift (at 24"/610mm)2100 kgReference

Rear lift (at 24"/610mm)3299 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Rear PTO Type540/1000Reference

Engine RPM540@2205Reference

Capacities

ROPS Fuel90.1 LReference

Cab Fuel110.1 LReference

Front axle9.5 LReference

Fuel tank110.2 LReference

Crankcase oil volume11.3 qtsReference

Dimensions

Wheelbase225 cmReference

Weight5095 to 6175 poundsReference

Front tire7.50-18Reference

2WD Rear tire18.4-30Reference

2WD Standard tires (ag)Front: 7.50-18. Rear: 18.4-30Reference

4WD Standard tires (ag)Front: 12.4-24. Rear: 18.4-30Reference

2WD Optional tires (ag)Front: 7.50-18. Rear: 18.4R30Reference

2WD Optional tires (ag)Front: 9.5L-15. Rear: 18.4-26Reference

2WD Optional tires (ag)Front: 10.00-16. Rear: 16.9-34Reference

2WD Optional tires (ag)Front: 10.00-16. Rear: 18.4-30Reference

2WD Optional tires (ag)Front: 10.00-16. Rear: 18.4R30Reference

4WD Optional tires (ag)Front: 9.5-22. Rear: 16.9-24Reference

4WD Optional tires (ag)Front: 11.2-24. Rear: 18.4-28Reference

4WD Optional tires (ag)Front: 12.4R24. Rear: 18.4R30Reference

2WD Lawn/turf rear18.4-26Reference

4WD Industrial front12.5/80-18Reference

4WD Industrial rear19.5L-24Reference

2WD Length388 cmReference

4WD Length375 cmReference

Width198 cmReference

Height (ROPS)248 cmReference

Height (cab)259 cmReference

2WD Clearance (front axle)51 cmReference

4WD Clearance (front axle)50 cmReference

2WD Front tread144 to 203 cmReference

4WD Front tread151 to 162 cmReference

Rear tread151 to 192 cmReference

2311 kgReference

2499 kgReference

2610 kgReference

2800 kgReference

Kubota M9540 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

ROPS Charging amps45Reference

Cab Charging amps60Reference

Cab Charging amps80Reference

Battery CCA900Reference

Battery volts12Reference

Total cold cranking amps900 CCAReference

Attachment overview

Kubota LA1353 Height Position loaderReference

Kubota LA1353 Power Position loaderReference

BackhoeReference

Kubota M4011 Backhoe

Backhoe typeKubota M4011 BackhoeReference

General

Make & ModelKubotaReference

SCV controlJoystickReference

Rollover protective structureTwo-post foldable ROPS with optional canopy.Reference

Power

Max Power95 hpReference

PTO

PTO Power84 hpReference

Rear PTO PowerAvailableReference

Engine Speed on Rear PTO speed540@2,205Reference

Steering & brakes

BrakesHydraulic wet discReference

Steering typePower steeringReference

Hydraulics

Pump Rated Output (total)23.1 gpmReference

Hydraulics Typeopen centerReference

Remote Valves1 to 3 ValvesReference

Steering & Implements flow6.1 gpm (17 gpm)Reference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch maximum lift capacity3,900.9 kgReference

Dimensions & weight

Height Over Cab259.1 cmReference

Height Over ROPS248.9 cmReference

Overall Length388.6 cmReference

Overall Width198.1 cmReference

Front axle clearanceOption 1: 20.4 inches\\nOption 2: 19.7 inchesReference

Overall weight2,800.9 kgReference

Wheels & tyres

Rear Wheel Type18.4-28Reference

Rear wheel tread range59.8 to 75.6 inchesReference

Front Wheel Type7.50-18Reference

Front Wheel tread range56.7 to 80.3 inchesReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
