Tractor · 2007Unverified

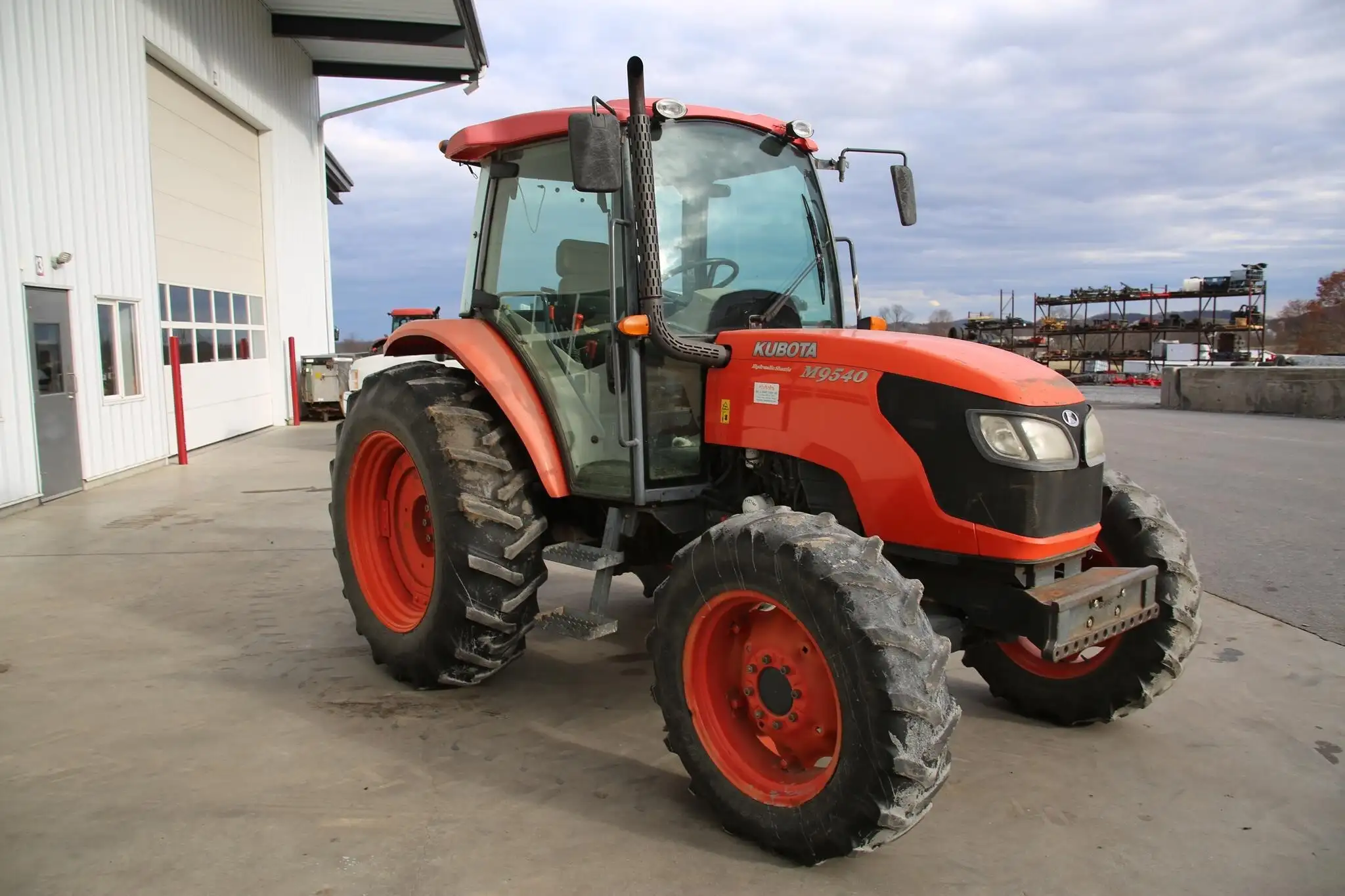

Kubota M9540 Low Profile
Kubota M9540 Low Profile · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
4895 to 5314 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Original price$33,847 (2011)Reference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Differential lockmechanical rear standardReference
Differential lockfront limited-slip (4WD)Reference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Two-post foldable ROPS. Optional canopy.Reference
Variants
M9540utility chassisReference
M9540HFL2WDReference
M9540HDL4WDReference
Engine
Kubota 3.8L 4-cyl dieselReference
Engine (net)70.8 kWReference
Kubota V3800-DI-TReference
turbocharged dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement3.8 LReference
Power (net)70.8 kWReference
Air cleanerdual dry elementReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity10.7 LReference
Coolant capacity9.0 LReference
Transmission
12-speedReference
Gears12 forward and reverseReference
Clutchwet discReference
Oil capacity53.9 LReference
Six speeds in two ranges with hydraulic shuttle.Reference
PTO & Hydraulics
PTO (claimed)62.6 kWReference
Hydraulic system53.9 LReference
Typeopen centerReference
Capacity53.9 LReference
Valves1 to 3Reference
Pump flow64.3 lpmReference
Total flow87.4 lpmReference
Steering flow23.1 lpmReference
Rear TypeIIReference
Rear lift (at ends)2522 kgReference
Rear lift (at 24"/610mm)2100 kgReference
Rear lift (at 24"/610mm)3200 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (optional)Reference
Engine RPM540@2205Reference
Capacities
Fuel90.1 LReference
Front axle10.5 LReference
Dimensions
Wheelbase225 cmReference
Weight4895 to 5314 poundsReference
Front tire27x9.5-15Reference
Rear tire16.9-24 (2WD)Reference
Standard tires (ag)Front: 27x9.5-15. Rear: 16.9-24 (2WD)Reference
Standard tires (ag)Front: 9.5-20. Rear: 16.9-24 (4WD)Reference
Optional tires (ag)Front: 9.5L-15. Rear: 18.4-26 (2WD)Reference
Optional tires (ag)Front: 9.5-24. Rear: 18.4-26 (4WD)Reference
Optional tires (ag)Front: 12.5/80-18. Rear: 16.9-24 (4WD)Reference
Lawn/turf rear18.4-26 (2WD)Reference
Lawn/turf rear19.5L-24 (2WD)Reference
Industrial front12.5/80 (4WD)Reference
Industrial rear19.5L-24 (4WD)Reference
Length388 cmReference
Length375 cmReference
Width196 cmReference
Height (ROPS)230 cmReference
Height (ROPS)168 cmReference
Weight2220 kgReference
Weight2410 kgReference
Clearance (front axle)41 cmReference
Front tread151 to 162 cmReference
Rear tread150 to 189 cmReference
Kubota M9540 Low Profile attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Charging amps80 (optional)Reference
Battery CCA900Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Kubota M4011 Backhoe
Backhoe typeKubota M4011 BackhoeReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
