Tractor · 1991Unverified

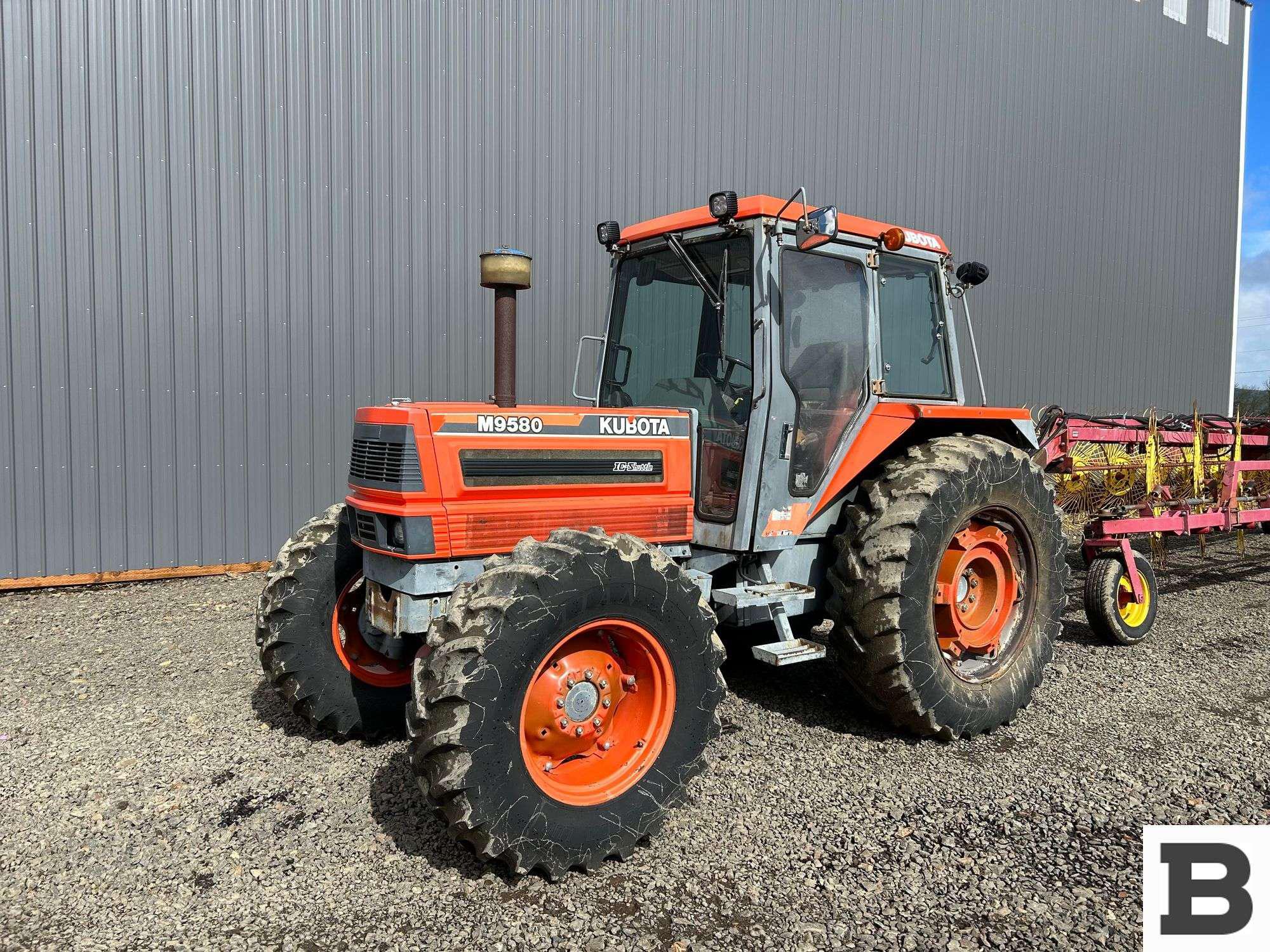

Kubota M9580

Name: Kubota M9580
Brand: Kubota

Kubota M9580 — M80 Series · 100 hp. Reference specifications; pending source verification.

The Kubota M9580 tractor is rated at approximately 100 hp, a mid-range power output for its class. Produced between 1991 and 1999, it features a 4-cylinder turbocharged diesel liquid-cooled engine paired with a 24-speed gearbox and four-wheel drive. The tractor's listed operating weight is 3850 kg, and it is suited to operating on areas of between 200 and 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

100 hp

Weight

3850 kg

Catalogue coverage

Variants represented

Richest spec table

56 rows

Recorded power

100 hp

Recorded weight

3850 kg

Transmissions

24-speed power shuttle

Production years

1991-1999

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Four-post ROPS. Cab optional.Reference

Engine

Kubota 4.7L 4-cyl dieselReference

Fuel tank120.0 LReference

Engine (net)74.6 kWReference

Kubota V4702-TAReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.7 LReference

Bore/Stroke109 x 125 mmReference

Power (net)74.6 kWReference

Fuel systemdirect injectionReference

Rated RPM2400Reference

StarterelectricReference

Starter volts12Reference

Transmission

24-speed power shuttleReference

Typepower shuttleReference

Gears24 forward and reverseReference

Six gears in two ranges with power shuttle and push-button high-low switch.Reference

PTO & Hydraulics

PTO (claimed)67.9 kWReference

Typeopen centerReference

Valves2 or 3Reference

Pump flow79.9 lpmReference

Total flow112.0 lpmReference

Steering flow32.2 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift (at 24"/610mm)2634 kgReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase244 cmReference

Weight3850 kgReference

Front tire14.9-24Reference

Rear tire18.4-34Reference

Standard tires (ag)Front: 14.9-24. Rear: 18.4-34Reference

Optional tires (ag)Front: 13.6-24. Rear: 18.4-34Reference

Optional tires (ag)Front: 12.4-24. Rear: 16.9-34Reference

Optional tires (ag)Front: 12.4-24. Rear: 15.5-38Reference

Length410 cmReference

Width201 cmReference

Height (cab)265 cmReference

Ground clearance61 cmReference

Front tread164 to 173 cmReference

Rear tread150 to 211 cmReference

Kubota M9580 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Attachment overview

Kubota M1275 loaderReference

Kubota M1410 loaderReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
