Tractor · 2005Unverified

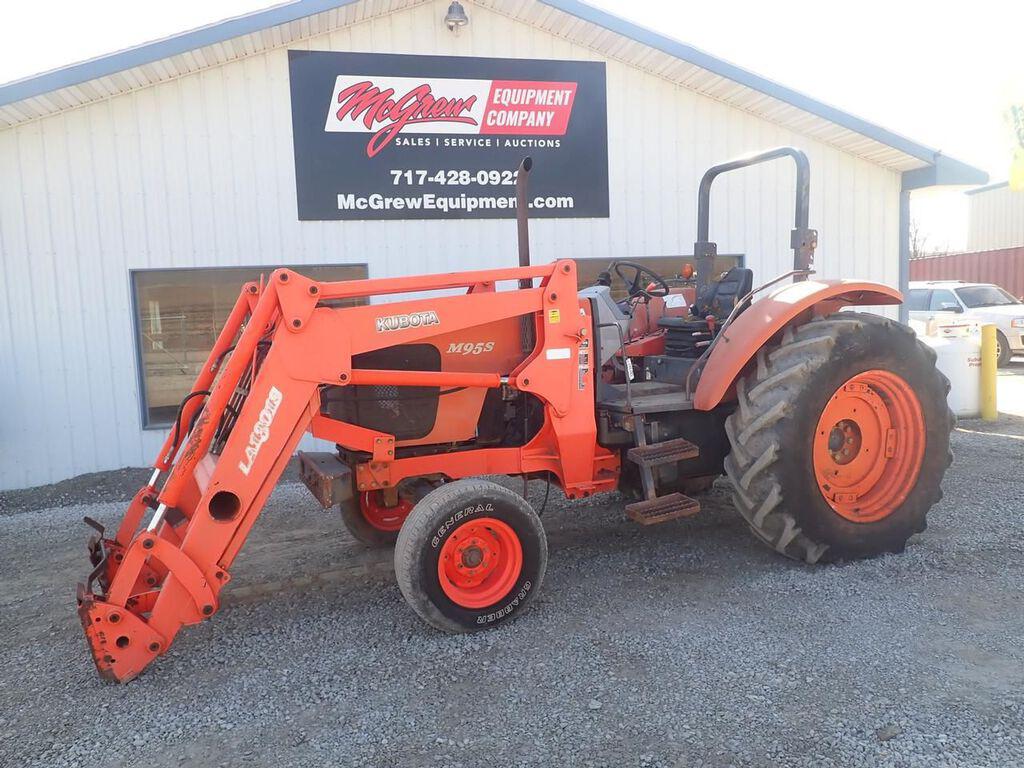

Kubota M95S

Name: Kubota M95S
Brand: Kubota

Kubota M95S · 95 hp. Reference specifications; pending source verification.

The Kubota M95S is a tractor model with a rated power output of 95 hp, placing it within the mid-range of its class. It was manufactured from 2005 to 2006. The tractor features a 4-cylinder turbocharged diesel liquid-cooled engine, paired with a mechanical front-wheel drive system and a hydrostatic transmission. Its operating weight is listed as 6261 to 7628 pounds, and it is suitable for operations covering areas of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

95 hp

Weight

6261 to 7628 pounds

Catalogue coverage

Variants represented

Richest spec table

59 rows

Recorded power

95 hp

Recorded weight

2839 kg

Transmissions

32-speed

Production years

2005-2006

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

SteeringHydrostatic power steeringReference

Wet disc brakesReference

Cab optional with heat and air-conditioningReference

Variants

M95XIntelliShiftReference

M95H2WD ROPSReference

M95DS-F4WD ROPSReference

M95DSC4WD cabReference

Engine

Kubota 3.8L 4-cyl dieselReference

Fuel tank174.1 LReference

Engine (net)70.8 kWReference

Kubota V3800-DI-TReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.8 LReference

Bore/Stroke100 x 120 mmReference

Power (net)70.8 kWReference

Air cleanerdry, dual elementReference

Rated RPM2600Reference

Starter volts12Reference

Transmission

32-speedReference

48-speedReference

16-speedReference

TransmissionSwing Shift PlusReference

Gears32 forward and reverseReference

TransmissionSwing Shift Plus/creeperReference

Gears48 forward and reverseReference

TransmissionSwing ShiftReference

Gears16 forward and reverseReference

PTO & Hydraulics

PTO (claimed)62.6 kWReference

Valves1 to 3Reference

Pump flow65.1 lpmReference

Rear TypeIIReference

Rear lift (at 24"/610mm)2100 kgReference

Rear lift (at 24"/610mm)3397 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Rear PTO Type540/1000 (optional)Reference

Dimensions

Wheelbase243 cmReference

Weight6261 to 7628 poundsReference

Front tire12.4-24Reference

Rear tire18.4-30Reference

Ag front12.4-24Reference

Ag rear18.4-30Reference

Length411 cmReference

Width200 cmReference

Height (cab)269 cmReference

Weight2839 kgReference

Weight3460 kgReference

Ground clearance43 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps45 (ROPS)Reference

Charging amps60 (cab)Reference

Charging amps80 (optional)Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
