Tractor · 2005Unverified
Kubota M95X
Kubota M95X — Row-Crop tractor · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
4105 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Row-Crop tractorReference
Original price$52,719 (2011)Reference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Cab standard with heat and air-conditioner.Reference
Engine
Kubota 3.8L 4-cyl dieselReference
Engine (net)70.8 kWReference
Kubota V3800TE2Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke100 x 120 mmReference
Power (net)70.8 kWReference
Air cleanerdual 8-inch dry elementReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity10.7 LReference
Coolant capacity9.1 LReference
Transmission
16-speed partial power shiftReference
TransmissionIntelli-ShiftReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Clutchelectro-hydraulic wet discReference
Oil capacity62.8 LReference
PTO & Hydraulics
PTO (claimed)59.7 kWReference
Hydraulic system62.8 LReference
Typeopen centerReference
Capacity62.8 LReference
Pressure196.1 barReference
Valves2 to 4Reference
Pump flow68.5 lpmReference
Total flow118.5 lpmReference
Steering flow59.8 lpmReference
Rear TypeIIReference
Rear lift (at ends)2634 kgReference
Rear lift (at 24"/610mm)2362 kgReference
Rear lift (at 24"/610mm)4285 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2205Reference
Engine RPM1000@2210Reference
Capacities
Fuel190.0 LReference
Front axle10.5 LReference
Dimensions
Wheelbase242 cmReference
Weight4105 kgReference
Front tire12.4R24Reference
Rear tire18.4R30Reference
Standard tires (ag)Front: 12.4R24. Rear: 18.4R30Reference
Length415 cmReference
Width212 cmReference
Height263 cmReference
Ground clearance58 cmReference
Front tread152 to 166 cmReference
Front tread203 cmReference
Rear tread152 to 203 cmReference

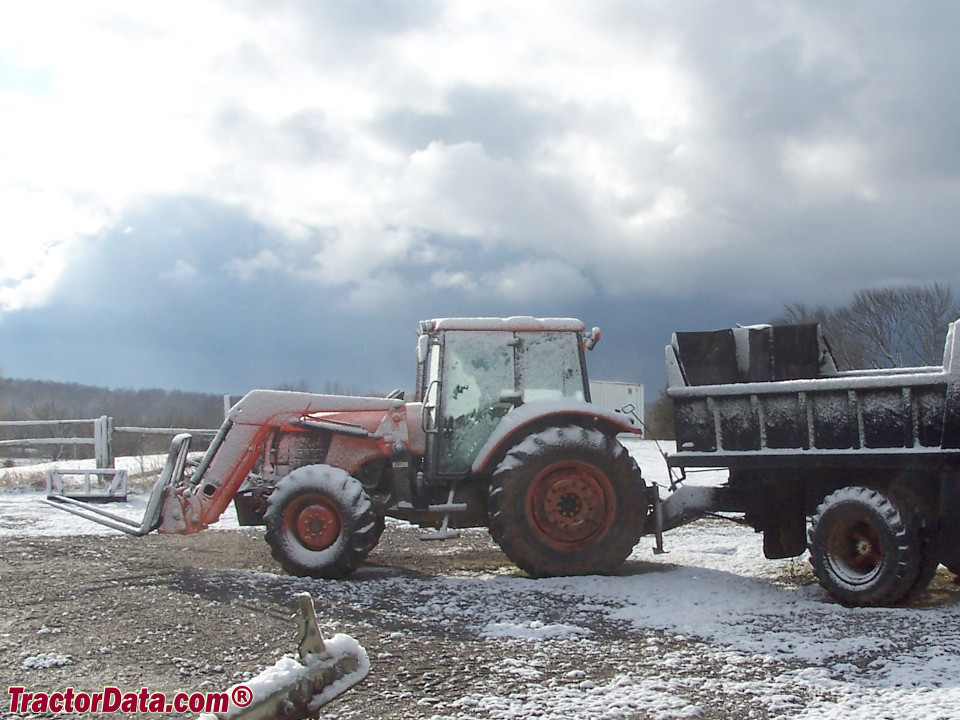

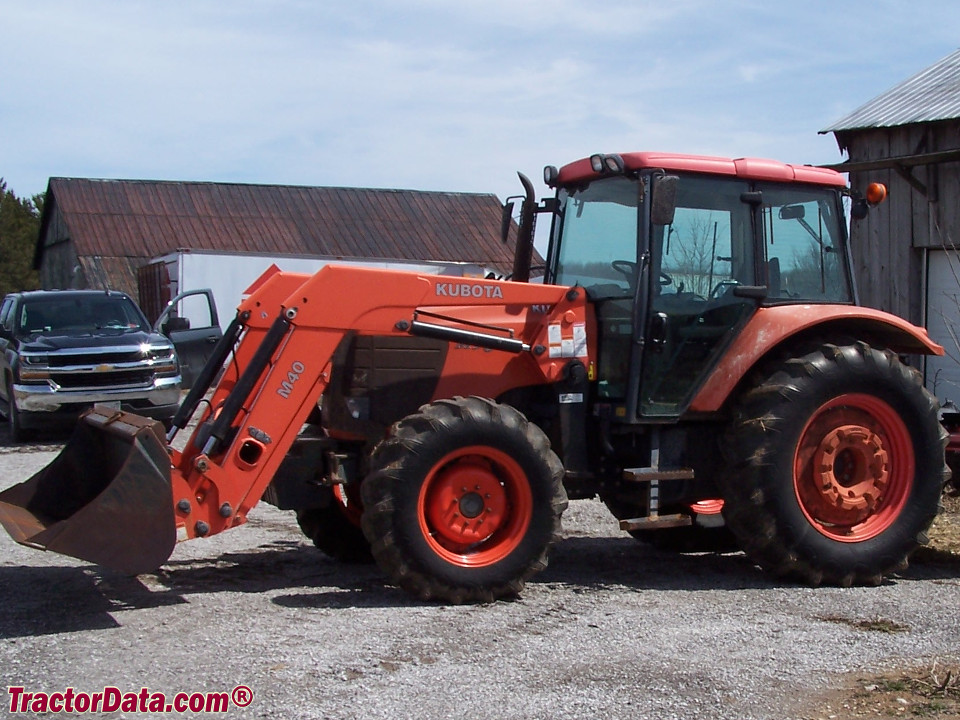

Kubota M95X attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps80Reference
Battery CCA900Reference
Battery volts12Reference
Battery AH100Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
