Tractor · 2007Unverified

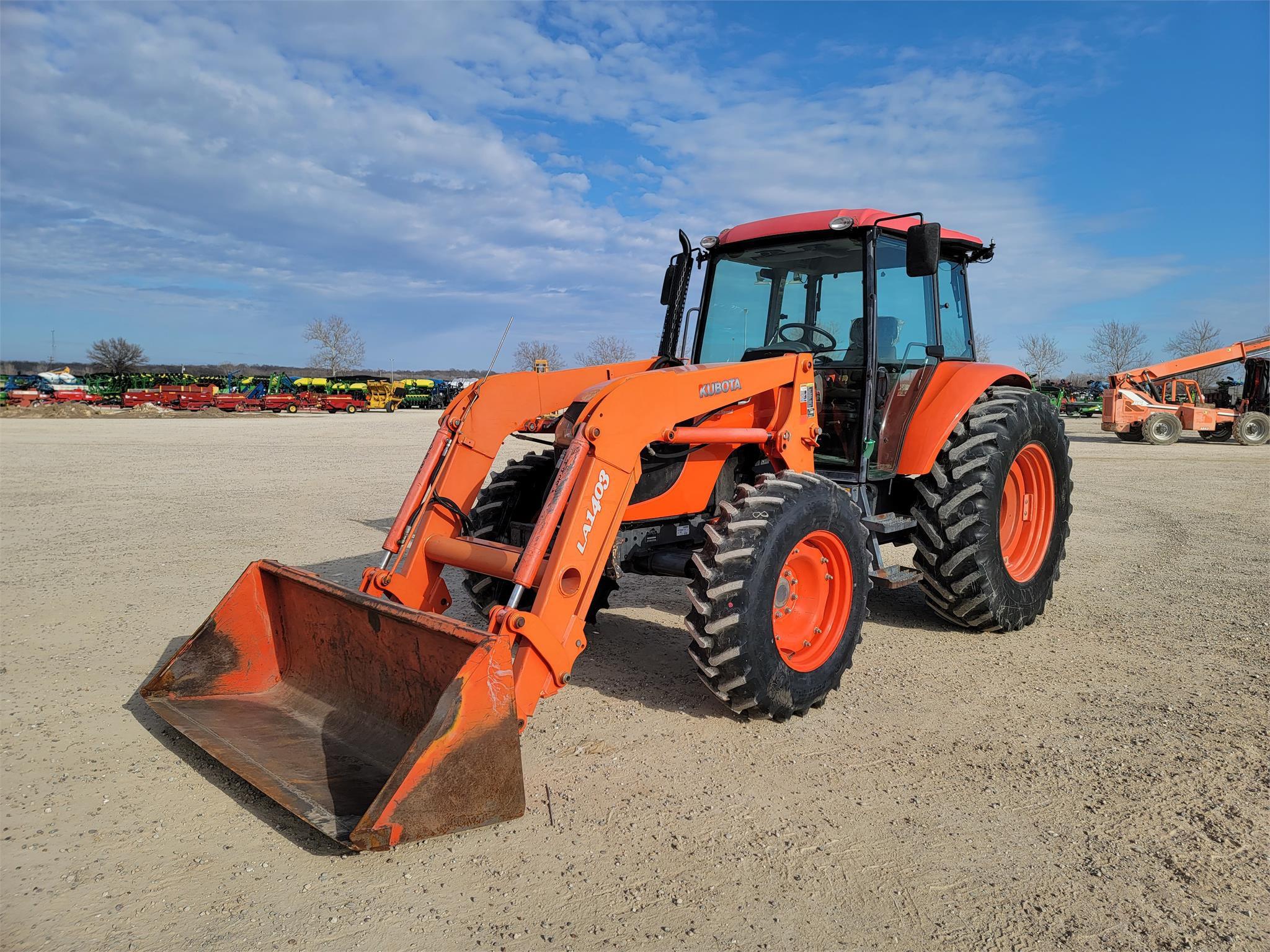

Kubota M96S
Kubota M96S — Row-Crop tractor · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
6261 to 8025 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Row-Crop tractorReference
Original price$31,673 (2011)Reference
Two- or four-wheel driveReference
Differential lockmechanical rear or front-and-rear (4WD) (2WD)Reference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Two-post foldable ROPS with optional canopy. Cab with heat and air-conditioning optional.Reference
Variants
M96SH2WD ROPS 16-speedReference
M96SDS4WD ROPS 32-speedReference
M96SDSC4WD cab 32-speedReference
M96SHDMmudderReference
Engine
Kubota 3.8L 4-cyl dieselReference
Engine (net)70.8 kWReference
Kubota V3800-DI-TReference
turbocharged dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement3.8 LReference
EmissionsTier IIIReference
Emission controlEGRReference
Power (net)70.8 kWReference
Air cleanerdual dry elementsReference
Rated RPM2600Reference
Starter volts12Reference
Oil capacity10.7 LReference
Coolant capacity9.1 LReference
Transmission
16-speed partially synchronizedReference
32-speed partial power shiftReference
24-speed partially synchronizedReference
48-speed partial power shiftReference
TransmissionSwing ShiftReference
Typepartially synchronizedReference
Gears16 forward and reverseReference
Clutchwet discReference
Oil capacity62.8 LReference
Four synchronized gears in two synchronized ranges plus additional non-synchronized high-low range. Hydraulic shuttle.Reference
TransmissionSwing Shift Plus Dual SpeedReference
Typepartial power shiftReference
Gears32 forward and reverseReference
Dual Speed adds a push-button power shift at each gear in the basic Swing Shift transmission.Reference
TransmissionSwing Shift with creeperReference
Gears24 forward and reverseReference
TransmissionSwing Shift Plus with creeperReference
Gears48 forward and reverseReference
PTO & Hydraulics
PTO (claimed)62.6 kWReference
Hydraulic system62.8 LReference
Typeopen centerReference
Capacity62.8 LReference
Pressure196.1 barReference
Valves1 to 3Reference
Pump flow65.1 lpmReference
Total flow110.9 lpmReference
Steering flow45.8 lpmReference
Rear TypeIIReference
Rear lift (at ends)2522 kgReference
Rear lift (at 24"/610mm)2100 kgReference
Rear lift (at 24"/610mm)3397 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (optional)Reference
Engine RPM540@2205Reference
Capacities
Fuel174.9 LReference
Dimensions
Wheelbase243 cmReference
Weight6261 to 8025 poundsReference
Front tire10.00-16Reference
Rear tire18.4-30 (2WD)Reference
Standard tires (ag)Front: 10.00-16. Rear: 18.4-30 (2WD)Reference
Standard tires (ag)Front: 12.4-24. Rear: 18.4-30 (4WD)Reference
Optional tires (ag)Front: 9.5L-15. Rear: 16.9-34 (2WD)Reference
Optional tires (ag)Front: 10.00-16. Rear: 18.4R34 (2WD)Reference
Optional tires (ag)Front: 10.00-16. Rear: 18.4-34 (2WD)Reference
Length414 cmReference
Width231 cmReference
Width236 cmReference
Clearance (drawbar)38 cmReference
Front tread153 to 203 cmReference
Front tread151 to 162 cmReference
Rear tread171 to 201 cmReference
Rear tread170 to 205 cmReference
2839 kgReference
3370 kgReference
3640 kgReference
Kubota M96S attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45 (ROPS)Reference
Charging amps60 (cab)Reference
Battery CCA900Reference
Battery volts12Reference
Attachment overview
Kubota LA1403 Height Position loaderReference
Kubota LA1403 Power Position loaderReference
Kubota M96S Height
ROPS261 cmReference
ROPS200 cmReference
Cab264 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
