Tractor · 2013Unverified
Kubota M9960
Kubota M9960 — M60 Series · 100 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Weight
5535 to 6810 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
During the Nebraska performance test, the M9960 was unable to lift the advertised 7275 pounds on the three-point lift. Actual lift was 6192 pounds.Reference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Two-post foldable ROPS. Optional Ultra Grand Cab with air-conditioning. Optional air-ride seat and AM/FM/CD/MP3 sound system.Reference
Variants
M9960HF2WD ROPS 8-speedReference
M9960HFC2WD Cab 8-speedReference
M9960HD4WD ROPS 8-speedReference
M9960HDC4WD Cab 8-speedReference
M9960HD124WD ROPS 12-speedReference
M9960HDC124WD Cab 12-speedReference
M9960HDC244WD Cab 24-speedReference
Engine
Kubota 3.8L 4-cyl dieselReference
ROPS Fuel tank90.1 LReference
Cab Fuel tank110.1 LReference
Engine (net)74.6 kWReference
Kubota V3800-CR-TIE4Reference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement3.8 LReference
Bore/Stroke100 x 120 mmReference
EmissionsInterim Tier IVReference
Emission controlexhaust gas recirculation (EGR)Reference
Power (net)74.6 kWReference
Fuel systemcommon rail direct injectionReference
Rated RPM2400 (ROPS)Reference
Rated RPM2600 (cab)Reference
StarterelectricReference
Starter volts12Reference
Power at rated engine speed67.9 kWReference
Transmission
8-speed power shuttleReference
12-speedReference
24-speed 2-speed power shiftReference
Typepower shuttleReference
Gears8 forward and reverseReference
Clutchwet discsReference
Four synchronized gears (1-4) in two ranges (low/high).Reference
Transmissionpower shuttleReference
Gears12 forward and reverseReference
Six synchronized gears (1-6) in two ranges (low/high).Reference
Type2-speed power shiftReference
Gears24 forward and reverseReference
Six synchronized gears (1-6) in two ranges (low/high) with two-speed power shift.Reference
PTO & Hydraulics
PTO (claimed)66.4 kWReference
PTO (tested)67.9 kWReference
Valves1 to 3Reference
ROPS Pump flow60.2 lpmReference
Cab Pump flow64.3 lpmReference
Rear TypeIIReference
Controlposition control and top-link draft sensingReference
Rear lift (at 24"/610mm)2100 kgReference
Rear lift (at 24"/610mm)3299 kgReference
Rear Armstelescopic lower link endsReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375Reference
Rear PTO Type540/540E (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Power at rated PTO speed64.8 kWReference
Dimensions
ROPS Wheelbase228 cmReference
Cab Wheelbase225 cmReference
Weight5535 to 6810 poundsReference
Front tire7.50-18Reference
Rear tire18.4-30 (2WD)Reference
Standard tires (ag)Front: 7.50-18. Rear: 18.4-30 (2WD)Reference
Standard tires (ag)Front: 12.4-24. Rear: 18.4-30 (4WD)Reference
2WD Length388 cmReference
4WD Length375 cmReference
Width198 cmReference
Width200 cmReference
Height (ROPS)253 cmReference
Height (cab)256 cmReference
2WD Clearance (front axle)52 cmReference
4WD Clearance (front axle)50 cmReference
Flange rear axleReference
Front tread144 to 203 cmReference
Front tread151 to 162 cmReference
Rear tread151 to 192 cmReference
2510 kgReference
2698 kgReference
2900 kgReference
3089 kgReference
Kubota M9960 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps45Reference
Cab Charging amps60Reference
Optional Charging amps100Reference
Battery volts12Reference
Attachment overview

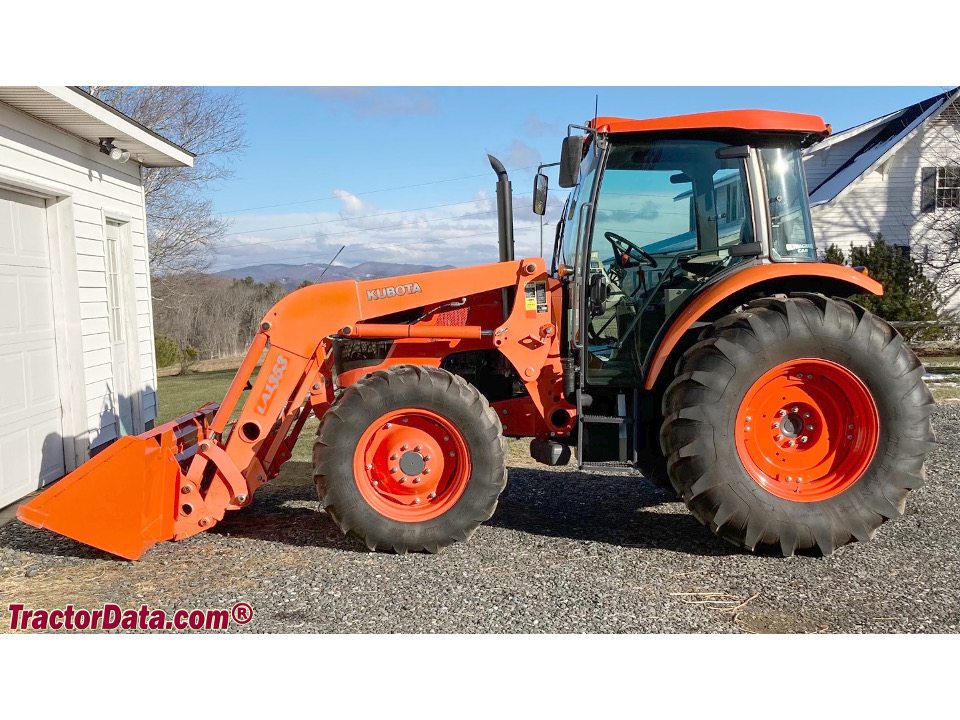

Kubota LA1353A loaderReference
Test results
Diesel 24-speed 4WDJune 6 - 13, 2013Link: Nebraska Tractor Test 2065 fileReference
PTO performanceReference
Fuel use21.6 l/hourReference
Fuel use18.9 l/hourReference
Speeds
With 480/70R34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
