Search/Tractor/Kubota/MD107
Tractor · 1995Unverified

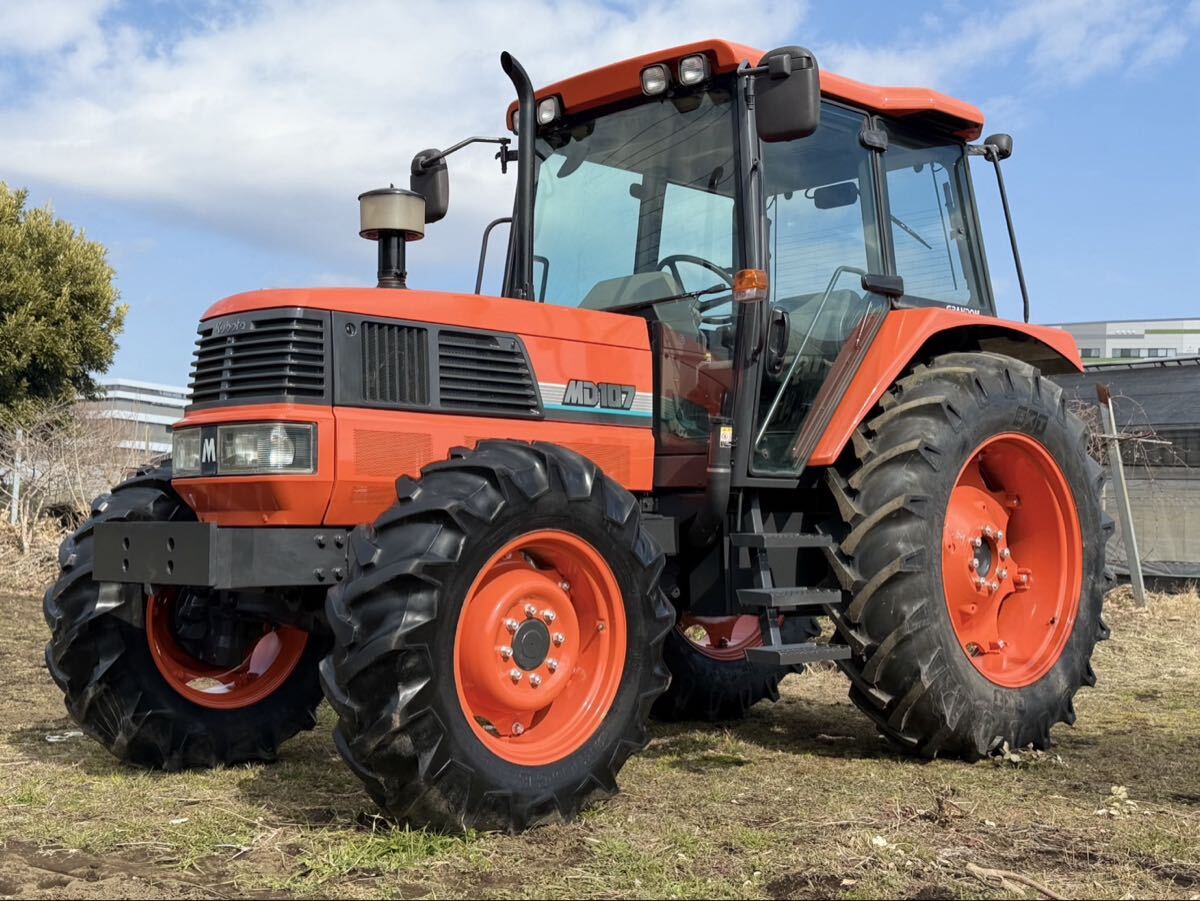

Kubota MD107

Kubota MD107 — MD Series · 98 hp. Reference specifications; pending source verification.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
98 hp
Weight
3860 kg
Hover a source tag to verify

Overview

ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Cab standard with air-conditioning.Reference

Engine

Kubota 5.8L 5-cyl dieselReference
Fuel tank149.9 LReference
Engine78.7 kWReference
Kubota F5802Reference
dieselReference
5-cylinderReference
liquid-cooledReference
Displacement5.8 LReference
Bore/Stroke109 x 125 mmReference
Power78.7 kWReference
Rated RPM2400Reference
Torque391.3 NmReference
Torque RPM1300Reference
StarterelectricReference
Starter volts12Reference
Oil capacity20.8 LReference
Coolant capacity14.4 LReference

Transmission

16-speedReference
24-speed creeperReference
16-speed partial power shiftReference
Gears16 forward and reverseReference
Four gears (1-4) in two ranges (low/high) with additional two-range shift.Reference
TypecreeperReference
Gears24 forward and reverseReference
Optional creeper range added to basic transmission.Reference
Typepartial power shiftReference
Eight gears in two ranges. Optional creeper range available.Reference

PTO & Hydraulics

PTO (claimed)73.1 kWReference
Pump flow65.9 lpmReference
Rear TypeIIReference
Rear lift2545 kgReference
Rear lift3109 kgReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2035Reference
Engine RPM1000@2211Reference

Dimensions

Wheelbase256 cmReference
Weight3860 kgReference
Front tire13.6-24Reference
Rear tire16.9-38Reference
Standard tires (ag)Front: 13.6-24. Rear: 16.9-38Reference
Length421 cmReference
Width203 cmReference
Height269 cmReference
Ground clearance50 cmReference
Front tread164/173 cmReference
Rear tread151 to 199 cmReference

Electrical

GroundnegativeReference
Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
