Tractor · 1995Unverified

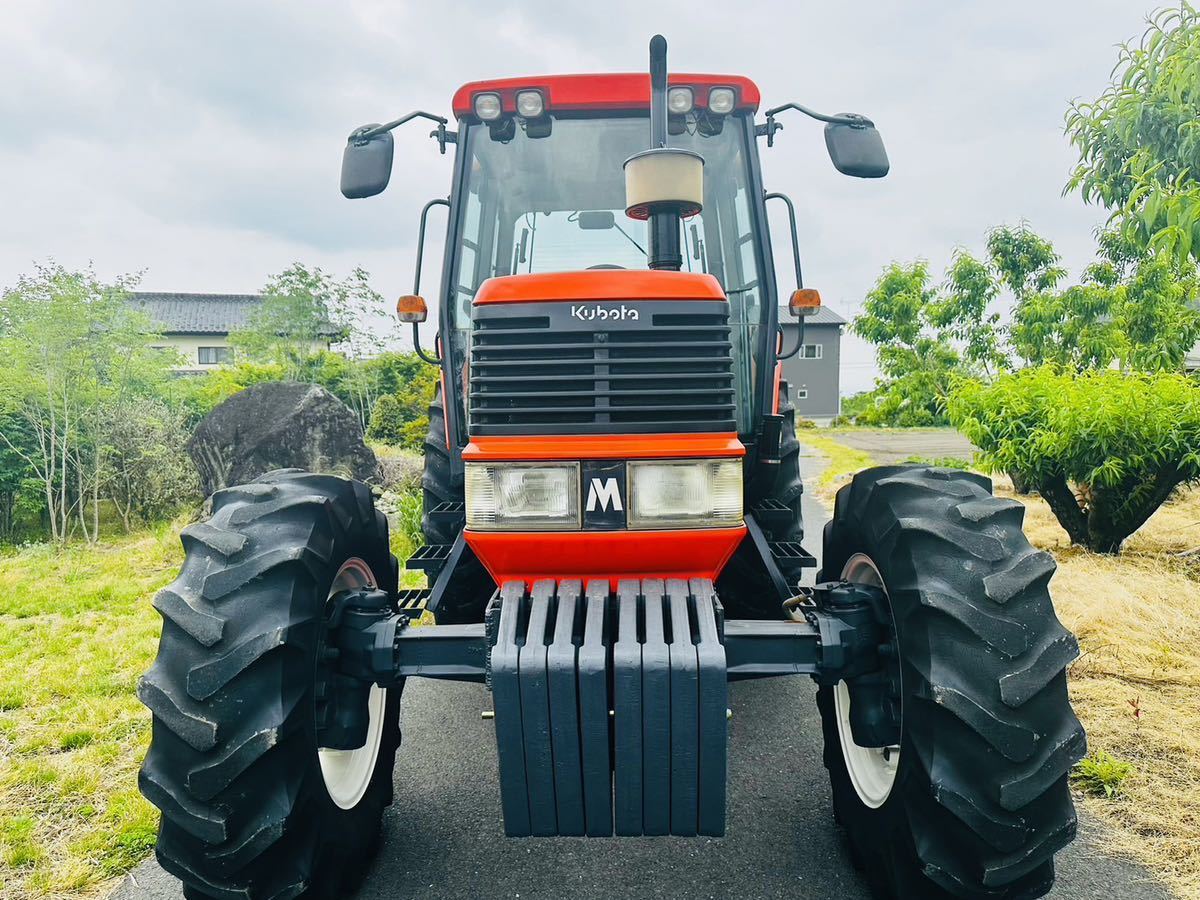

Kubota MD117

Name: Kubota MD117
Brand: Kubota

Kubota MD117 — MD Series · 103 hp. Reference specifications; pending source verification.

The Kubota MD117 is a tractor with a rated output of 103 hp, placing it in the middle of its class in terms of power. It was manufactured from 1995 to 2001. The tractor features a 5-cylinder diesel liquid-cooled engine, driving through a four-wheel drive system with a powershift transmission. It has a listed weight of 3999 kg and is suitable for tasks requiring approximately 200-800 acres of land.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

103 hp

Weight

3999 kg

Catalogue coverage

Variants represented

Richest spec table

52 rows

Recorded power

103 hp

Recorded weight

3999 kg

Transmissions

16-speed

Production years

1995-2001

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Four-wheel driveReference

Cab standard with air-conditioning.Reference

Engine

Kubota 5.8L 5-cyl dieselReference

Fuel tank149.9 LReference

Engine84.6 kWReference

Kubota F5802Reference

dieselReference

5-cylinderReference

liquid-cooledReference

Displacement5.8 LReference

Bore/Stroke109 x 125 mmReference

Power84.6 kWReference

Rated RPM2400Reference

Torque422.7 NmReference

Torque RPM1200Reference

StarterelectricReference

Starter volts12Reference

Oil capacity20.8 LReference

Coolant capacity14.9 LReference

Transmission

16-speedReference

24-speed creeperReference

16-speed partial power shiftReference

Gears16 forward and reverseReference

Four gears (1-4) in two ranges (low/high) with additional two-range shift.Reference

TypecreeperReference

Gears24 forward and reverseReference

Optional creeper range added to basic transmission.Reference

Typepartial power shiftReference

Eight gears in two ranges. Optional creeper range available.Reference

PTO & Hydraulics

PTO (claimed)76.9 kWReference

Pump flow65.9 lpmReference

Rear TypeIIReference

Rear lift2545 kgReference

Rear lift3109 kgReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@2035Reference

Engine RPM1000@2211Reference

Dimensions

Wheelbase268 cmReference

Weight3999 kgReference

Front tire14.9-24Reference

Rear tire18.4-38Reference

Standard tires (ag)Front: 14.9-24. Rear: 18.4-38Reference

Length436 cmReference

Width210 cmReference

Height272 cmReference

Ground clearance52 cmReference

Front tread164/173 cmReference

Rear tread151 to 199 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
