Tractor · 1995Unverified

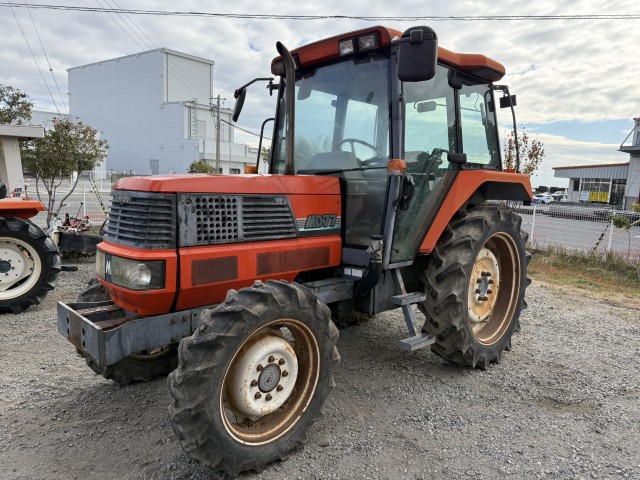

Kubota MD77

Name: Kubota MD77
Brand: Kubota

Kubota MD77 — MD Series · 72 hp. Reference specifications; pending source verification.

The Kubota MD77 is a mid-range tractor model with a rated engine power of approximately 72 hp. It was manufactured from 1995 to 2001. This model features a 4-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission, with an operating weight of between 6658 and 7055 pounds. It is suitable for operations covering areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

72 hp

Weight

6658 to 7055 pounds

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

72 hp

Recorded weight

3020 kg

Transmissions

16-speed

Production years

1995-2001

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Four-wheel driveReference

Cab standard with air-conditioning. Optional ROPS.Reference

Engine

Kubota 4.3L 4-cyl dieselReference

Fuel tank104.8 LReference

Engine56.7 kWReference

Kubota V4302Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.3 LReference

Bore/Stroke105 x 125 mmReference

Power56.7 kWReference

Rated RPM2400Reference

Torque280.6 NmReference

Torque RPM1200Reference

StarterelectricReference

Starter volts12Reference

Oil capacity16.3 LReference

Coolant capacity14.5 LReference

Transmission

16-speedReference

24-speed creeperReference

16-speed partial power shiftReference

Gears16 forward and reverseReference

Four gears (1-4) in two ranges (low/high) with additional two-range shift.Reference

TypecreeperReference

Gears24 forward and reverseReference

Optional creeper range added to basic transmission.Reference

Typepartial power shiftReference

Eight gears in two ranges. Optional creeper range available.Reference

PTO & Hydraulics

PTO (claimed)53.7 kWReference

Pump flow60.0 lpmReference

Rear TypeIIReference

Rear lift2034 kgReference

Rear lift2585 kgReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@2035Reference

Engine RPM1000@2211Reference

Dimensions

Wheelbase230 cmReference

Weight6658 to 7055 poundsReference

Front tire9.5-24Reference

Rear tire12.4-36Reference

Standard tires (ag)Front: 9.5-24. Rear: 12.4-36Reference

Length388 cmReference

Width185 cmReference

Height259 cmReference

ROPS Weight3020 kgReference

Cab Weight3200 kgReference

Ground clearance43 cmReference

Front tread120 to 139 cmReference

ROPS Rear tread121 to 192 cmReference

Cab Rear tread132 to 192 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
