Tractor · 1995Unverified

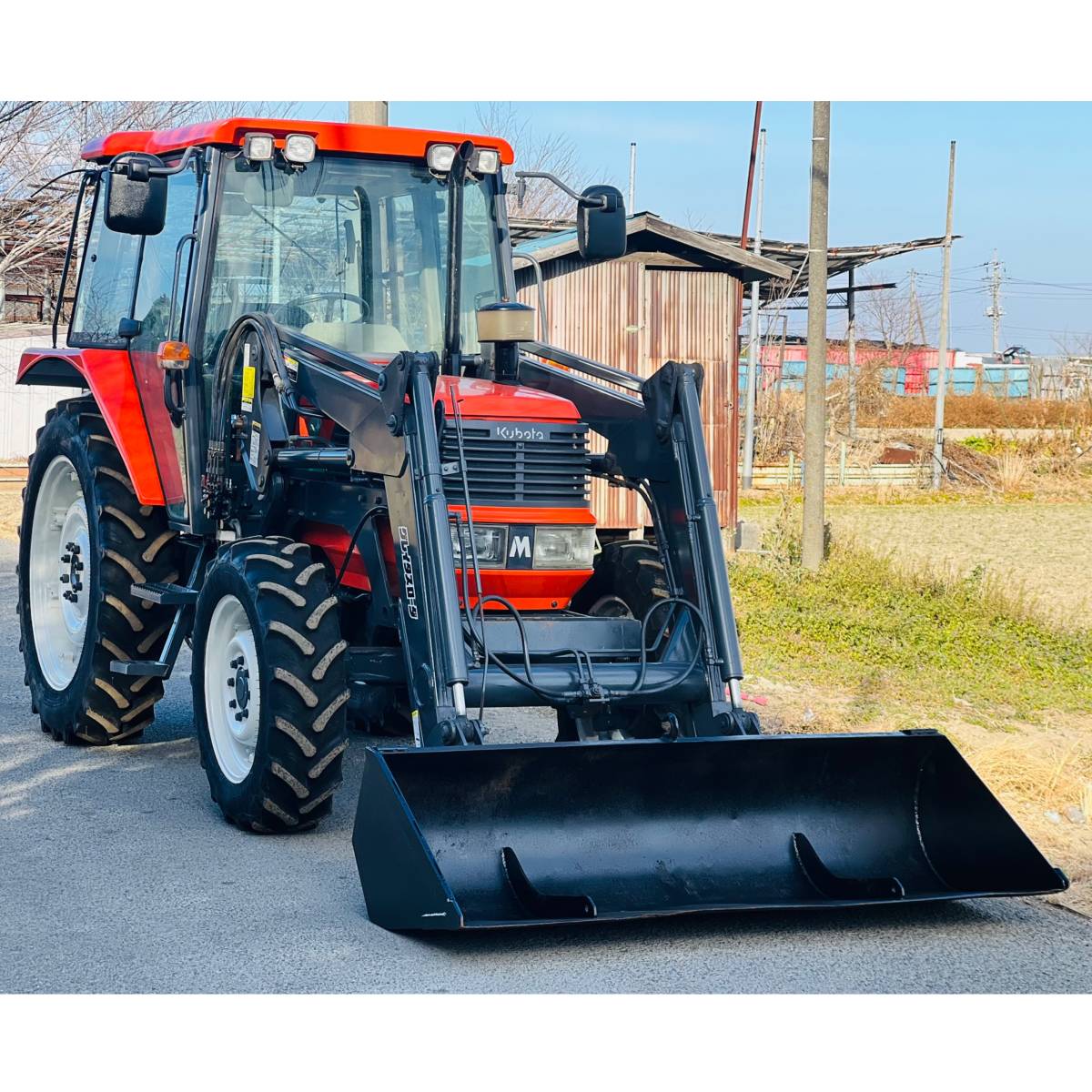

Kubota MD97
Kubota MD97 — MD Series · 92 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
92 hp
Weight
7694 to 8091 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Cab standard with air-conditioning. Optional ROPS.Reference
Engine
Kubota 4.7L 4-cyl dieselReference
Fuel tank149.9 LReference
Engine71.4 kWReference
Kubota V4702Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.7 LReference
Bore/Stroke109 x 125 mmReference
Power71.4 kWReference
Rated RPM2400Reference
Torque358.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity16.3 LReference
Coolant capacity15.0 LReference
Transmission
16-speedReference
24-speed creeperReference
16-speed partial power shiftReference
Gears16 forward and reverseReference
Four gears (1-4) in two ranges (low/high) with additional two-range shift.Reference
TypecreeperReference
Gears24 forward and reverseReference
Optional creeper range added to basic transmission.Reference
Typepartial power shiftReference
Eight gears in two ranges. Optional creeper range available.Reference
PTO & Hydraulics
PTO (claimed)68.2 kWReference
Pump flow60.0 lpmReference
Rear TypeIIReference
Rear lift2034 kgReference
Rear lift2585 kgReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2035Reference
Engine RPM1000@2211Reference
Dimensions
Wheelbase244 cmReference
Weight7694 to 8091 poundsReference
Front tire11.2-24Reference
Rear tire16.9-34Reference
Standard tires (ag)Front: 11.2-24. Rear: 16.9-34Reference
Length405 cmReference
Width198 cmReference
Height264 cmReference
ROPS Weight3489 kgReference
Cab Weight3670 kgReference
Ground clearance45 cmReference
Front tread132 to 151 cmReference
ROPS Rear tread137 to 199 cmReference
Cab Rear tread151 to 199 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
