Tractor · 2003Unverified

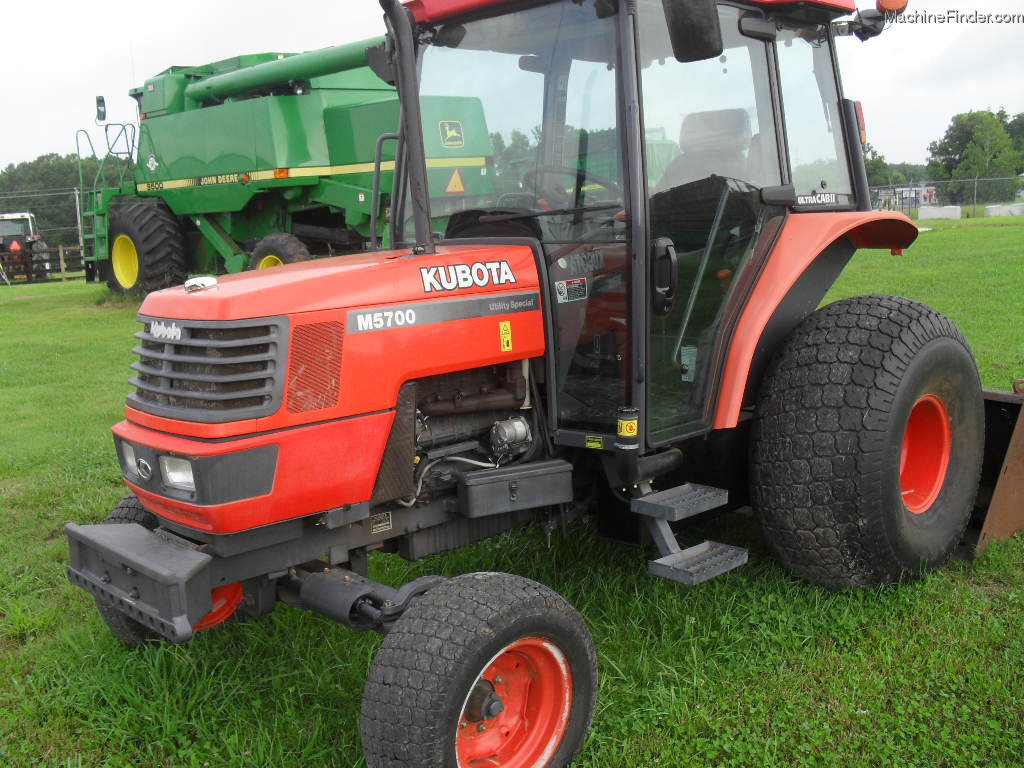

Kubota ME5700
Kubota ME5700 — ME Series · 63 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
63 hp
Weight
5071 to 6283 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
Trailer brakesmechanicalReference
Two-post fixed ROPS. Cab optional with air-conditioning. Two-post folding mid-mount ROPS on narrow model.Reference
Variants
ME5700DTNnarrowReference
Engine
Kubota 2.7L 5-cyl dieselReference
ROPS Fuel tank65.1 LReference
Cab Fuel tank95.0 LReference
Engine (gross)46.6 kWReference
Kubota F2803-EAReference
dieselReference
5-cylinderReference
liquid-cooled inlineReference
Displacement2.7 LReference
Bore/Stroke87 x 92 mmReference
Power (gross)46.6 kWReference
Air cleanerdual dry elementReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed power shuttleReference
12-speed mechanical shuttleReference
Typepower shuttleReference
Gears12 forward and reverseReference
Clutchhydraulic wet discReference
Typemechanical shuttleReference
Clutchdry discReference
The mechanical shuttle was used on the narrow-profile ME5700DTN.Reference
PTO & Hydraulics
PTO (claimed)39.4 kWReference
Valves1 or 2Reference
Pump flow41.6 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift (at ends)1900 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase207 cmReference
Weight5071 to 6283 poundsReference
Front tire11.2R20Reference
Rear tire16.9-28Reference
Standard tires (ag)Front: 11.2R20. Rear: 16.9-28Reference
DTN Optional tires (ag)Front: 7.5-18. Rear: 12.4R28Reference
ROPS Length351 cmReference
Cab Length356 cmReference
DTN Length349 cmReference
Ground clearance41 cmReference
Front tread136/142 cmReference
DTN to inches 113 to 0 cm Front tread44.7Reference
Rear tread140 to 173 cmReference
DTN Rear tread106 to 146 cmReference
ROPS2469 kgReference
Cab2849 kgReference
DTN2300 kgReference
DTN Steering wheel146 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps40Reference
Cab Charging amps60Reference
Battery volts12Reference
Kubota ME5700 Height
ROPS245 cmReference
Cab247 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
