Tractor · 2003Unverified

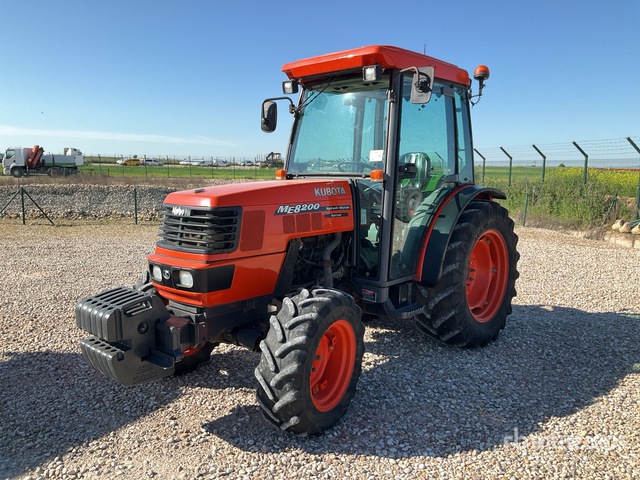

Kubota ME8200
Kubota ME8200 — ME Series · 87 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
87 hp
Weight
5534 to 8378 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Differential lockmechanical front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Two-post sliding ROPS. Cab optional with air-conditioning. Two-post folding mid-mount ROPS on narrow model.Reference
Variants
ME8200DTNnarrowReference
Engine
Kubota 3.3L 4-cyl dieselReference
ROPS Fuel tank90.1 LReference
Cab Fuel tank110.1 LReference
DTN ROPS Fuel tank60.2 LReference
DTN Cab Fuel tank78.0 LReference
Engine (gross)64.7 kWReference
Kubota V3300-TEReference
turbocharged dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement3.3 LReference
Bore/Stroke98 x 110 mmReference
Power (gross)64.7 kWReference
Air cleanerdual dry elementReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
18-speed power shuttleReference
12-speed mechanical shuttleReference
Typepower shuttleReference
Gears18 forward and reverseReference
Clutchhydraulic wet discReference
Six synhcronized gears in three ranges with power shuttle.Reference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
The mechanical shuttle was used on the narrow-profile ME8200DTN.Reference
PTO & Hydraulics
PTO (claimed)55.3 kWReference
Valves2 or 3Reference
Pump flow41.6 lpmReference
Rear TypeIIReference
DTN Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift (at ends)3999 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase225 cmReference
Weight5534 to 8378 poundsReference
Front tire11.2R24Reference
Rear tire18.4R30Reference
Standard tires (ag)Front: 11.2R24. Rear: 18.4R30Reference
DTN Optional tires (ag)Front: 280/70R18. Rear: 380/70R28Reference
Length389 cmReference
Ground clearance44 cmReference
Front tread150 to 161 cmReference
Rear tread157 to 186 cmReference
ROPS3549 kgReference
Cab3800 kgReference
DTN ROPS2510 kgReference
DTN Cab2580 kgReference
DTN Steering wheel151 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps45Reference
Cab Charging amps60Reference
Battery volts12Reference
Kubota ME8200 Height
ROPS250 cmReference
Cab254 cmReference
Speeds
With 16.9R34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
