Tractor · 2015Unverified

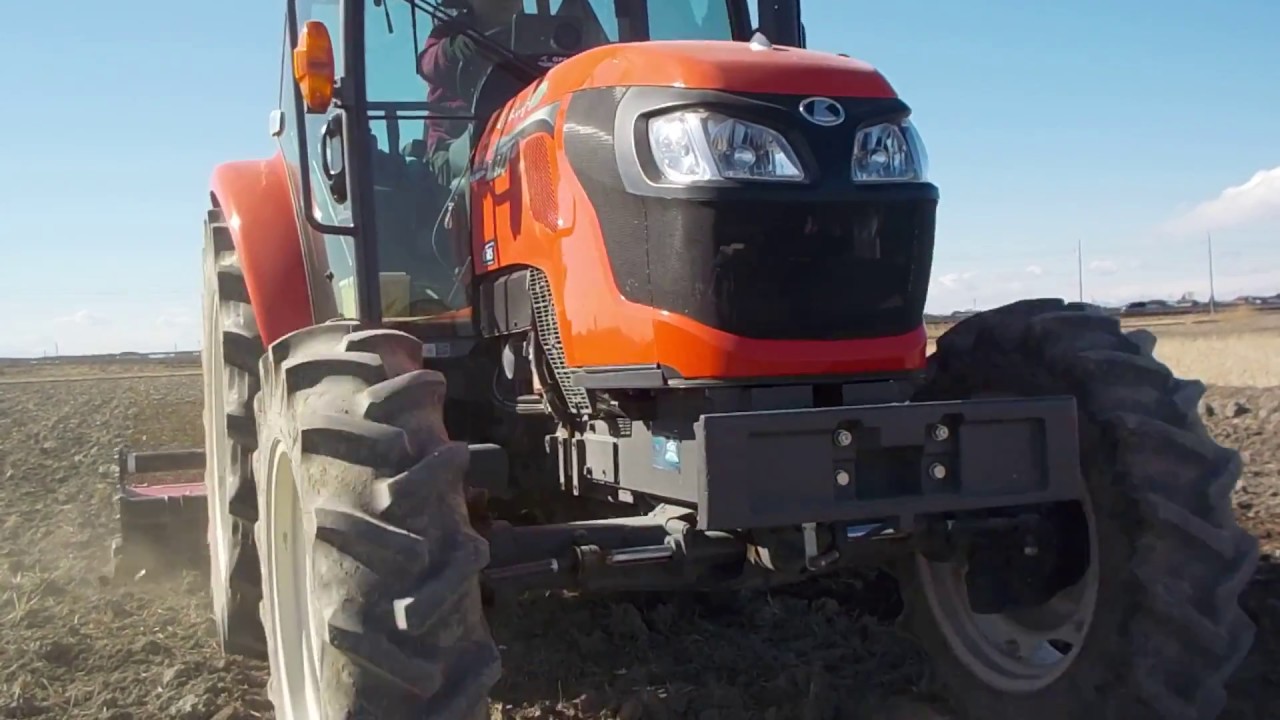

Kubota MR77-PC

Name: Kubota MR77-PC
Brand: Kubota

Kubota MR77-PC — Rexia Series · 76 hp. Reference specifications; pending source verification.

The Kubota MR77-PC is a tractor with a rated power of 76 hp, positioned in the mid-range for its class. It was manufactured in 2015, featuring a 4-cylinder turbocharged diesel liquid-cooled engine. The tractor has a tracked undercarriage and a 24-speed gearbox, with an operating weight of 3665 kg. It is suitable for operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

76 hp

Weight

3665 kg

Catalogue coverage

Variants represented

Richest spec table

46 rows

Recorded power

76 hp

Recorded weight

3665 kg

Transmissions

24-speed

Production years

2015-2015

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Half-track Crawler tractorReference

Drivehalf-trackReference

Power steeringReference

Mechanical wet disc brakesReference

Cab standard.Reference

Variants

MR77utilityReference

MR77-PChalf-trackReference

Engine

Kubota 3.8L 4-cyl dieselReference

Fuel tank110.1 LReference

Engine56.6 kWReference

Kubota V3800-CR-TE4Reference

turbocharged dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement3.8 LReference

Bore/Stroke100 x 120 mmReference

Power56.6 kWReference

Rated RPM2600Reference

Starter typeelectricReference

Transmission

24-speedReference

Gears24 forward and reverseReference

Clutchelectro-hydraulic wet discReference

PTO & Hydraulics

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift3299 kgReference

Rear PTO Type540 (1.375)Reference

Engine RPM589@2600Reference

Engine RPM828@2600Reference

Engine RPM1170@2600Reference

Dimensions

Wheelbase270 cmReference

Weight3665 kgReference

Front tire9.5-24Reference

Rear tiretracksReference

Ag front9.5-24Reference

Ag front320/60-26Reference

Ag front360/70R20Reference

Ag rear450mm trackReference

Ag rear280mm trackReference

Length395 cmReference

Width198 cmReference

Height (cab)262 cmReference

Ground clearance48 cmReference

Front tread152 cmReference

Rear tread144 cmReference

Rear tread132 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
