Tractor · 2015Unverified

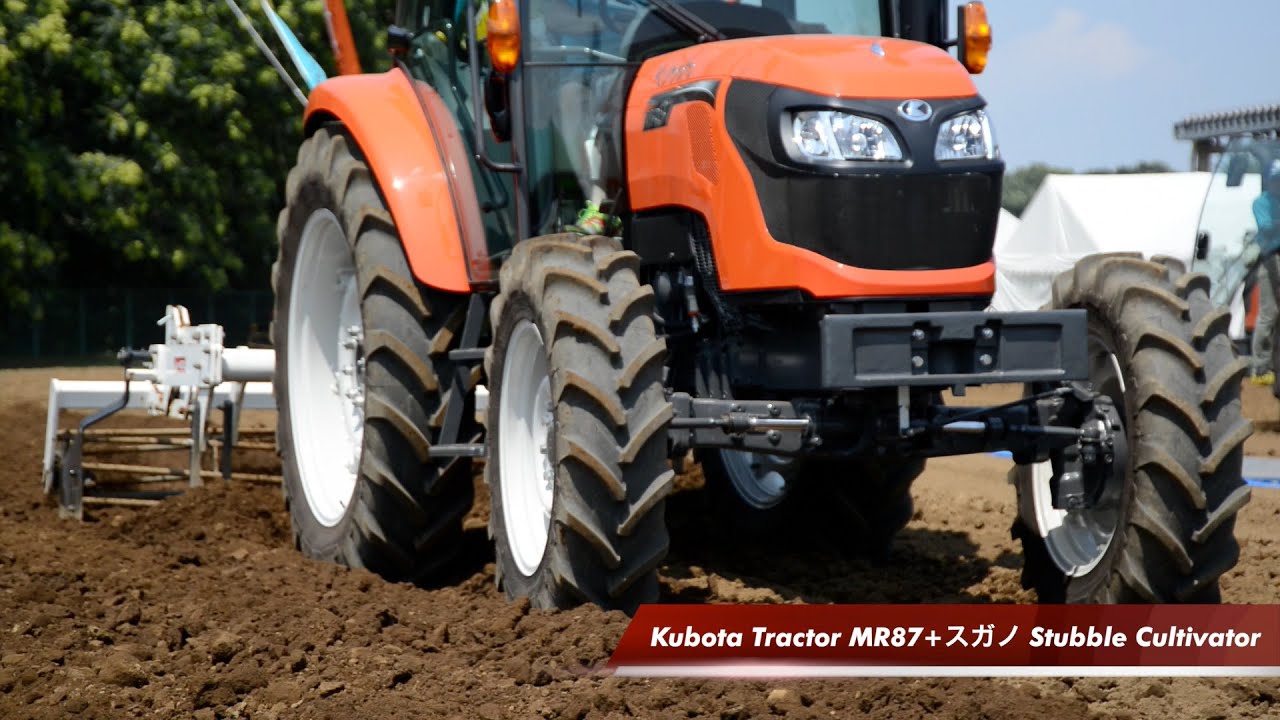

Kubota MR87
Kubota MR87 — Rexia Series · 86 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
86 hp
Weight
3339 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Cab standard.Reference
Variants
MR87utilityReference
MR87-PChalf-trackReference
Engine
Kubota 3.8L 4-cyl dieselReference
Fuel tank110.1 LReference
Engine64.0 kWReference
Kubota V3800-CR-TE4Reference
turbocharged dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke100 x 120 mmReference
Power64.0 kWReference
Rated RPM2600Reference
Starter typeelectricReference
Transmission
24-speedReference
Gears24 forward and reverseReference
Clutchelectro-hydraulic wet discReference
PTO & Hydraulics
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift3299 kgReference
Rear PTO Type540 (1.375)Reference
Engine RPM589@2600Reference
Engine RPM828@2600Reference
Engine RPM1170@2600Reference
Dimensions
Wheelbase225 cmReference
Weight3339 kgReference
Front tire11.2-24Reference
Rear tire16.9-34Reference
Standard tires (ag)Front: 11.2-24. Rear: 16.9-34Reference
Length395 cmReference
Width181 cmReference
Height (cab)261 cmReference
Ground clearance47 cmReference
Front tread131 to 139 cmReference
Front tread133 to 151 cmReference
Rear tread137 to 199 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
