Tractor · 2015Unverified

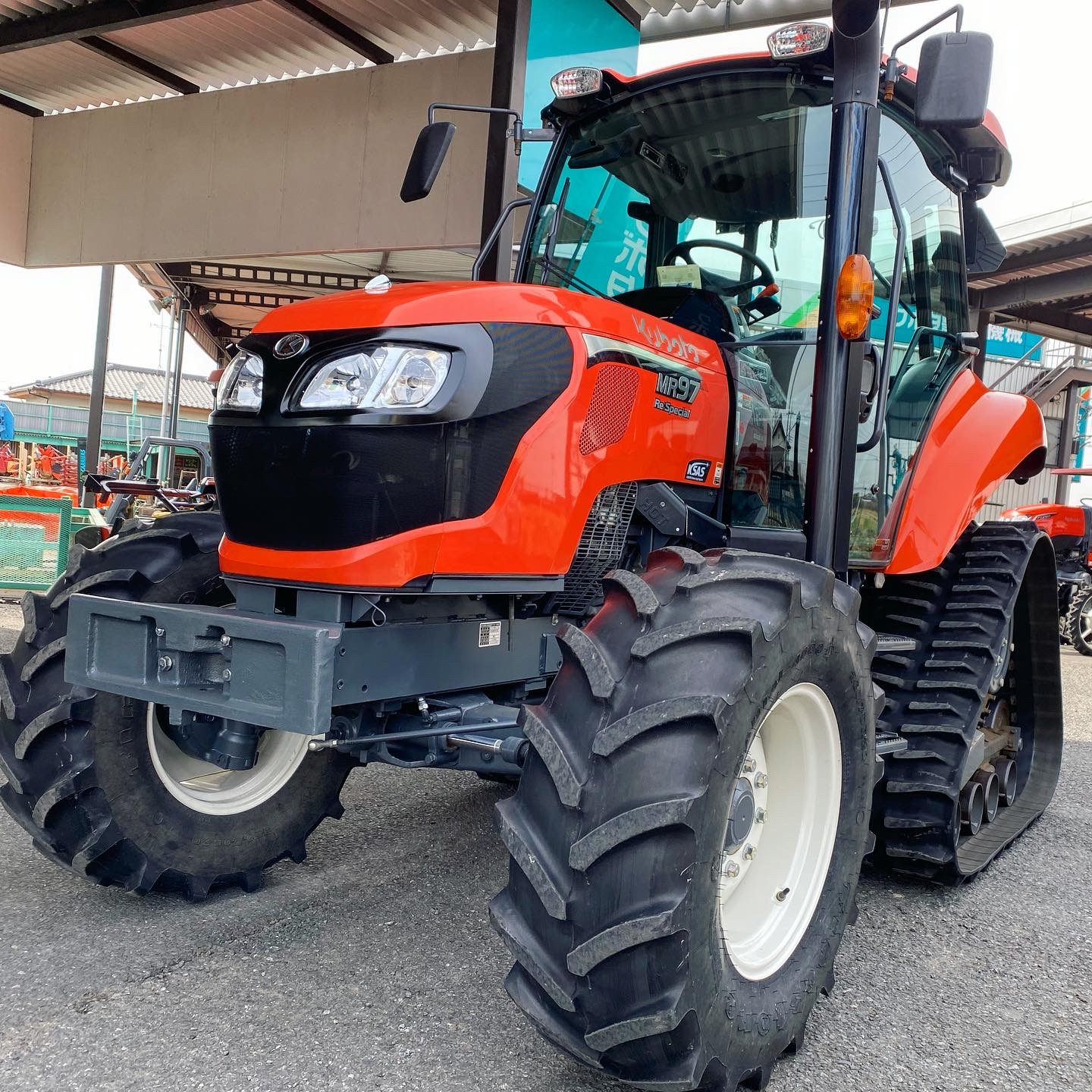

Kubota MR97

Name: Kubota MR97
Brand: Kubota

Kubota MR97 — Rexia Series · 96 hp. Reference specifications; pending source verification.

The Kubota MR97 is a tractor rated at 96 hp, placing it within the middle range of its class in terms of power output. Manufactured in 2015, the MR97 is powered by a 4-cylinder turbocharged diesel liquid-cooled engine, which drives a four-wheel drive system via a 24-speed gearbox. The tractor weighs 3339 kg and is designed for use on land areas ranging from 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

96 hp

Weight

3339 kg

Catalogue coverage

Variants represented

Richest spec table

42 rows

Recorded power

96 hp

Recorded weight

3339 kg

Transmissions

24-speed

Production years

2015-2015

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Cab standard.Reference

Variants

MR97utilityReference

MR97-PChalf-trackReference

Engine

Kubota 3.8L 4-cyl dieselReference

Fuel tank110.1 LReference

Engine71.3 kWReference

Kubota V3800-CR-TE4Reference

turbocharged dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement3.8 LReference

Bore/Stroke100 x 120 mmReference

Power71.3 kWReference

Rated RPM2600Reference

Starter typeelectricReference

Transmission

24-speedReference

Gears24 forward and reverseReference

Clutchelectro-hydraulic wet discReference

PTO & Hydraulics

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift3299 kgReference

Rear PTO Type540 (1.375)Reference

Engine RPM589@2600Reference

Engine RPM828@2600Reference

Engine RPM1170@2600Reference

Dimensions

Wheelbase225 cmReference

Weight3339 kgReference

Front tire11.2-24Reference

Rear tire16.9-34Reference

Standard tires (ag)Front: 11.2-24. Rear: 16.9-34Reference

Length395 cmReference

Width181 cmReference

Height (cab)261 cmReference

Ground clearance47 cmReference

Front tread131 to 139 cmReference

Front tread133 to 151 cmReference

Rear tread137 to 199 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
