Tractor · 2009Unverified

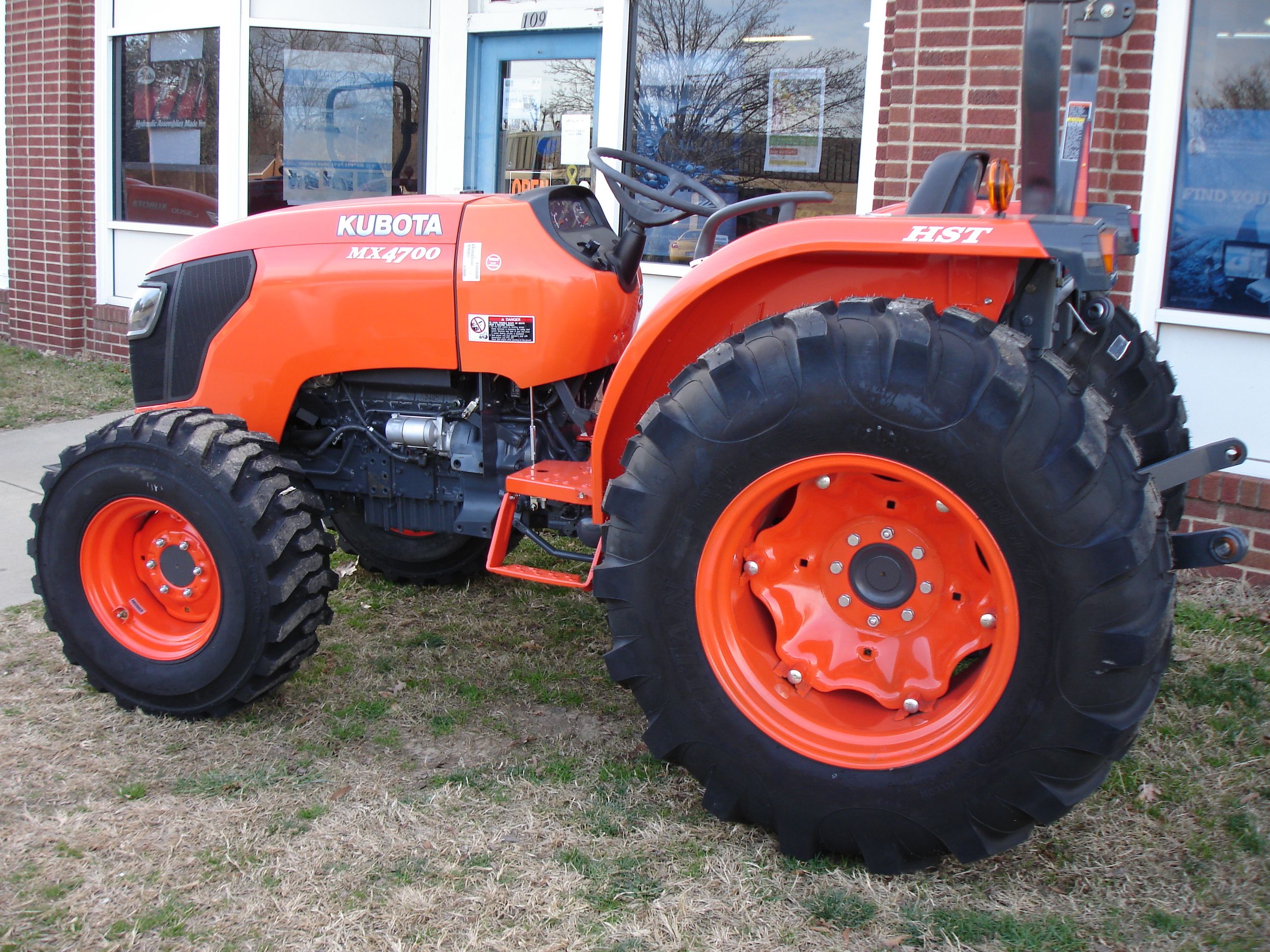

Kubota MX4700

Name: Kubota MX4700
Brand: Kubota

Kubota MX4700 — MX Series · 48 hp. Reference specifications; pending source verification.

The Kubota MX4700 tractor is a model rated at approximately 48 hp, categorising it at the lighter end of its class. Produced between 2009 and 2014, this tractor is powered by a 4-cylinder diesel liquid-cooled engine, paired with mechanical front-wheel drive and a hydrostatic transmission. The operating weight of the Kubota MX4700 ranges from 3362 to 3770 pounds. It is suitable for operations spanning up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

48 hp

Max power

48.2 hp

Weight

3362 to 3770 pounds

Catalogue coverage

Variants represented

Richest spec table

129 rows

Recorded power

48 hp

Transmissions

8-speed partially synchronized

Production years

2009-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Original price was $15,989 in 2011Reference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Differential lockrear standardReference

Steeringhydrostatic powerReference

Mechanical wet disc brakesReference

Two-post foldable ROPS. Optional canopy.Reference

Variants

MX4700F2WD gearReference

MX4700DT4WD gearReference

MX4700HST4WD hydroReference

Engine

Kubota 2.4L 4-cyl dieselReference

Engine (gross)35.9 kWReference

Engine (net)34.3 kWReference

Kubota V2403-MReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.4 LReference

EmissionsInterim Tier IVReference

Emission controlEGRReference

Power (net)34.3 kWReference

Power (gross)35.9 kWReference

Air cleanerdual dry elementReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Oil capacity8.0 LReference

Coolant capacity7.0 LReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,700 rpmReference

Emissions complianceInterim Tier IV || EGRReference

Cooling systemliquid-cooledReference

Transmission

8-speed partially synchronizedReference

hydrostaticReference

TransmissionSynchro ShuttleReference

Typepartially synchronizedReference

Gears8 forward and reverseReference

Clutchdry discReference

Oil capacity43.9 LReference

Transmission is synchronized between gears 3-4 and shuttle shifting.Reference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Hydrostatic transmission with three ranges and treadle foot pedal. Cruise control standard.Reference

Transmission TypeSync ShuttleReference

forward and reverse optionsSynchro Shuttle; 8 F& 8 R | infinite (3-range) F&RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)29.5 kWReference

PTO (claimed)28.3 kWReference

Hydraulic system43.9 LReference

Typeopen centerReference

Capacity43.9 LReference

Valves0 to 3Reference

Pump flow36.0 lpmReference

Total flow54.5 lpmReference

Steering flow18.5 lpmReference

Rear TypeII/IReference

Rear lift (at ends)1301 kgReference

Rear lift (at 24"/610mm)1047 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2700Reference

Capacities

Fuel48.1 LReference

Front axle9.0 LReference

Fuel tank48.1 LReference

Crankcase oil volume8.5 qtsReference

Dimensions

Wheelbase189 cmReference

Weight3362 to 3770 poundsReference

Front tire7.5L-15Reference

Rear tire14.9-26 (2WD)Reference

Standard tires (ag)Front: 7.5L-15. Rear: 14.9-26 (2WD)Reference

Standard tires (ag)Front: 9.5-16. Rear: 14.9-26 (4WD)Reference

Optional tires (ag)Front: 7.5L-15. Rear: 13.6-28 (2WD)Reference

Optional tires (ag)Front: 9.5L-15. Rear: 13.6-28 (2WD)Reference

Optional tires (ag)Front: 9.5L-14.9-26 . Rear: (2WD)Reference

Optional tires (ag)Front: 9.5-16. Rear: 13.6-28 (4WD)Reference

Lawn/turf front29x12.50-15Reference

Lawn/turf front305R343Reference

Lawn/turf rear44x18-20Reference

Lawn/turf rear610R470Reference

Industrial front12-16.5 (4WD)Reference

Industrial rear17.5L-24 (4WD)Reference

Length324 cmReference

Length311 cmReference

Width177 cmReference

Height (ROPS)243 cmReference

Ground clearance40 cmReference

Ground clearance38 cmReference

Front tread128 to 157 cmReference

Front tread133 to 132 cmReference

Rear tread137 to 149 cmReference

1525 kgReference

1640 kgReference

1710 kgReference

Kubota MX4700 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA582Reference

Battery volts12Reference

Total cold cranking amps582 CCAReference

Attachment overview

Front-end loaderReference

BackhoeReference

Kubota BH92 Backhoe

Backhoe typeKubota BH92 BackhoeReference

Speeds

With 14.9-26 R1 rear tires.Reference

Power

Max Power48.2 hpReference

Rated Power46 hpReference

PTO

PTO Power39.5 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed540@2,700 RPMReference

Hydraulics

Pump Rated Output (total)14.4 gpmReference

Hydraulics Typeopen centerReference

Remote Valves0 to 3 valvesReference

Steering & Implements flow4.9 gpm (9.5 gpm)Reference

Rear Hitch category (SAE designation)Category II/IReference

Rear Hitch maximum lift capacity1,301.8 kgReference

Dimensions & weight

Height Over ROPS243.1 cmReference

Overall Length324.6 cmReference

Overall Width177 cmReference

Overall weight1,710 kgReference

Wheels & tyres

Rear wheel tread range149.1 cmReference

Front Wheel tread range50.4 to 62.2 inches (2WD) | 52.5 to 52.2 inchesReference

General

Rollover protective structureTwo-post foldable ROPSReference

Operator station

Cab AvailabilityAvailableReference

Steering & brakes

Steering typehydrostatic powerReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
