Tractor · 2014Unverified

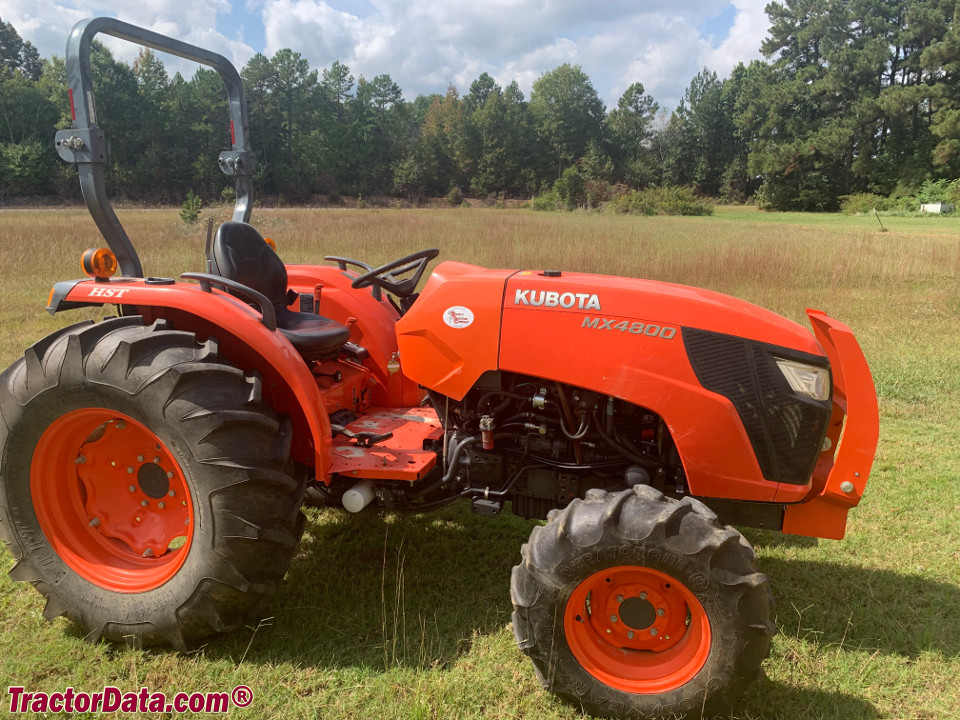

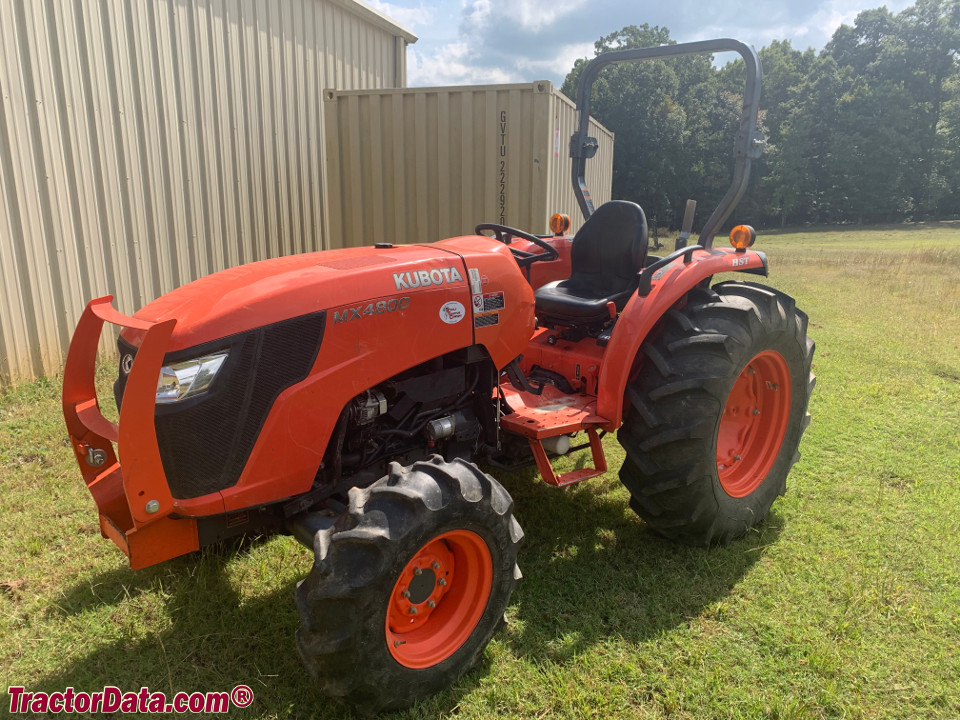

Kubota MX4800

Name: Kubota MX4800
Brand: Kubota

Kubota MX4800 — MX Series · 49 hp. Reference specifications; pending source verification.

The Kubota MX4800 is a compact tractor, rated at 49 hp, making it a suitable option for smaller agricultural tasks. Manufactured from 2014 to 2020, the MX4800 features a 4-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system with a hydrostatic transmission. Its listed weight is 3469 to 3729 pounds, and it is designed for use on smaller areas, typically up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

49 hp

Weight

3469 to 3729 pounds

Catalogue coverage

Variants represented

Richest spec table

79 rows

Recorded power

49 hp

Transmissions

8-speed synchronized shuttle

Production years

2014-2020

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Original price$20,621 (2014 shuttle 2WD )Reference

Original price$27,521 (2014 hydro 4WD )Reference

Two- or four-wheel driveReference

Final drivesmechanical rearReference

Steeringhydrostatic powerReference

Mechanical wet disc brakesReference

Two-post foldable ROPS.Reference

Engine

Kubota 2.4L 4-cyl dieselReference

Fuel tank51.1 LReference

Engine (gross)36.8 kWReference

Engine (net)35.0 kWReference

Kubota V2403CRReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.4 LReference

EmissionsTier 4Reference

Power (net)35.0 kWReference

Power (net)34.5 kWReference

Power (gross)36.8 kWReference

Fuel systemcommon rail direct injectionReference

Air cleanerdry dual elementReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Transmission

8-speed synchronized shuttleReference

hydrostaticReference

Typesynchronized shuttleReference

Gears8 forward and reverseReference

Clutchdry discReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

PTO (claimed)30.2 kWReference

PTO (claimed)29.1 kWReference

Typeopen centerReference

Valvesup to 3Reference

Pump flow36.0 lpmReference

Steering flow18.5 lpmReference

Rear TypeII/IReference

Controlposition controlReference

Controldraft control optionalReference

Rear lift (at ends)0 kgReference

Rear lift (at 24"/610mm)1047 kgReference

Rear PTOindependentReference

Clutchwet discReference

Rear PTO Type540Reference

Dimensions

Wheelbase189 cmReference

Weight3469 to 3729 poundsReference

Front tire7.5L-15Reference

Rear tire14.9-26 (2WD)Reference

Standard tires (ag)Front: 7.5L-15. Rear: 14.9-26 (2WD)Reference

Standard tires (ag)Front: 9.5-16. Rear: 14.9-26 (4WD)Reference

2WD Length324 cmReference

4WD Length320 cmReference

Width177 cmReference

Height (ROPS)243 cmReference

2WD Ground clearance40 cmReference

4WD Ground clearance38 cmReference

Front tread128 to 157 cmReference

Front tread132 cmReference

Rear tread137 to 149 cmReference

1573 kgReference

1683 kgReference

1691 kgReference

Kubota MX4800 attachments

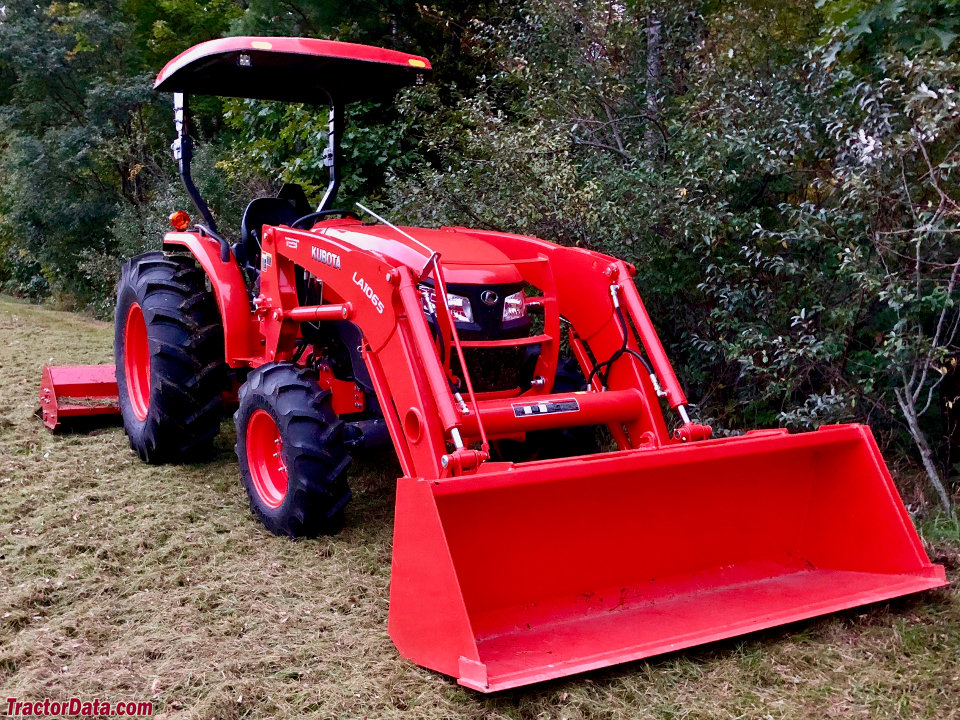

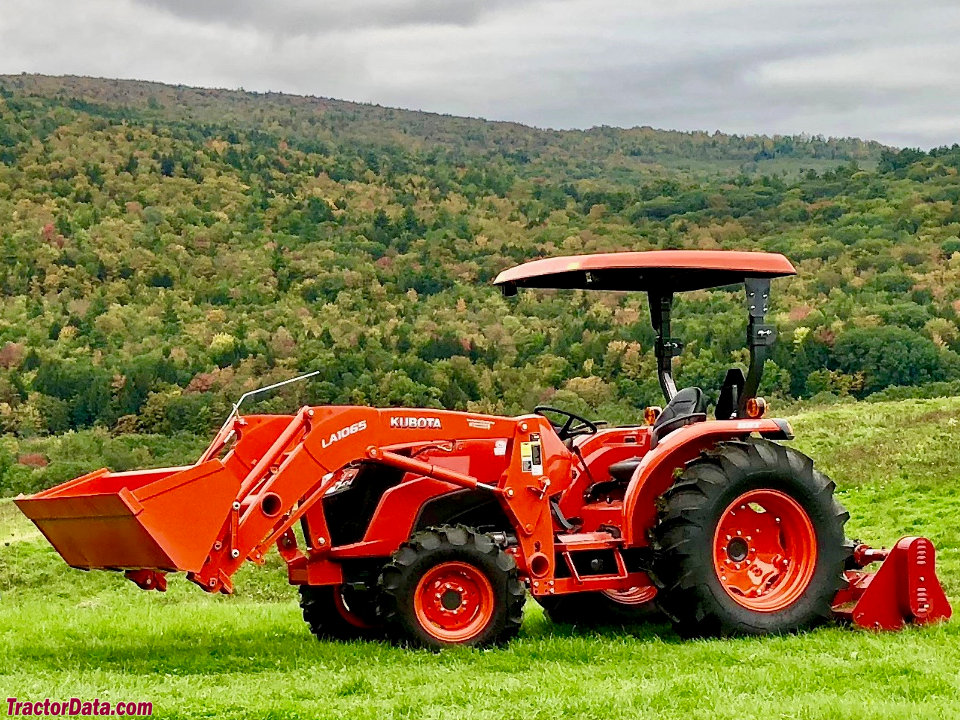

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps45Reference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

Kubota BH92 Backhoe

Backhoe typeKubota BH92 BackhoeReference

2-Foot flat digging depth278 cmReference

Reach from pivot382 cmReference

Loading height214 cmReference

Bucket Rotation180°Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
