Tractor · 2025Unverified

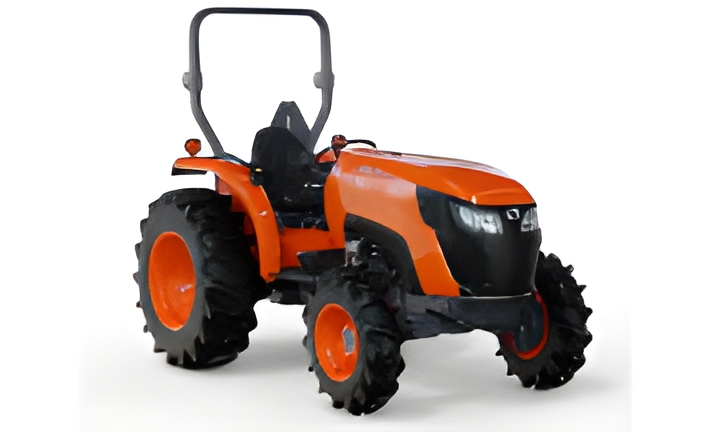

Kubota MX4900

Name: Kubota MX4900
Brand: Kubota

Kubota MX4900 — MX Series · 52 hp. Reference specifications; pending source verification.

The Kubota MX4900 is a tractor model with a rated power output of 52 hp, positioning it at the lower end of its class. It was manufactured in 2025. This model features a 4-cylinder turbocharged diesel liquid-cooled engine, paired with a four-wheel drive system and a hydrostatic transmission. Its operating weight ranges from 3716 to 4268 pounds, making it suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

52 hp

Weight

3716 to 4268 pounds

Catalogue coverage

Variants represented

Richest spec table

85 rows

Recorded power

52 hp

Transmissions

8-speed mechanical shuttle

Production years

2025-2025

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Original price$29,454 (2025 gear ROPS )Reference

Original price$31,327 (2025 hydro ROPS )Reference

Original price$38,854 (2025 gear Cab )Reference

Original price$40,727 (2025 hydro Cab )Reference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Kubota 2.4L 4-cyl dieselReference

ROPS Fuel tank51.1 LReference

Cab Fuel tank45.0 LReference

Engine (gross)38.6 kWReference

Engine (net)36.2 kWReference

Kubota V2403CR-TReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.4 LReference

Bore/Stroke87 x 102 mmReference

Hydro Power (net)36.2 kWReference

Hydro Power (gross)38.6 kWReference

Air cleanerdryReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Transmission

8-speed mechanical shuttleReference

hydrostaticReference

Gear ROPS1685 kgReference

Gear Cab1928 kgReference

Gear Power (net)35.6 kWReference

Gear Power (gross)37.5 kWReference

Typemechanical shuttleReference

Gears8 forward and reverseReference

Clutchdry discReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

PTO (claimed)30.8 kWReference

Typeopen centerReference

Valves3Reference

Pump flow36.0 lpmReference

Steering flow18.5 lpmReference

Rear TypeII/IReference

Controlposition control with optional draft controlReference

Rear lift (at 24"/610mm)1047 kgReference

Rear PTOindependentReference

Clutchwet discReference

Rear PTO Type540 (1.375)Reference

Dimensions

Wheelbase189 cmReference

Weight3716 to 4268 poundsReference

Front tire9.5-16Reference

Rear tire14.9-26Reference

Standard tires (ag)Front: 9.5-16. Rear: 14.9-26Reference

Lawn/turf frontLSW305R343Reference

Lawn/turf rearLSW610R470Reference

Industrial front12-16.5Reference

Industrial rear17.5L-24Reference

Length319 cmReference

Width177 cmReference

Height (ROPS)243 cmReference

Height (cab)235 cmReference

Ground clearance38 cmReference

Front tread132 cmReference

Rear tread137 to 149 cmReference

Hydro ROPS1693 kgReference

Hydro Cab1935 kgReference

Kubota MX4900 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps45Reference

Cab Charging amps60Reference

Battery volts12Reference

Attachment overview

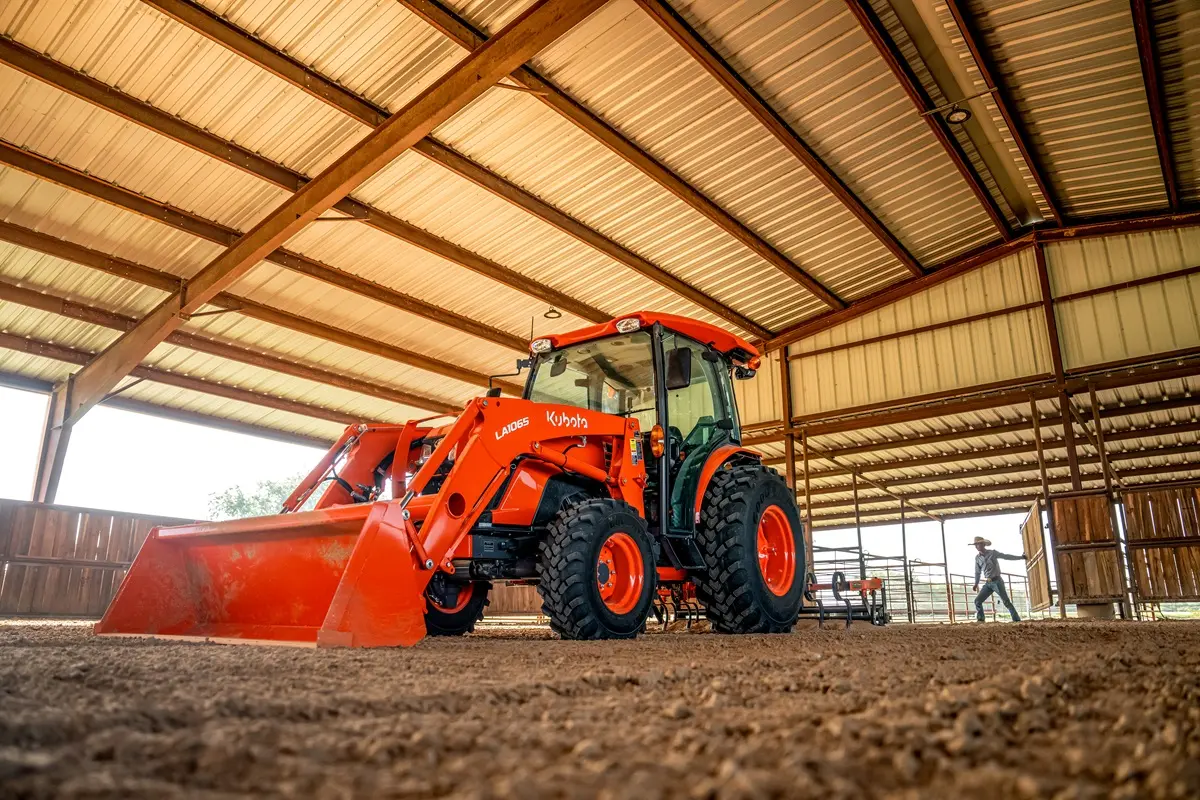

Front-end loaderReference

BackhoeReference

The BH92 backhoe was only available on tractors with ROPS.Reference

Kubota BH92 Backhoe

Backhoe typeKubota BH92 BackhoeReference

Transport height254 cmReference

2-Foot flat digging depth278 cmReference

Reach from pivot382 cmReference

Loading height214 cmReference

Bucket Rotation180°Reference

Speeds

With 14.9-26 rear tires. Reverse speeds are 10% slower than forward.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
