Tractor · 2006Unverified

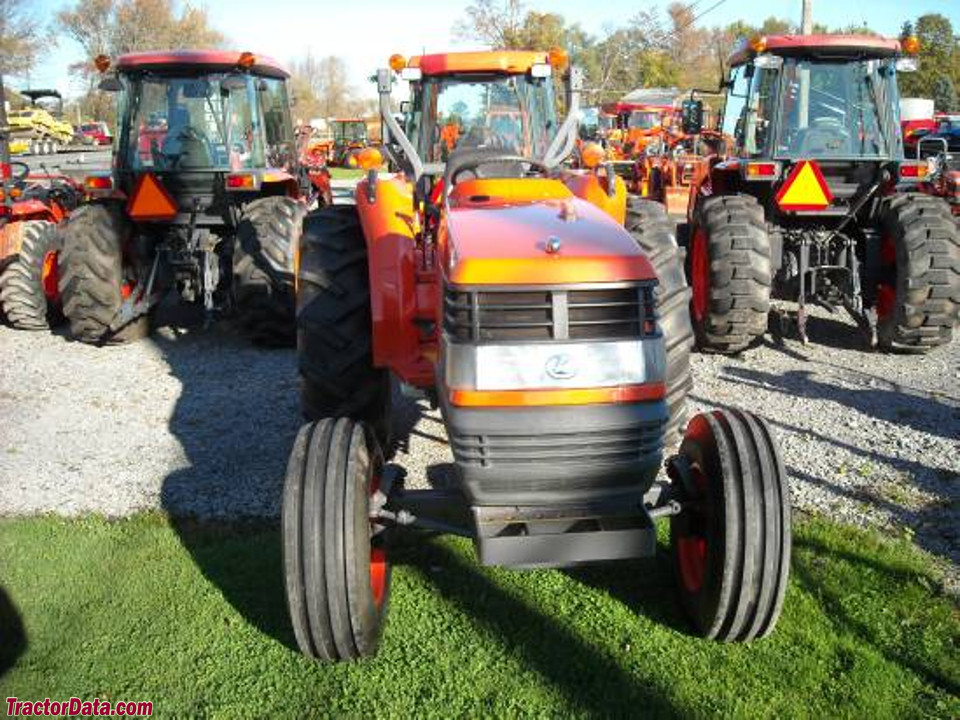

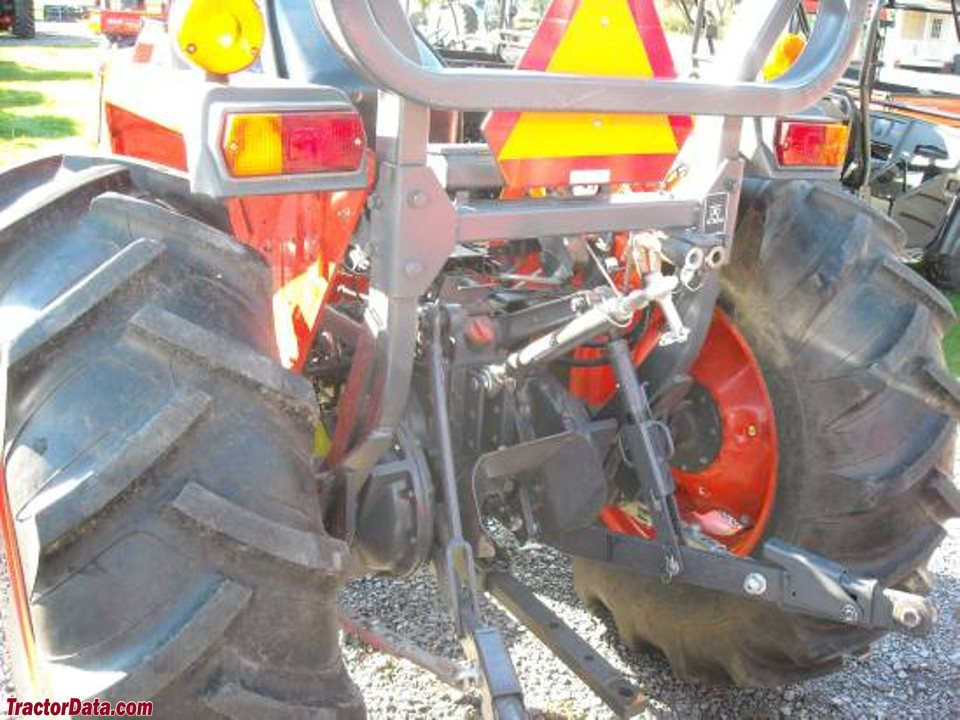

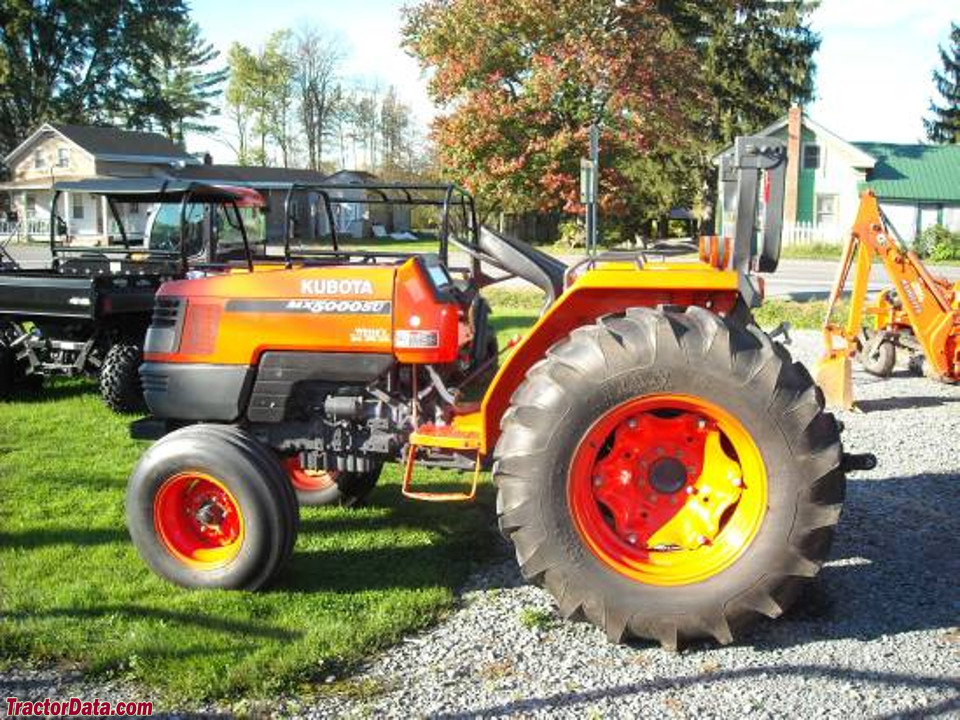

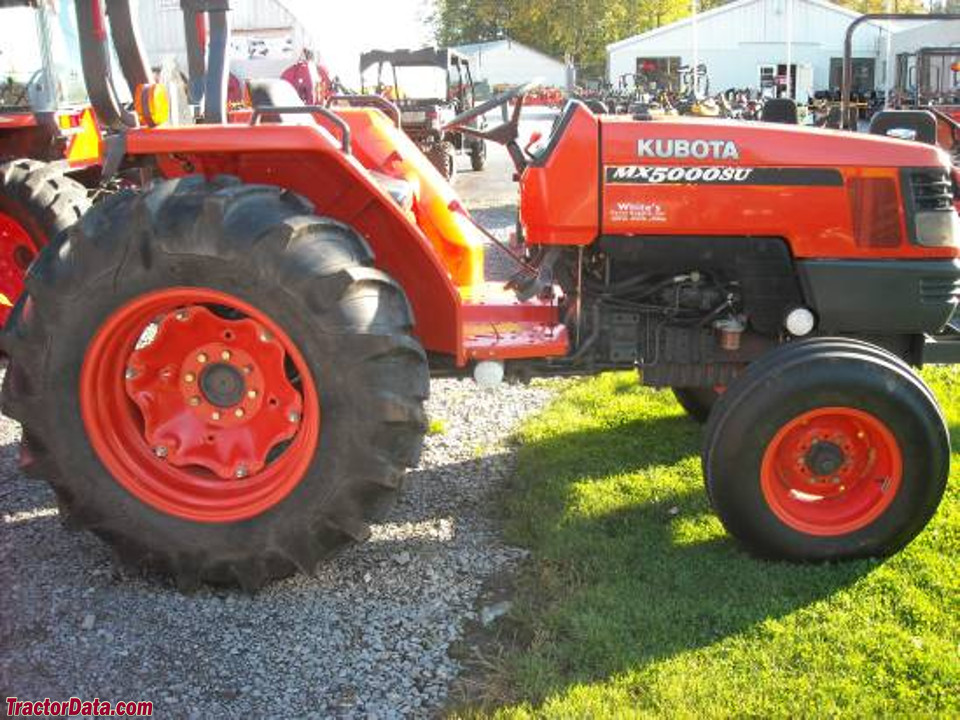

Kubota MX5000SU
Kubota MX5000SU — MX Series · 52 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
52 hp
Weight
1490 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
The Kubota MX5000SU was the most basic version of the economy MX5000. It was offered only in two-wheel drive.Reference
Two-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rear lock standardReference
Steeringhydrostatic powerReference
Mechanical wet disc brakesReference
Two-post ROPS. Canopy optional.Reference
Engine
Kubota 2.4L 4-cyl dieselReference
Fuel tank50.0 LReference
Engine (gross)38.9 kWReference
Engine (net)37.3 kWReference
Kubota V2403Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke87 x 102 mmReference
Power (net)37.3 kWReference
Power (gross)38.9 kWReference
Fuel systemindirect injectionReference
Air cleanerdry, dual elementReference
Rated RPM2700Reference
Starter volts12Reference
Oil capacity7.6 LReference
Coolant capacity7.5 LReference
Transmission
8-speed partially synchronizedReference
Typepartially synchronizedReference
Gears8 forward and 4 reverseReference
Clutchdry discReference
Oil capacity43.9 LReference
Synchronized shifting between gears 3 and 4.Reference
PTO & Hydraulics
PTO (claimed)32.8 kWReference
Typeopen centerReference
Pressure176.5 barReference
Valves0 to 3Reference
Pump flow34.8 lpmReference
Total flow53.0 lpmReference
Rear Type2/1Reference
Controlposition controlReference
Controltop-link draft control (optional)Reference
Rear lift (at ends)1300 kgReference
Rear lift (at 24"/610mm)1050 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540Reference
Engine RPM540@2700Reference
Dimensions
Wheelbase181 cmReference
Weight1490 kgReference
Front tire7.5L-15Reference
Rear tire14.9-26Reference
Ag front7.5L-15Reference
Ag rear14.9-26Reference
Lawn/turf front29x12.5-15Reference
Lawn/turf rear44x18-20Reference
Length336 cmReference
Width158 cmReference
Height215 cmReference
Clearance (front axle)40 cmReference
Front tread123 to 151 cmReference
Kubota MX5000SU attachments

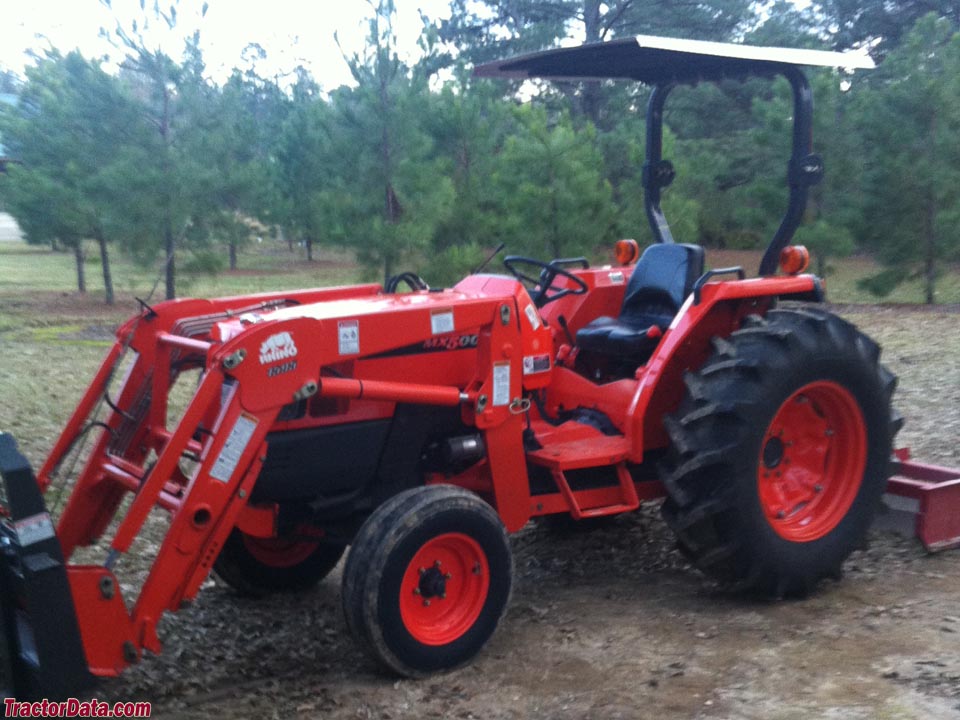

front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA582Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
