Tractor · 2009Unverified
Kubota MX5100
Kubota MX5100 — MX Series · 52 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
52 hp
Weight
3369 to 3774 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Original price was $16,989 in 2011Reference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Differential lockrear standardReference
Steeringhydrostatic powerReference
Mechanical wet disc brakesReference
Two-post foldable ROPS. Optional canopy.Reference
Variants
MX5100F2WD gearReference
MX5100DT4WD gearReference
MX5100HST4WD hydroReference
Engine
Kubota 2.4L 4-cyl dieselReference
Engine (gross)38.9 kWReference
Engine (net)37.3 kWReference
Kubota V2403-M-TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
EmissionsInterim Tier IVReference
Emission controlEGRReference
Power (net)37.3 kWReference
Power (gross)38.9 kWReference
Air cleanerdual dry elementReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Oil capacity7.6 LReference
Coolant capacity7.5 LReference
Transmission
8-speed partially synchronizedReference
hydrostaticReference
ManufacturerSynchro ShuttleReference
Typepartially synchronizedReference
Gears8 forward and reverseReference
Clutchdry discReference
Transmission is synchronized between gears 3-4 and shuttle shifting.Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Hydrostatic transmission with three ranges and treadle foot pedal. Cruise control standard.Reference
PTO & Hydraulics
PTO (claimed)32.8 kWReference
PTO (claimed)31.7 kWReference
Hydraulic system43.9 LReference
Typeopen centerReference
Capacity43.9 LReference
Valves0 to 3Reference
Pump flow34.8 lpmReference
Total flow53.0 lpmReference
Steering flow18.2 lpmReference

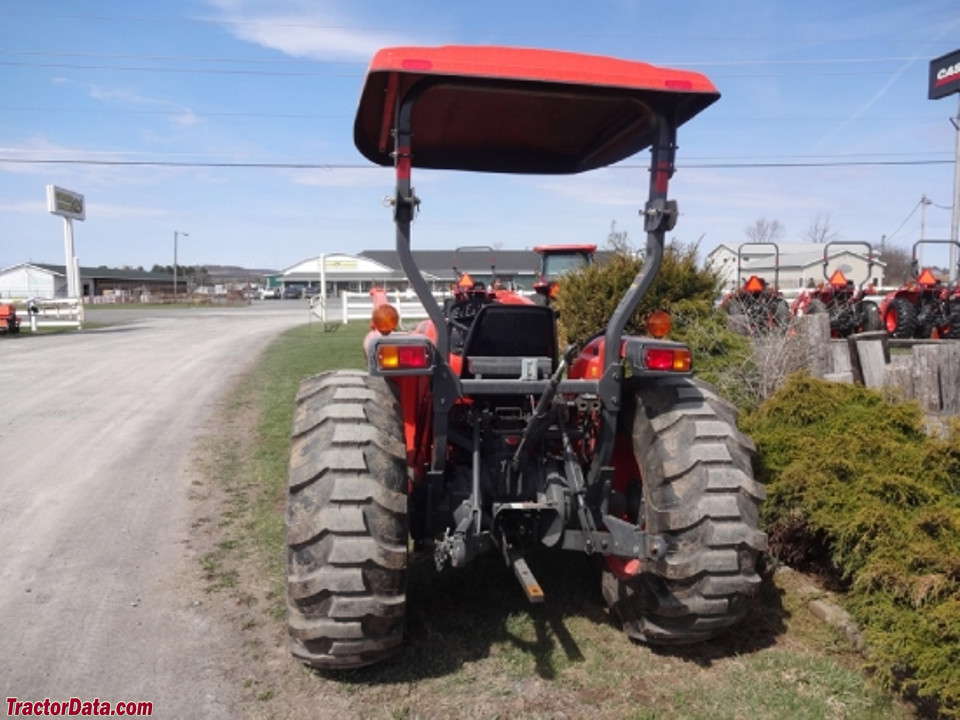

Rear TypeII/IReference
Rear lift (at ends)1300 kgReference
Rear lift (at 24"/610mm)1047 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2700Reference
Capacities
Fuel50.0 LReference
Front axle7.5 LReference
Dimensions
Wheelbase189 cmReference
Weight3369 to 3774 poundsReference
Front tire7.5L-15Reference
Rear tire14.9-26 (2WD)Reference
Standard tires (ag)Front: 7.5L-15. Rear: 14.9-26 (2WD)Reference
Standard tires (ag)Front: 9.5-16. Rear: 14.9-26 (4WD)Reference
Optional tires (ag)Front: 7.5L-15. Rear: 13.6-28 (2WD)Reference
Optional tires (ag)Front: 9.5L-15. Rear: 13.6-28 (2WD)Reference
Optional tires (ag)Front: 9.5L-14.9-26 . Rear: (2WD)Reference
Optional tires (ag)Front: 9.5-16. Rear: 13.6-28 (4WD)Reference
Lawn/turf front29x12.50-15Reference
Lawn/turf front305R343Reference
Lawn/turf rear44x18-20Reference
Lawn/turf rear610R470Reference
Industrial front12-16.5 (4WD)Reference
Industrial rear17.5L-24 (4WD)Reference
Length324 cmReference
Length311 cmReference
Width177 cmReference
Height (ROPS)243 cmReference
Ground clearance40 cmReference
Ground clearance38 cmReference
Front tread128 to 157 cmReference
Front tread133 to 132 cmReference
Rear tread137 to 149 cmReference
1528 kgReference
1642 kgReference
1711 kgReference
Kubota MX5100 attachments

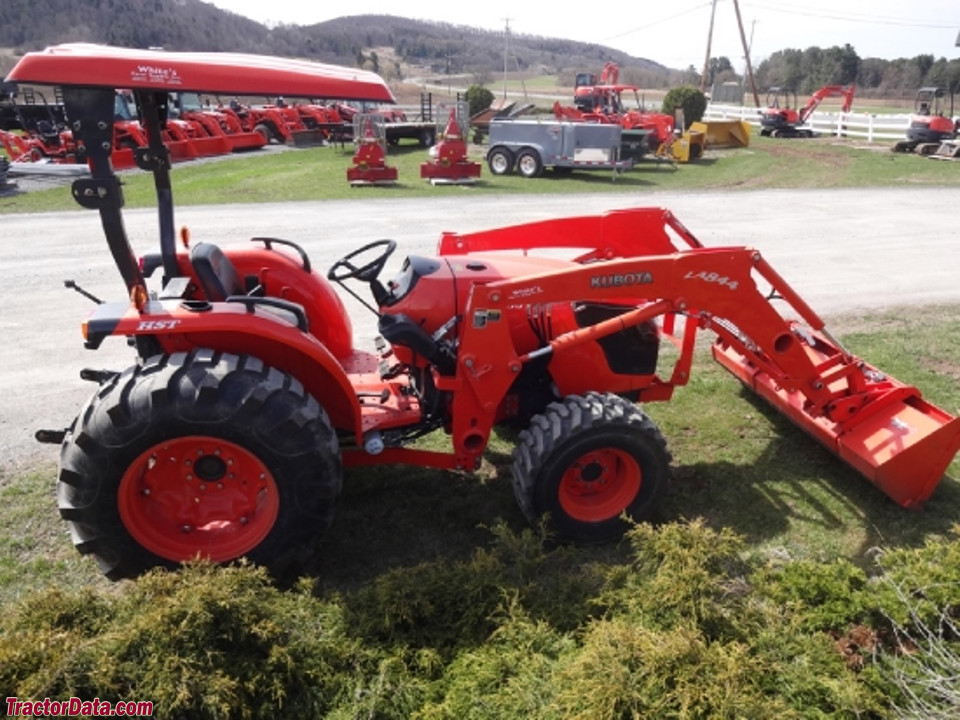

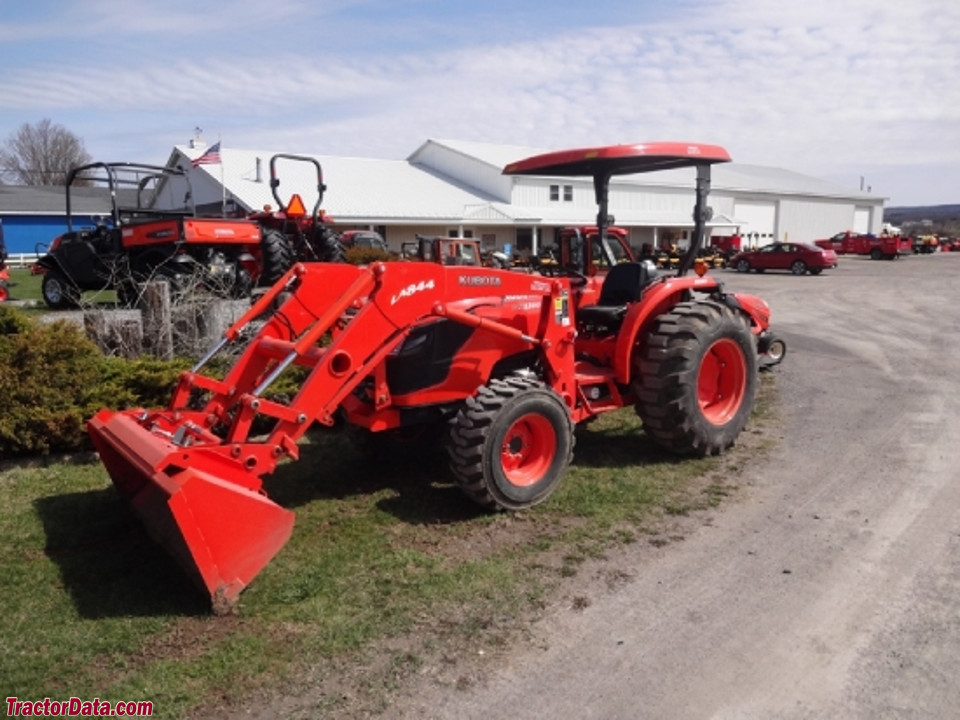

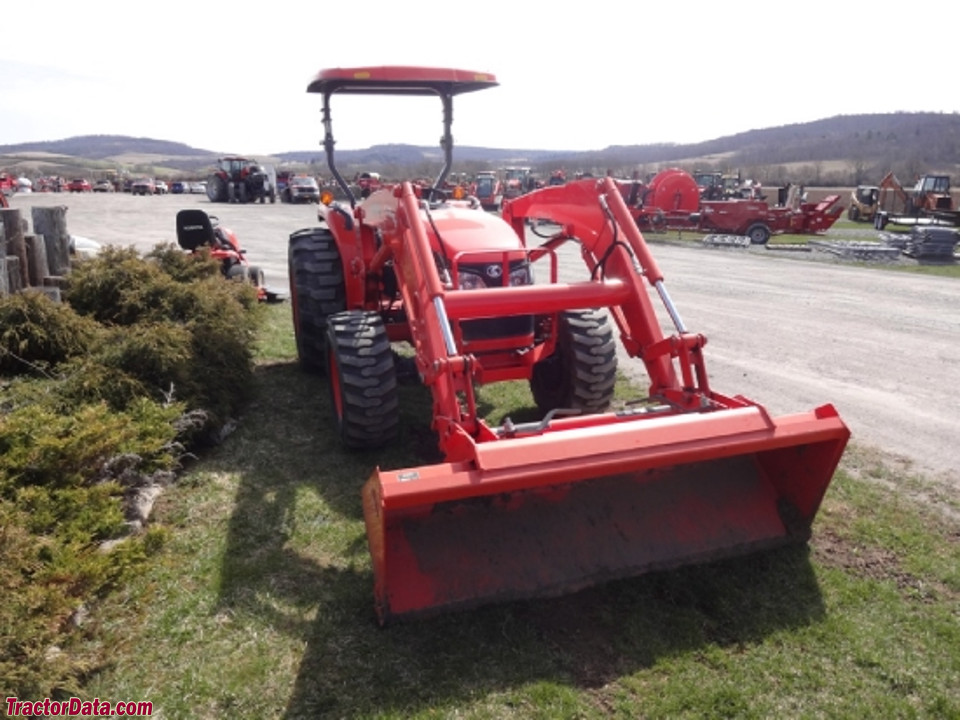

front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA582Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Kubota BH92 Backhoe
Backhoe typeKubota BH92 BackhoeReference
Speeds
With 14.9-26 R1 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
