Tractor · 2020Unverified
Kubota MX5400
Kubota MX5400 — MX Series · 56 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
56 hp
Weight
3474 to 4268 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Original price$22,885 (2021 Gear 2WD ROPS )Reference
Original price$37,531 (2021 Hydro 4WD Cab )Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference

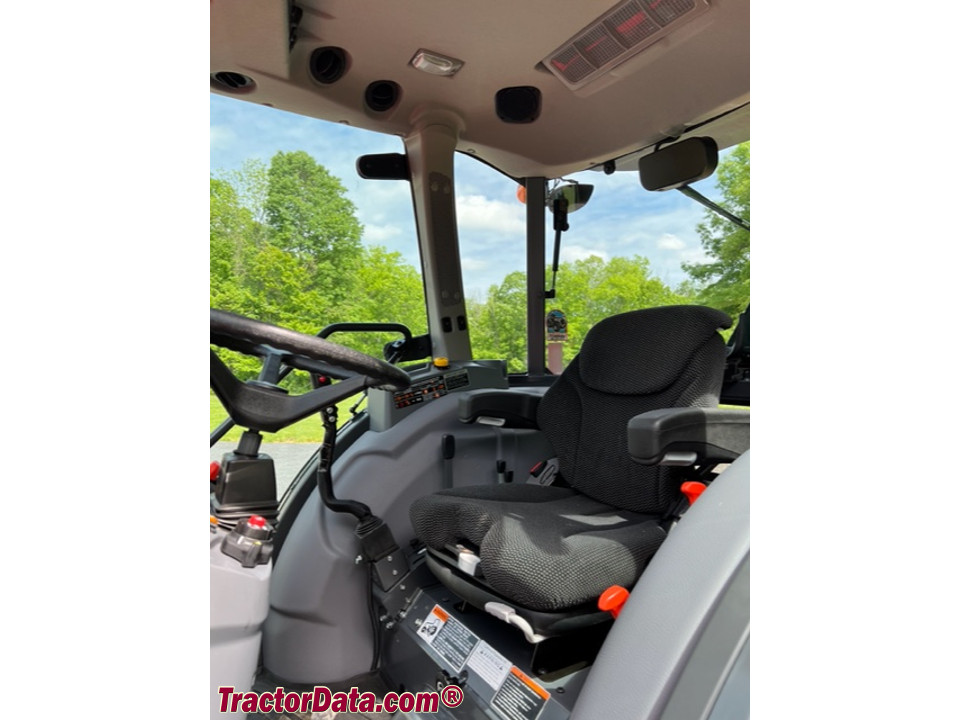

Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Kubota 2.4L 4-cyl dieselReference
Fuel tank45.0 LReference
Engine (gross)41.4 kWReference
Engine (net)39.5 kWReference
Kubota V2403CR-TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke87 x 102 mmReference
Hydro Power (net)40.1 kWReference
Hydro Power (gross)42.5 kWReference
Air cleanerdryReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed synchronized shuttleReference
hydrostaticReference
2WD Gear ROPS1575 kgReference
4WD Gear ROPS1685 kgReference
4WD Gear Cab1928 kgReference
Gear Power (net)39.5 kWReference
Gear Power (gross)41.4 kWReference
Typesynchronized shuttleReference
Gears8 forward and reverseReference
Clutchdry discReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)34.7 kWReference
Typeopen centerReference
Valves3Reference
Pump flow36.0 lpmReference
Steering flow18.5 lpmReference
Rear TypeII/IReference
Controlposition control with optional draft controlReference
Rear lift (at 24"/610mm)1047 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase189 cmReference
Weight3474 to 4268 poundsReference
Front tire7.5L-15Reference
2WD Rear tire14.9-26Reference
2WD Standard tires (ag)Front: 7.5L-15. Rear: 14.9-26Reference
4WD Standard tires (ag)Front: 9.5-16. Rear: 14.9-26Reference
2WD Length324 cmReference
4WD Length319 cmReference
Width177 cmReference
Height (ROPS)243 cmReference
Height (cab)235 cmReference
Ground clearance38 cmReference
2WD Front tread128 to 157 cmReference
4WD Front tread132 cmReference
Rear tread137 to 149 cmReference
4WD Hydro ROPS1693 kgReference
4WD Hydro Cab1935 kgReference
Kubota MX5400 attachments

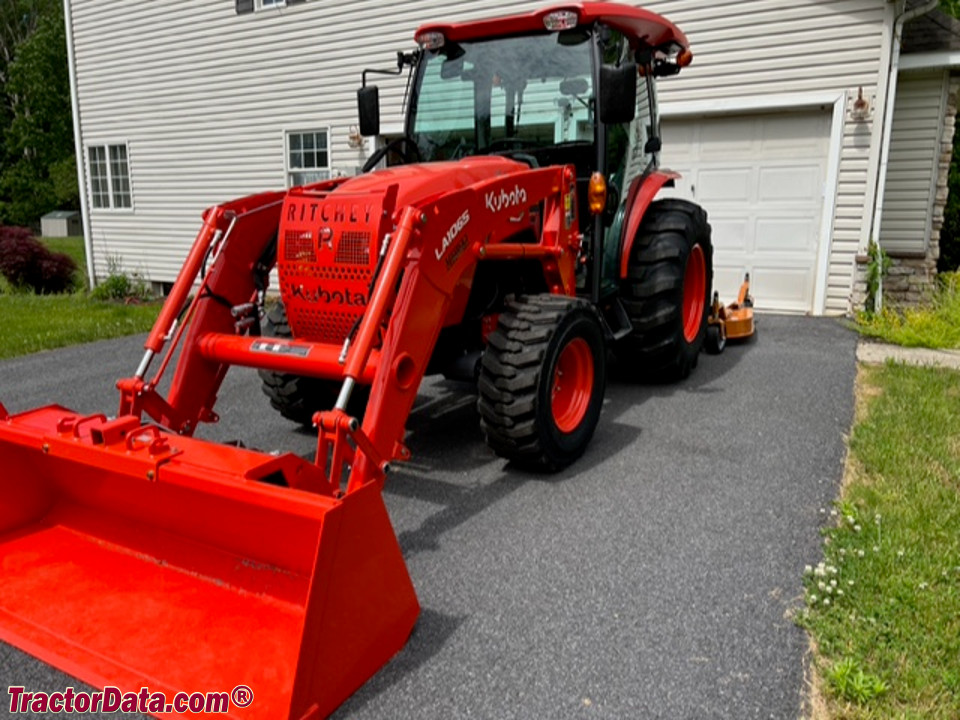

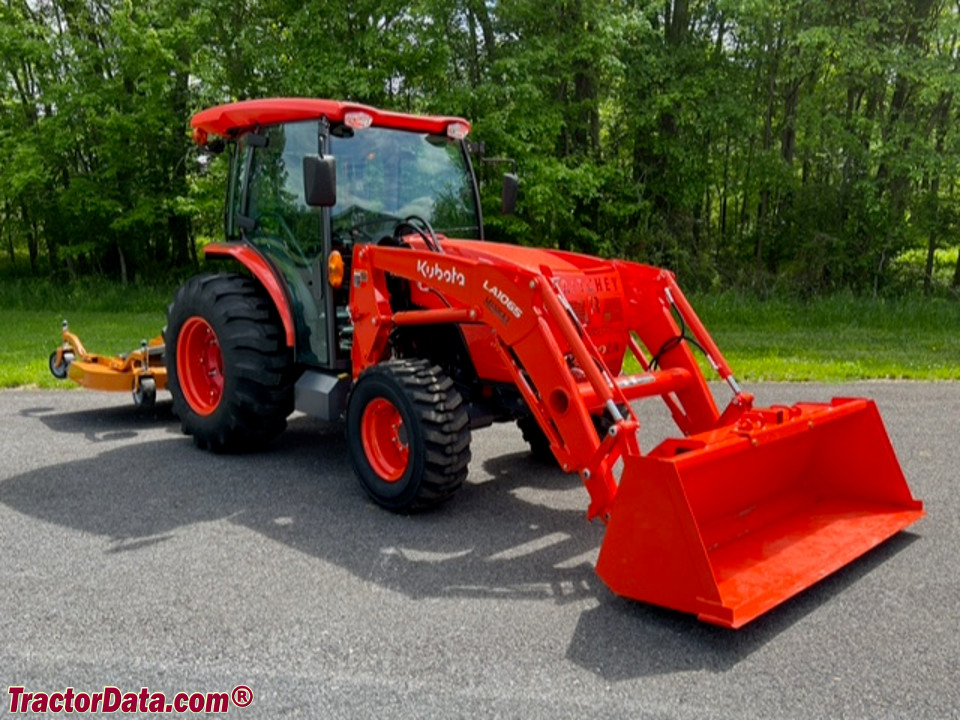

front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps45Reference
Cab Charging amps60Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
The BH92 backhoe was only available on tractors with ROPS.Reference
Kubota BH92 Backhoe
Backhoe typeKubota BH92 BackhoeReference
Transport height254 cmReference
2-Foot flat digging depth278 cmReference
Reach from pivot382 cmReference
Loading height214 cmReference
Bucket Rotation180°Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
