Tractor · 2015Unverified

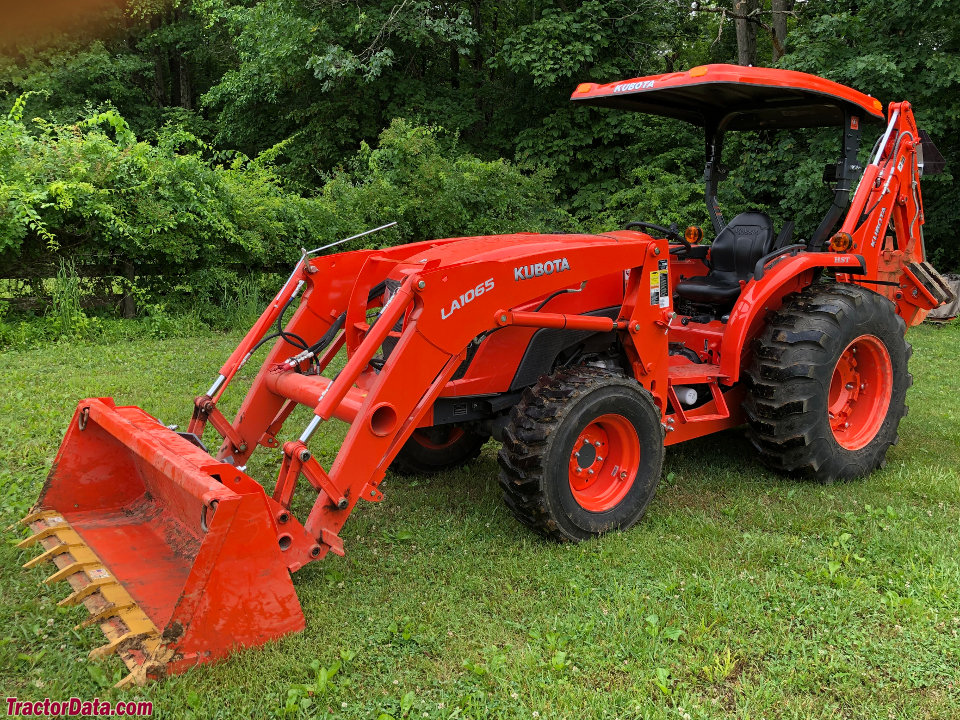

Kubota MX5800

Name: Kubota MX5800
Brand: Kubota

Kubota MX5800 — MX Series · 61 hp. Reference specifications; pending source verification.

The Kubota MX5800 is a tractor with a power rating of 61 hp, positioning it at the lower end of its class. Manufactured from 2015 to 2020, this tractor features a 4-cylinder turbocharged diesel liquid-cooled engine paired with four-wheel drive and a hydrostatic transmission. It has an operating weight of 1693 kg, suitable for operations spanning up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

61 hp

Weight

1693 kg

Catalogue coverage

Variants represented

Richest spec table

73 rows

Recorded power

61 hp

Recorded weight

1693 kg

Transmissions

hydrostatic

Production years

2015-2020

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Original price was $29,905 in 2015Reference

Four-wheel driveReference

Differential lockmechanical rearReference

Steeringhydrostatic powerReference

Mechanical wet disc brakesReference

Two-post foldable ROPS.Reference

Engine

Kubota 2.4L 4-cyl dieselReference

Engine (gross)45.8 kWReference

Engine (net)42.9 kWReference

Kubota V2403CR-TReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.4 LReference

EmissionsTier 4Reference

Emission controldiesel particular filter (DPF)Reference

Power (net)42.9 kWReference

Power (gross)45.8 kWReference

Fuel systemdirect injectionReference

Air cleanerdual dry elementReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Oil capacity9.4 LReference

Coolant capacity6.5 LReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

PTO (claimed)37.4 kWReference

Hydraulic system43.9 LReference

Typeopen centerReference

Capacity43.9 LReference

Valves1 to 3Reference

Pump flow36.0 lpmReference

Total flow54.5 lpmReference

Steering flow18.5 lpmReference

Rear TypeII/IReference

Controlposition controlReference

Controldraft controlReference

Rear lift (at ends)1301 kgReference

Rear lift (at 24"/610mm)1047 kgReference

Rear Armstelescoping low links and stabilizersReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2659Reference

Dimensions

Wheelbase189 cmReference

Weight1693 kgReference

Front tire9.5-16Reference

Rear tire14.9-26Reference

Standard tires (ag)Front: 9.5-16. Rear: 14.9-26Reference

Length318 cmReference

Width177 cmReference

Height (ROPS)243 cmReference

Ground clearance38 cmReference

Front tread132 cmReference

Rear tread137 to 149 cmReference

Kubota MX5800 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps45Reference

Battery CCA600Reference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

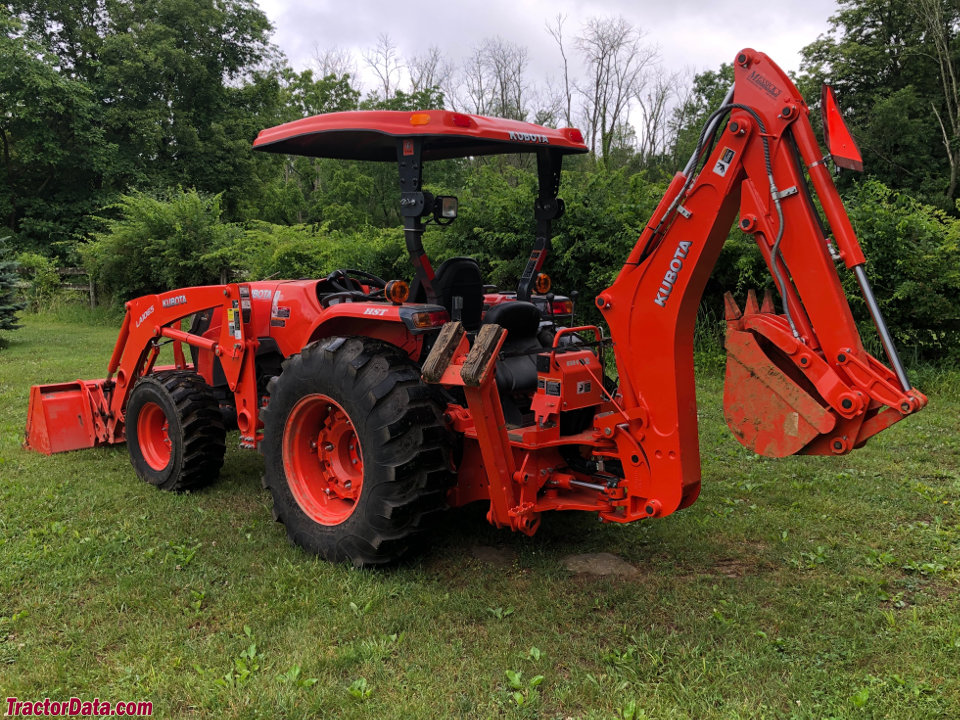

Kubota BH92 Backhoe

Backhoe typeKubota BH92 BackhoeReference

2-Foot flat digging depth278 cmReference

Reach from pivot382 cmReference

Loading height214 cmReference

Bucket Rotation180°Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
