Tractor · 2020Unverified

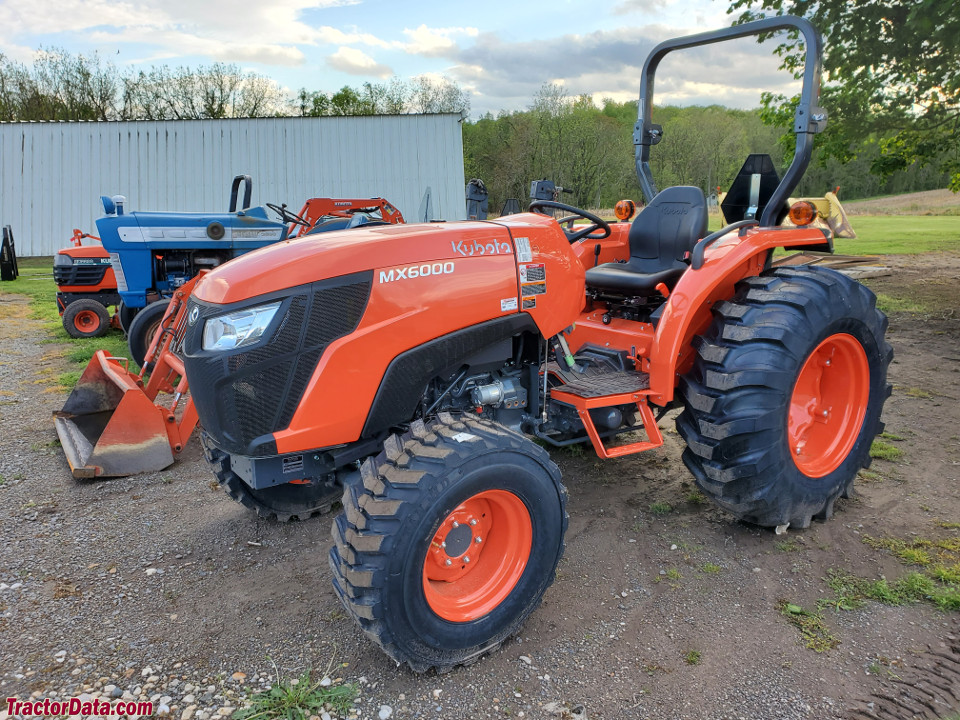

Kubota MX6000
Kubota MX6000 — MX Series · 63 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
63 hp
Weight
3734 to 4268 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Original price$31,248 (2021 ROPS )Reference
Original price$39,059 (2021 Cab )Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Kubota 2.4L 4-cyl dieselReference
Engine (gross)47.3 kWReference
Engine (net)44.4 kWReference
Kubota V2403CR-TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke87 x 102 mmReference
Power (net)44.4 kWReference
Power (gross)47.3 kWReference
Air cleanerdryReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)38.6 kWReference
Hydraulic system43.9 LReference
Typeopen centerReference
Capacity43.9 LReference
Valves3Reference
Pump flow36.0 lpmReference
Steering flow18.5 lpmReference
Rear TypeII/IReference
Controlposition control with optional draft controlReference
Rear lift (at 24"/610mm)1047 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Capacities
Fuel45.0 LReference
Dimensions
Wheelbase189 cmReference
Weight3734 to 4268 poundsReference
Front tire9.5-16Reference
Rear tire14.9-26Reference
Standard tires (ag)Front: 9.5-16. Rear: 14.9-26Reference
Optional tires (ag)Front: 9.5-16. Rear: 13.6-28Reference
Lawn/turf front29x12.50-15Reference
Lawn/turf rear44x18-20Reference
Lawn/turf frontLSW305R343Reference
Lawn/turf rearLSW610R470Reference
Industrial front12-16.5Reference
Industrial rear17.5L-24Reference
Length319 cmReference
Width177 cmReference
Height (ROPS)243 cmReference
Height (cab)235 cmReference
ROPS Weight1693 kgReference
Cab Weight1935 kgReference
Ground clearance38 cmReference
Front tread132 cmReference
Rear tread137 to 149 cmReference
Kubota MX6000 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps45Reference
Cab Charging amps60Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
The BH92 backhoe was only available on tractors with ROPS.Reference
Kubota BH92 Backhoe
Backhoe typeKubota BH92 BackhoeReference
Transport height254 cmReference
2-Foot flat digging depth278 cmReference
Reach from pivot382 cmReference
Loading height214 cmReference
Bucket Rotation180°Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
