Tractor · 2006Unverified

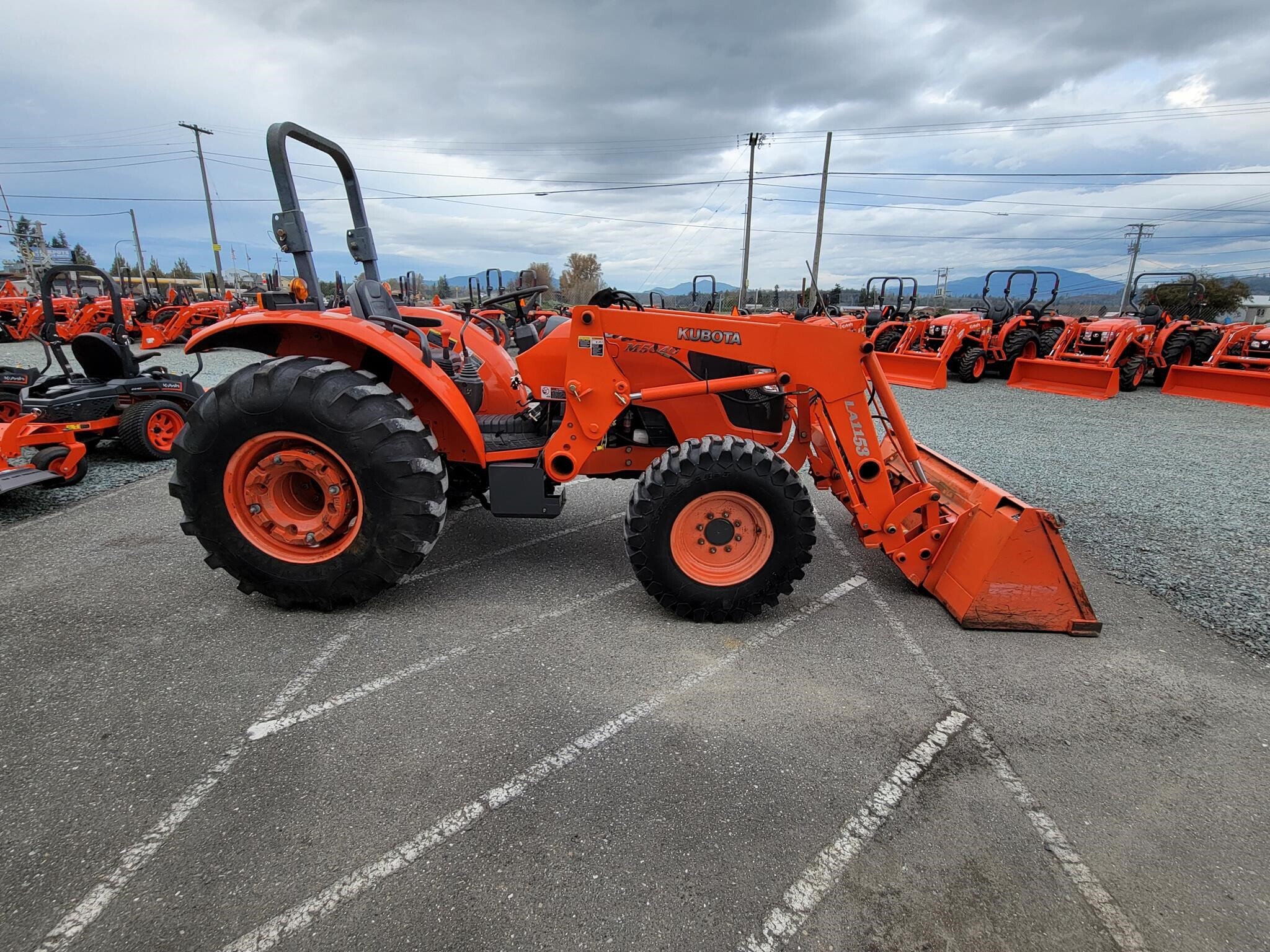

Kubota MZ50
Kubota MZ50 — SynerZ Series · 49 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
49 hp
Weight
2370 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Cab standard.Reference
Engine
Kubota 3.3L 4-cyl dieselReference
Fuel tank65.1 LReference
Engine36.8 kWReference
Kubota V3300Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke98 x 110 mmReference
Power36.8 kWReference
Rated RPM2400Reference
Starter typeelectricReference
Transmission
24-speedReference
Gears24 forward and reverseReference
Clutchelectro-hydraulic wet discReference
Eight gears (1-8) in three ranges (creeper, low, and high) with left-hand shuttle shift.Reference
PTO & Hydraulics
Rear TypeII/IReference
Controlposition and draft controlReference
Rear PTO Type540 (1.375)Reference
Engine RPM544@2400Reference
Engine RPM764@2400Reference
Engine RPM1080@2400Reference
Dimensions
Wheelbase204 cmReference
Weight2370 kgReference
Front tire8-15Reference
Rear tire13.6-28Reference
Standard tires (ag)Front: 8-15. Rear: 13.6-28Reference
Length362 cmReference
Width156 cmReference
Height (cab)241 cmReference
Ground clearance38 cmReference
Front tread130 cmReference
Rear tread121 to 161 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
