Tractor · 2010Unverified

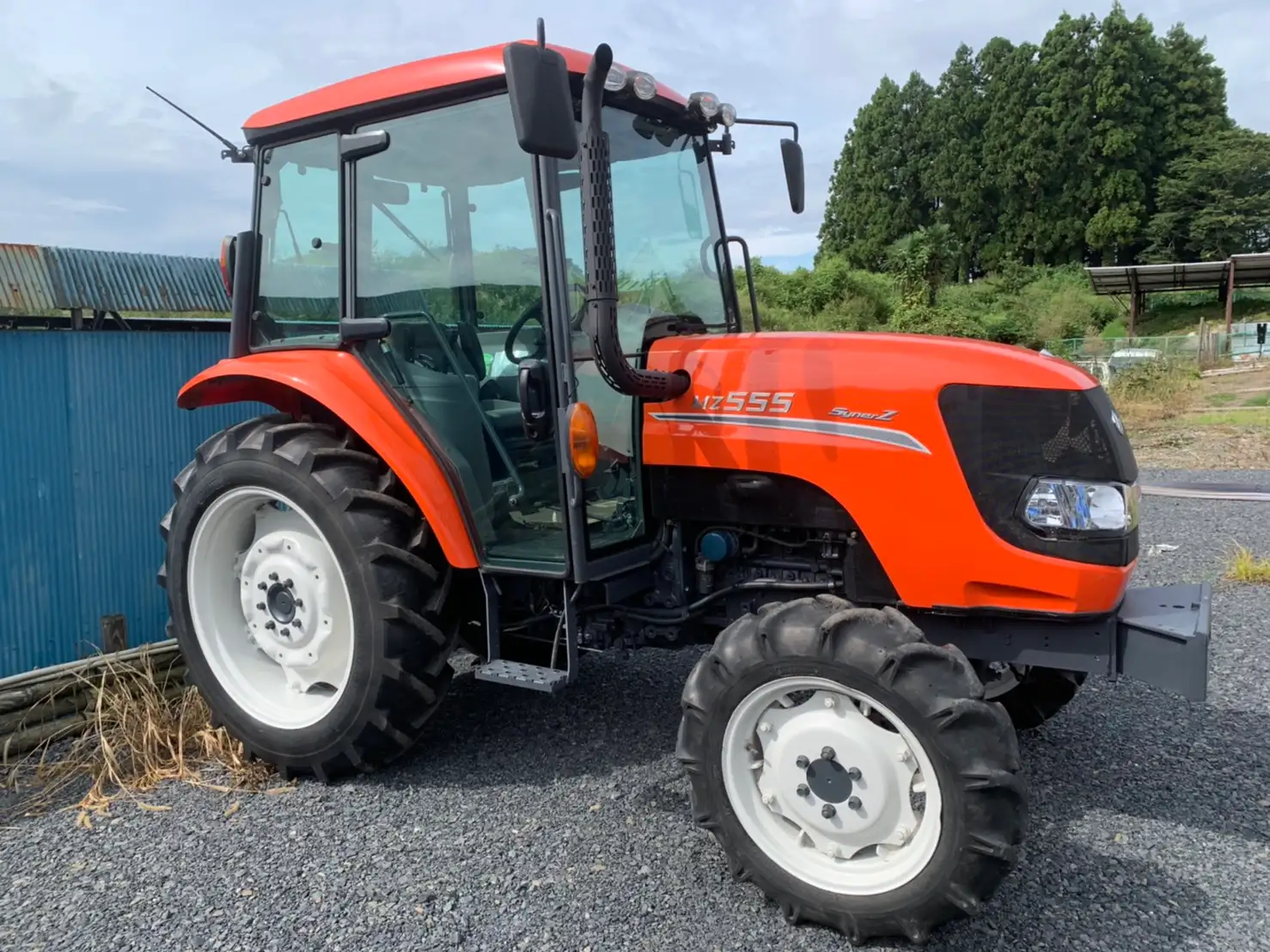

Kubota MZ555

Kubota MZ555 — SynerZ Series · 54 hp. Reference specifications; pending source verification.

The Kubota MZ555 is a compact tractor rated at 54 hp, positioning it amongst smaller models in its class. Manufactured from 2010 to 2014, this tractor features a 4-cylinder diesel liquid-cooled engine and four-wheel drive transmission with a 24-speed gearbox. Its listed weight is 2409 kg, with an intended application for tasks on approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
54 hp
Max power
54.2 RPM
Weight
2409 kg

Catalogue coverage

Variants represented
2
Richest spec table
67 rows
Recorded power
54 hp
Recorded weight
2409 kg
Transmissions
24-speed
Production years
2010-2014
Verified variants
0

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Cab standard.Reference

Variants

MZ555utilityReference
MZ555-PChalf-trackReference

Engine

Kubota 3.6L 4-cyl dieselReference
Fuel tank65.1 LReference
Engine40.4 kWReference
Kubota V3600IDIReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke98 x 120 mmReference
Power40.4 kWReference
Rated RPM2400Reference
Starter typeelectricReference
Fuel TypedieselReference
No of Cylinders4 cylinderReference
Rated engine speed2,400 RPMReference
Bore and stroke3.86x4.72 inchesReference
Cooling systemliquid-cooledReference

Transmission

24-speedReference
Gears24 forward and reverseReference
Clutchelectro-hydraulic wet discReference
Eight gears (1-8) in three ranges (creeper, low, and high) with left-hand shuttle shift.Reference
forward and reverse options24 F and 24 RReference
Wheel Drive4WDReference

PTO & Hydraulics

Rear TypeII/IReference
Controlposition and draft controlReference
Rear PTO Type540 (1.375)Reference
Engine RPM544@2400Reference
Engine RPM764@2400Reference
Engine RPM1080@2400Reference

Dimensions

Wheelbase204 cmReference
Weight2409 kgReference
Front tire8.3-20Reference
Rear tire12.4-32Reference
Standard tires (ag)Front: 8.3-20. Rear: 12.4-32Reference
Length362 cmReference
Width156 cmReference
Height (cab)244 cmReference
Ground clearance40 cmReference
Front tread132 cmReference
Rear tread121 to 171 cmReference

General

Make & ModelKubotaReference

Capacities

Capacity220.9 ciReference

Power

Max Power54.2 RPMReference

PTO

Rear PTO PowerAvailableReference
Rear PTO RPM540 RPMReference
Engine Speed on Rear PTO speed1,080@2,400 RPMReference

Steering & brakes

BrakesMechanical Wet DiscReference
Steering typePowerReference

Hydraulics

Rear Hitch category (SAE designation)Category II/IReference
Rear Hitch Sensing Typeposition and draft controlReference

Dimensions & weight

Height Over Cab244.6 cmReference
Overall Length362.5 cmReference
Overall Width156.5 cmReference
Overall weight2,409.9 kgReference

Wheels & tyres

Rear Wheel Type12.4-32Reference
Rear wheel tread range48 to 67.7 inchesReference
Front Wheel Type8.3-20.Reference
Front Wheel tread range132.1 cmReference

Operator station

Cab AvailabilityCab standard.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
