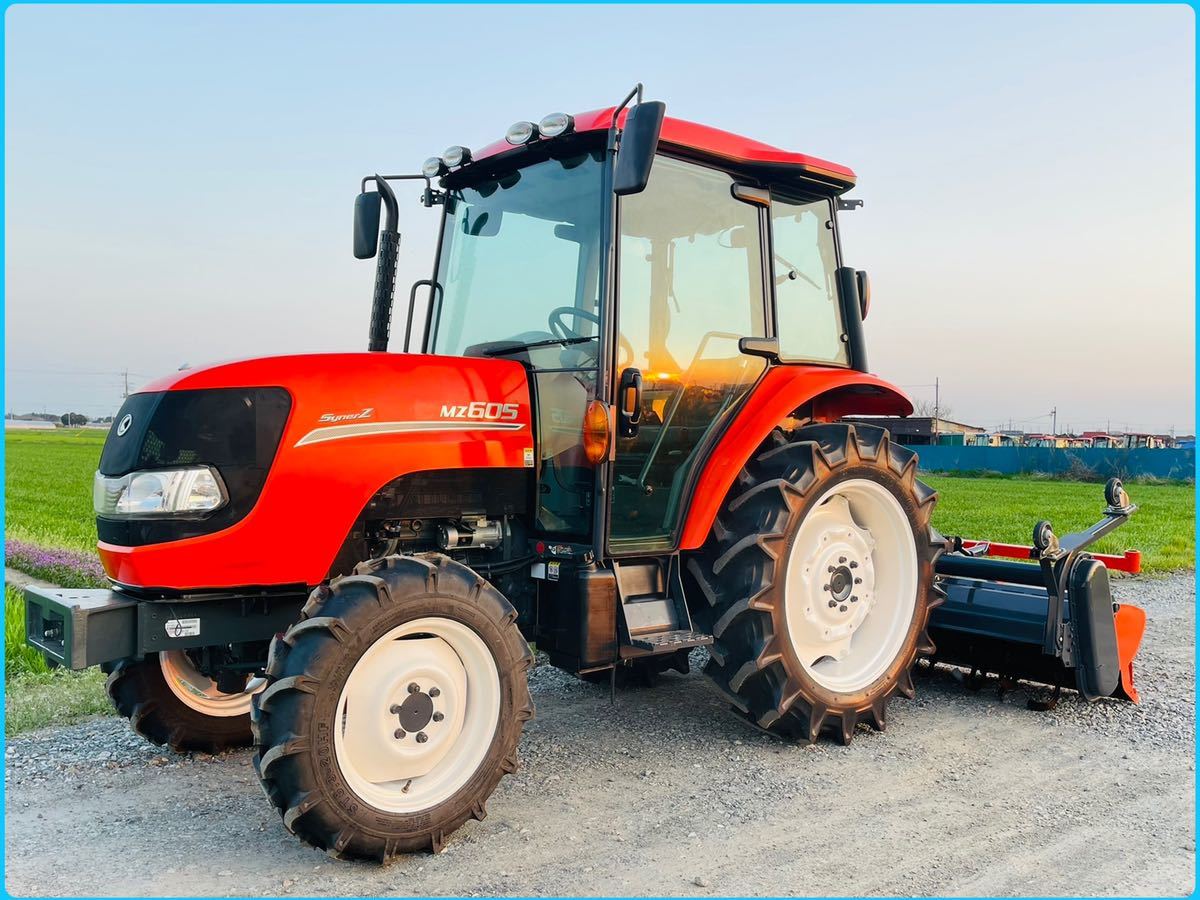

The Kubota MZ60 is a tractor model with a rated power output of 59 hp, categorising it as a lighter model within its class. It was manufactured from 2006 to 2009. The tractor is equipped with a 4-cylinder diesel liquid-cooled engine, paired with a four-wheel drive system and a 24-speed gearbox. Its operating weight is listed at 2409 kg, making it suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Weight
2409 kg
Catalogue coverage
Variants represented
2
Richest spec table
39 rows
Recorded power
59 hp
Recorded weight
2409 kg
Transmissions
24-speed
Production years
2006-2009
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Cab standard.Reference
Engine
Kubota 3.3L 4-cyl dieselReference
Fuel tank65.1 LReference
Engine44.1 kWReference
Kubota V3300Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke98 x 110 mmReference
Power44.1 kWReference
Rated RPM2400Reference
Starter typeelectricReference
Transmission
24-speedReference
Gears24 forward and reverseReference
Clutchelectro-hydraulic wet discReference
Eight gears (1-8) in three ranges (creeper, low, and high) with left-hand shuttle shift.Reference
PTO & Hydraulics
Rear TypeII/IReference
Controlposition and draft controlReference
Rear PTO Type540 (1.375)Reference
Engine RPM544@2400Reference
Engine RPM764@2400Reference
Engine RPM1080@2400Reference
Dimensions
Wheelbase204 cmReference
Weight2409 kgReference
Front tire8.3-20Reference
Rear tire12.4-32Reference
Standard tires (ag)Front: 8.3-20. Rear: 12.4-32Reference
Length362 cmReference
Width156 cmReference
Height (cab)244 cmReference
Ground clearance40 cmReference
Front tread132 cmReference
Rear tread121 to 171 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
