Tractor · 2010Unverified

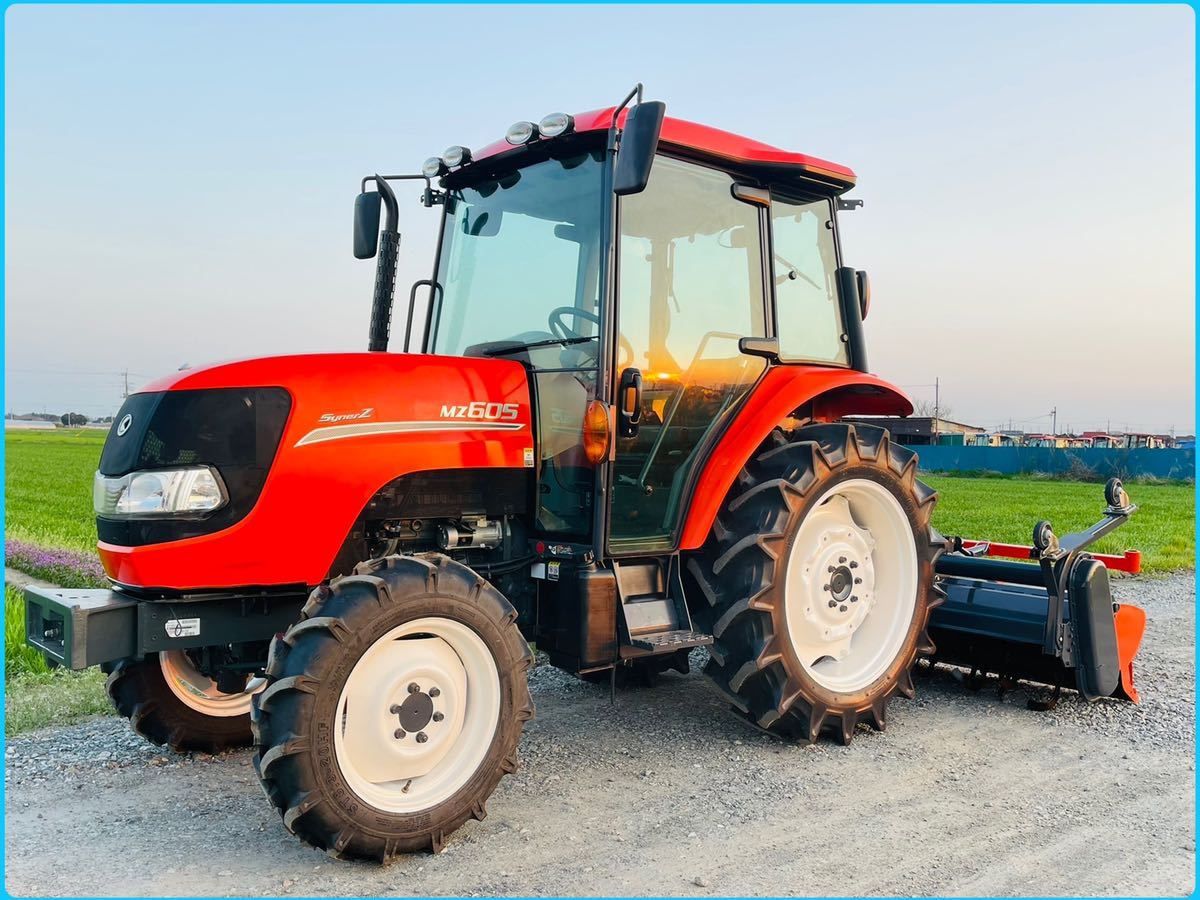

Kubota MZ605

Name: Kubota MZ605
Brand: Kubota

Kubota MZ605 — SynerZ Series · 59 hp. Reference specifications; pending source verification.

The Kubota MZ605 is a tractor with an engine rating of approximately 59 horsepower, positioning it at the lighter end of its class. Production of the MZ605 occurred from 2010 to 2014. The tractor features a 4-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a 24-speed gearbox. It has an operating weight of 2409 kg and is suitable for operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

59 hp

Max power

59.2 RPM

Weight

2409 kg

Catalogue coverage

Variants represented

Richest spec table

65 rows

Recorded power

59 hp

Recorded weight

2409 kg

Transmissions

24-speed

Production years

2010-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Cab standard.Reference

Engine

Kubota 3.6L 4-cyl dieselReference

Fuel tank65.1 LReference

Engine44.1 kWReference

Kubota V3600IDIReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.6 LReference

Bore/Stroke98 x 120 mmReference

Power44.1 kWReference

Rated RPM2400Reference

Starter typeelectricReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,400 RPMReference

Bore and stroke3.86x4.72 inchesReference

Cooling systemliquid-cooledReference

Transmission

24-speedReference

Gears24 forward and reverseReference

Clutchelectro-hydraulic wet discReference

Eight gears (1-8) in three ranges (creeper, low, and high) with left-hand shuttle shift.Reference

forward and reverse options24 F and 24 RReference

Wheel Drive4WDReference

PTO & Hydraulics

Rear TypeII/IReference

Controlposition and draft controlReference

Rear PTO Type540 (1.375)Reference

Engine RPM544@2400Reference

Engine RPM764@2400Reference

Engine RPM1080@2400Reference

Dimensions

Wheelbase204 cmReference

Weight2409 kgReference

Front tire8.3-20Reference

Rear tire12.4-32Reference

Standard tires (ag)Front: 8.3-20. Rear: 12.4-32Reference

Length362 cmReference

Width156 cmReference

Height (cab)244 cmReference

Ground clearance40 cmReference

Front tread132 cmReference

Rear tread121 to 171 cmReference

General

Make & ModelKubotaReference

Capacities

Capacity220.9 ciReference

Power

Max Power59.2 RPMReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed1,080@2,400 RPMReference

Steering & brakes

BrakesMechanical Wet DiscReference

Steering typePowerReference

Hydraulics

Rear Hitch category (SAE designation)Category II/IReference

Rear Hitch Sensing Typeposition and draft controlReference

Dimensions & weight

Height Over Cab244.6 cmReference

Overall Length362.5 cmReference

Overall Width156.5 cmReference

Overall weight2,409.9 kgReference

Wheels & tyres

Rear Wheel Type12.4-32Reference

Rear wheel tread range48 to 67.7 inchesReference

Front Wheel Type8.3-20.Reference

Front Wheel tread range132.1 cmReference

Operator station

Cab AvailabilityCab standard.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
