Tractor · 2010Unverified

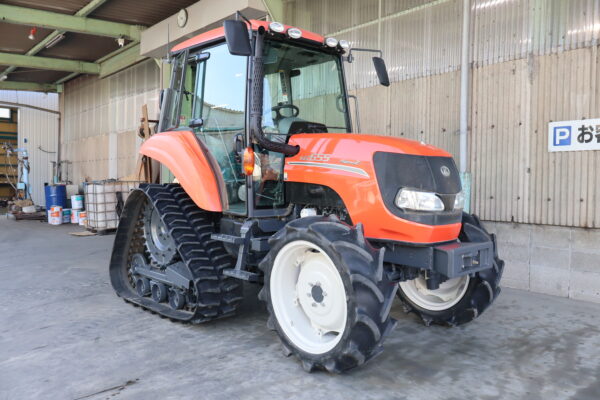

Kubota MZ655-PC

Name: Kubota MZ655-PC
Brand: Kubota

Kubota MZ655-PC — SynerZ Series · 64 hp. Reference specifications; pending source verification.

The Kubota MZ655-PC is a 64 hp tractor, categorised as one of the more compact options in its class. Manufactured in 2010, it is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine. This power unit drives through a 24-speed gearbox, which is paired with a tracked undercarriage. The tractor is designed for use on areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

64 hp

Catalogue coverage

Variants represented

Richest spec table

45 rows

Recorded power

64 hp

Transmissions

24-speed

Production years

2010-2010

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Half-track Crawler tractorReference

Drivehalf-trackReference

Power steeringReference

Mechanical wet disc brakesReference

Cab standard.Reference

Variants

MZ655utilityReference

MZ655-PChalf-trackReference

Engine

Kubota 3.6L 4-cyl dieselReference

Fuel tank90.1 LReference

Engine47.8 kWReference

Kubota V3600IDI-TReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.6 LReference

Bore/Stroke98 x 120 mmReference

Power47.8 kWReference

Rated RPM2400Reference

Starter typeelectricReference

Transmission

24-speedReference

Gears24 forward and reverseReference

Clutchelectro-hydraulic wet discReference

Eight gears (1-8) in three ranges (creeper, low, and high) with left-hand shuttle shift.Reference

PTO & Hydraulics

Rear TypeII/IReference

Controlposition and draft controlReference

Rear PTO Type540 (1.375)Reference

Engine RPM544@2400Reference

Engine RPM764@2400Reference

Engine RPM1080@2400Reference

Dimensions

Wheelbase215 cmReference

Front tire9.5-24Reference

Rear tiretracksReference

Ag front9.5-24Reference

Ag front320/60-26Reference

Ag rear450mm trackReference

Ag rear280mm trackReference

Length374 cmReference

Width188 cmReference

Width160 cmReference

Height (cab)257 cmReference

Ground clearance46 cmReference

Front tread119 to 149 cmReference

Rear tread144 cmReference

Rear tread132 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
