Tractor · 2006Unverified

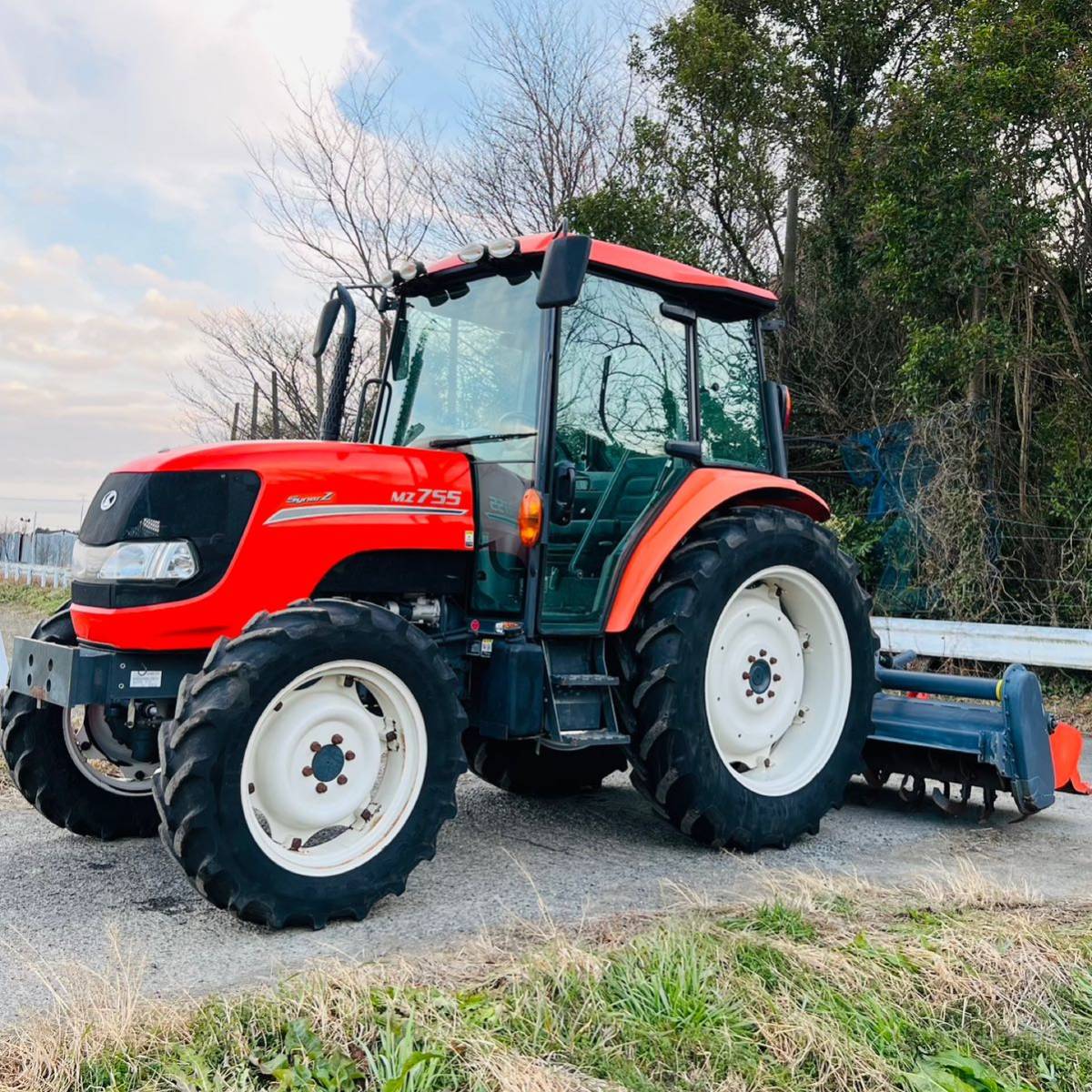

Kubota MZ75
Kubota MZ75 — SynerZ Series · 74 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
74 hp
Weight
2580 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Cab standard.Reference
Variants
MZ75utilityReference
MZ75-HPChalf-trackReference
Engine
Kubota 3.3L 4-cyl dieselReference
Fuel tank104.8 LReference
Engine55.2 kWReference
Kubota V3300-TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke98 x 110 mmReference
Power55.2 kWReference
Rated RPM2600Reference
Starter typeelectricReference
Transmission
24-speedReference
Gears24 forward and reverseReference
Clutchelectro-hydraulic wet discReference
Eight gears (1-8) in three ranges (creeper, low, and high) with left-hand shuttle shift.Reference
PTO & Hydraulics
Rear TypeII/IReference
Controlposition and draft controlReference
Rear PTO Type540 (1.375)Reference
Engine RPM589@2600Reference
Engine RPM828@2600Reference
Engine RPM1170@2600Reference
Dimensions
Wheelbase215 cmReference
Weight2580 kgReference
Front tire9.5-24Reference
Rear tire16.9-30Reference
Standard tires (ag)Front: 9.5-24. Rear: 16.9-30Reference
Length362 cmReference
Width172 cmReference
Height (cab)249 cmReference
Ground clearance46 cmReference
Front tread119 to 150 cmReference
Rear tread132 to 171 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
