Tractor · 2010Unverified

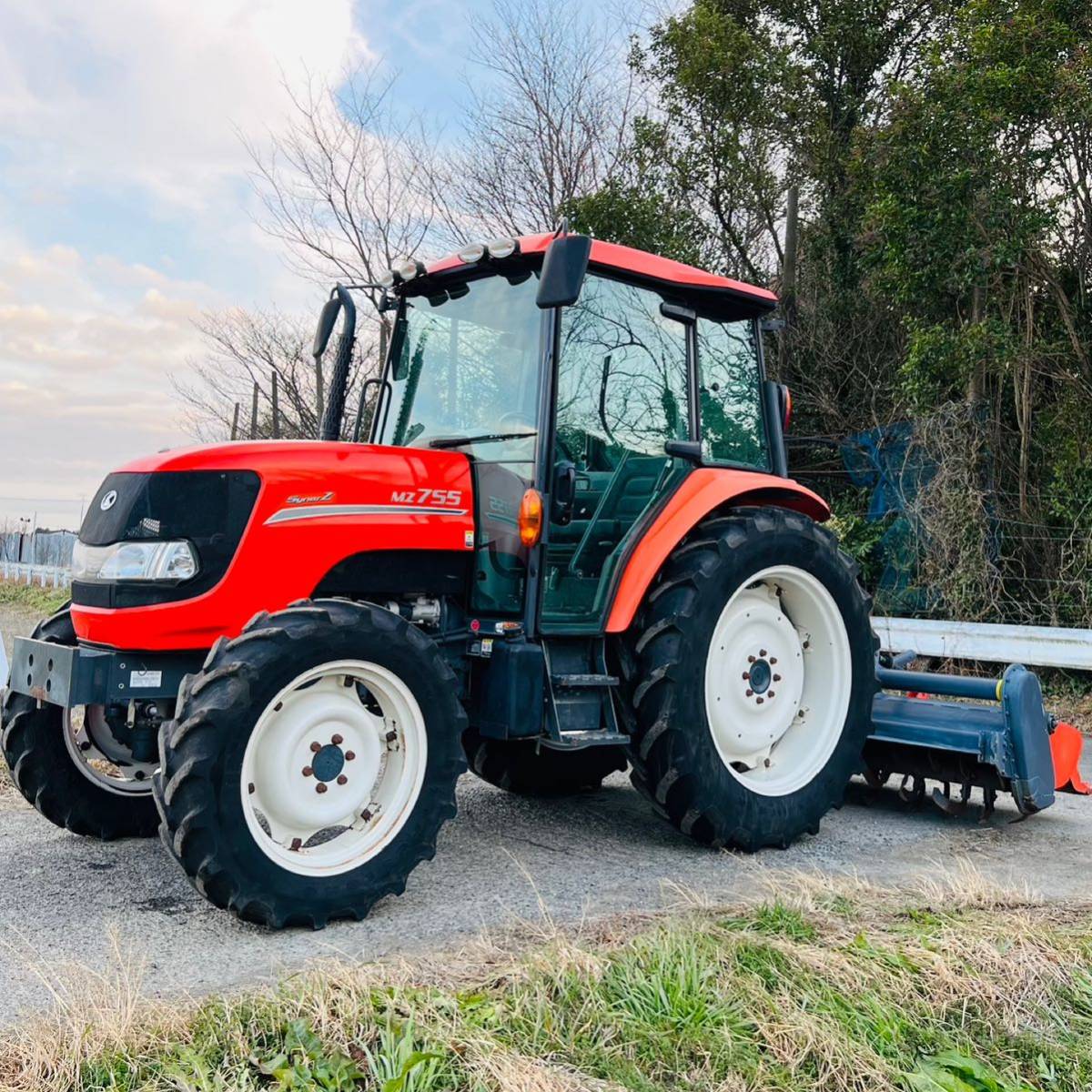

Kubota MZ755

Name: Kubota MZ755
Brand: Kubota

Kubota MZ755 — SynerZ Series · 74 hp. Reference specifications; pending source verification.

The Kubota MZ755 is a tractor with a rated output of 74 hp, positioned roughly in the middle of its class for power. It was manufactured from 2010 to 2014. The tractor is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, which transmits power to four-wheel drive via a 24-speed gearbox. Its listed weight is 2580 kg, suitable for tasks on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

74 hp

Max power

74 RPM

Weight

2580 kg

Catalogue coverage

Variants represented

Richest spec table

67 rows

Recorded power

74 hp

Recorded weight

2580 kg

Transmissions

24-speed

Production years

2010-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Cab standard.Reference

Variants

MZ755utilityReference

MZ755-PChalf-trackReference

Engine

Kubota 3.6L 4-cyl dieselReference

Fuel tank104.8 LReference

Engine55.2 kWReference

Kubota V3600IDI-TReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.6 LReference

Bore/Stroke98 x 120 mmReference

Power55.2 kWReference

Rated RPM2400Reference

Starter typeelectricReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,400 RPMReference

Bore and stroke3.86x4.72 inchesReference

Cooling systemliquid-cooledReference

Transmission

24-speedReference

Gears24 forward and reverseReference

Clutchelectro-hydraulic wet discReference

Eight gears (1-8) in three ranges (creeper, low, and high) with left-hand shuttle shift.Reference

forward and reverse options24 F and 24 RReference

Wheel Drive4WDReference

PTO & Hydraulics

Rear TypeII/IReference

Controlposition and draft controlReference

Rear PTO Type540 (1.375)Reference

Engine RPM544@2400Reference

Engine RPM764@2400Reference

Engine RPM1080@2400Reference

Dimensions

Wheelbase215 cmReference

Weight2580 kgReference

Front tire9.5-24Reference

Rear tire16.9-30Reference

Standard tires (ag)Front: 9.5-24. Rear: 16.9-30Reference

Length362 cmReference

Width172 cmReference

Height (cab)249 cmReference

Ground clearance46 cmReference

Front tread121 to 150 cmReference

Rear tread132 to 171 cmReference

General

Make & ModelKubotaReference

Capacities

Capacity220.9 ciReference

Power

Max Power74 RPMReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed1,080@2,400 RPMReference

Steering & brakes

BrakesMechanical Wet DiscReference

Steering typePowerReference

Hydraulics

Rear Hitch category (SAE designation)Category II/IReference

Rear Hitch Sensing Typeposition and draft controlReference

Dimensions & weight

Height Over Cab249.9 cmReference

Overall Length362.5 cmReference

Overall Width173 cmReference

Overall weight2,580 kgReference

Wheels & tyres

Rear Wheel Type16.9-30Reference

Rear wheel tread range52 to 67.7 inchesReference

Front Wheel Type9.5-24.Reference

Front Wheel tread range48 to 59.1 inchesReference

Operator station

Cab AvailabilityCab standard.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
