Tractor · 1965Unverified

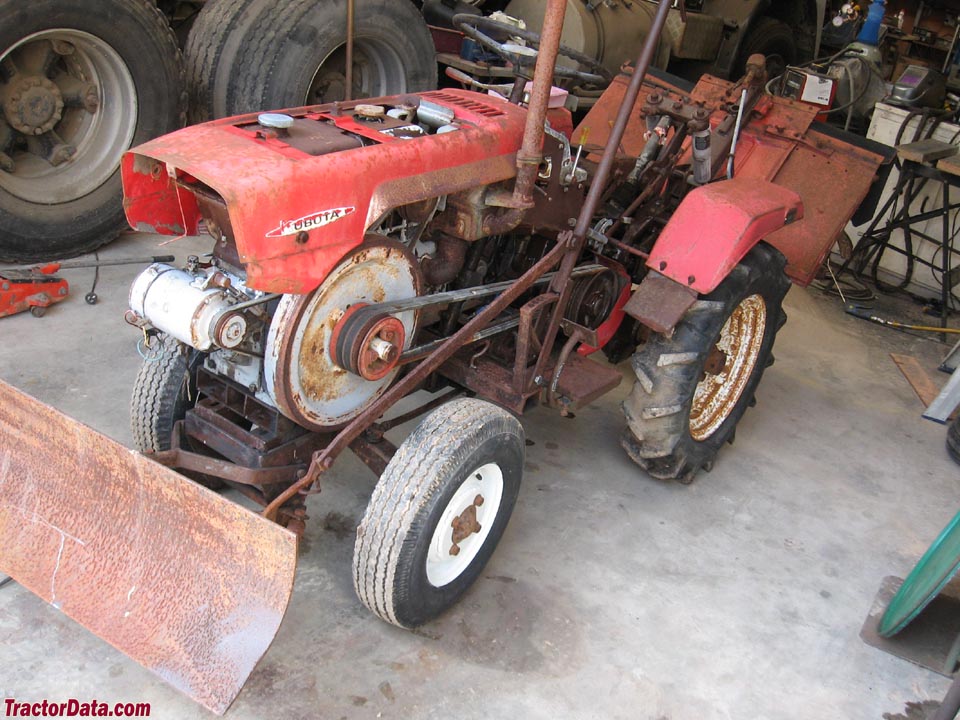

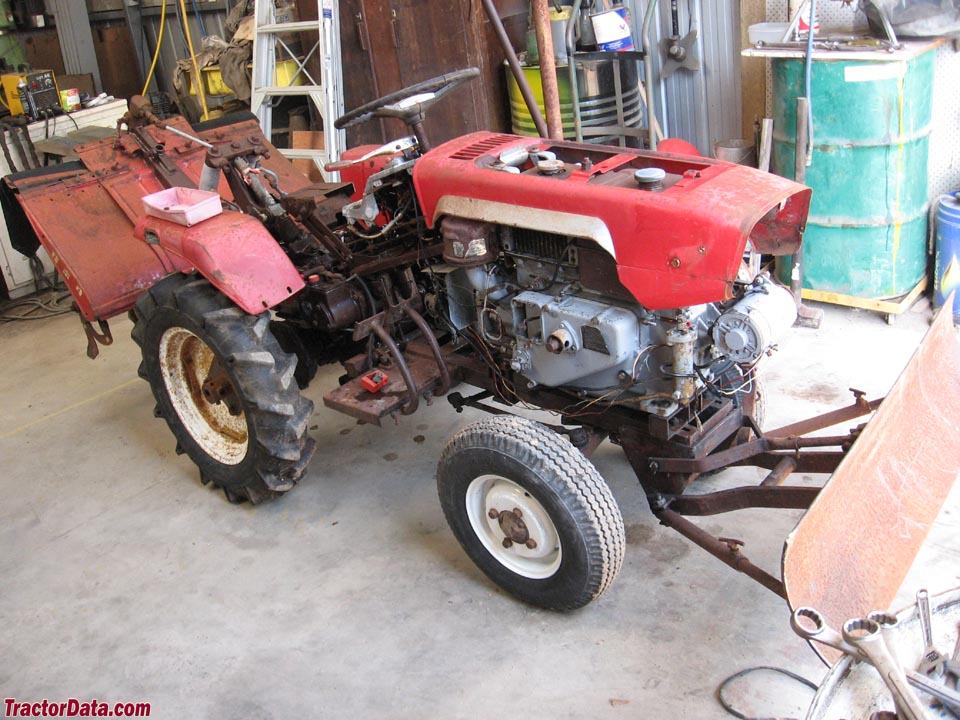

Kubota RV Ridevator

Name: Kubota RV Ridevator
Brand: Kubota

Kubota RV Ridevator — Compact Utility tractor · 9 hp. Reference specifications; pending source verification.

The Kubota RV Ridevator is a tractor with a rated power of 9 hp, categorising it at the lighter end of its class. Produced from 1965 to 1970, this model features a 1-cylinder diesel liquid-cooled engine and two-wheel drive with a 6-speed gearbox. Its listed operating weight is 521 kg, and it is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

9 hp

Max power

5.0 kW

Weight

521 kg

Catalogue coverage

Variants represented

Richest spec table

45 rows

Recorded power

9 hp

Recorded weight

521 kg

Transmissions

6-speed gear

Production years

1965-1970

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Built in JapanReference

Information on the Kubota Ridevator is scarce. The machine appears to have been sold in North America and Australia in the mid-to-late 1960s. Model numbers RV70 and RV90 are associated with the tractor.Reference

Two-wheel driveReference

SteeringmanualReference

Mechanical expanding shoe brakesReference

Open operator station.Reference

Engine

Kubota 0.6L 1-cyl gasolineReference

Kubota 0.7L 2-cyl dieselReference

Engine6.7 kWReference

Drawbar (tested)5.0 kWReference

KubotaReference

gasolineReference

1-cylinderReference

liquid-cooledReference

Displacement0.6 LReference

Bore/Stroke95 x 90 mmReference

Air cleaneroil bathReference

Compression5.7:1Reference

Rated RPM2000Reference

StarterelectricReference

Starter volts12Reference

dieselReference

2-cylinderReference

Displacement0.7 LReference

Power6.7 kWReference

Power at rated engine speed6.6 kWReference

Max power5.0 kWReference

Transmission

6-speed gearReference

Typebelt-driven gearReference

Gears6 forward and 2 reverseReference

Clutchdry discReference

PTO & Hydraulics

PTO (tested)6.6 kWReference

Dimensions

Wheelbase110 cmReference

Weight521 kgReference

Front tread67 to 83 cmReference

Rear tread64 to 89 cmReference

Test results

Gasoline 6-speed 2WDJuly 30 - August 6, 1965Link: Nebraska Tractor Test 906 fileReference

PTO performanceReference

Fuel use3.8 l/hourReference

Drawbar performanceReference

Gear 5 used for power test.Reference

Max pull327 kgReference

Gear 4 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
