Tractor · 2011Unverified

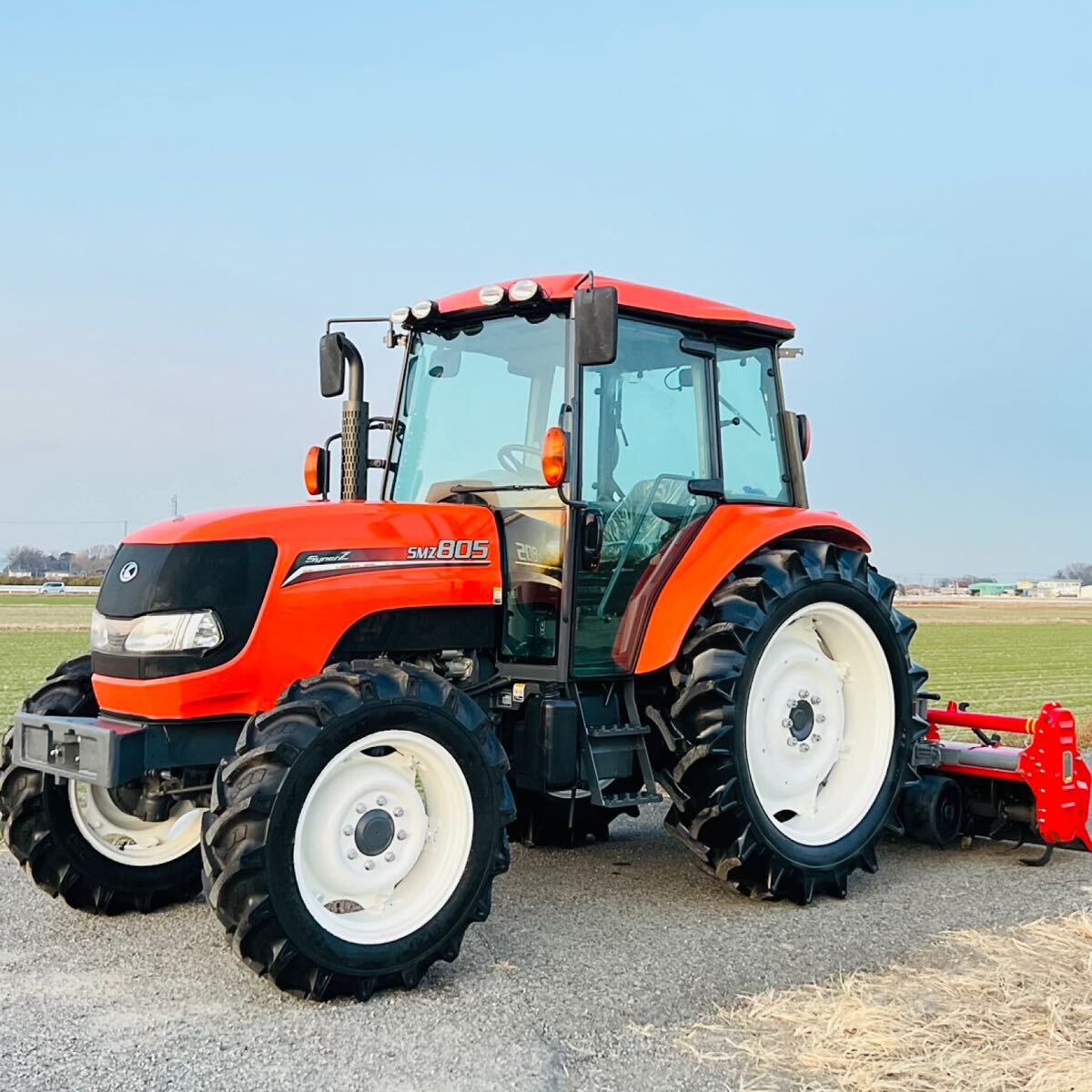

Kubota SMZ805

Name: Kubota SMZ805
Brand: Kubota

Kubota SMZ805 — Super SynerZ Series · 79 hp. Reference specifications; pending source verification.

The Kubota SMZ805 is a tractor rated at 79 hp, positioning it centrally within its class in terms of power output. Manufactured between 2011 and 2014, the SMZ805 features a 4-cylinder turbocharged diesel liquid-cooled engine, which powers four-wheel drive via a 24-speed gearbox. The listed weight of the tractor is 3059 kg. It is designed for tasks involving areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

79 hp

Max power

78.9 hp

Weight

3059 kg

Catalogue coverage

Variants represented

Richest spec table

71 rows

Recorded power

79 hp

Recorded weight

3059 kg

Transmissions

24-speed

Production years

2011-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Cab standard.Reference

Variants

SMZ805utilityReference

SMZ805-PChalf-trackReference

Engine

Kubota 3.8L 4-cyl dieselReference

Fuel tank104.8 LReference

Engine58.8 kWReference

Kubota V3800-TReference

turbocharged dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement3.8 LReference

Bore/Stroke100 x 120 mmReference

Power58.8 kWReference

Rated RPM2600Reference

Starter typeelectricReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,600 RPMReference

Bore and stroke3.94x4.72 inchesReference

Cooling systemliquid-cooledReference

Transmission

24-speedReference

Gears24 forward and reverseReference

Clutchelectro-hydraulic wet discReference

Eight gears (1-8) in three ranges (creeper, low, and high) with left-hand shuttle shift.Reference

forward and reverse options24F and 24RReference

Wheel Drive4WDReference

PTO & Hydraulics

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift3299 kgReference

Rear PTO Type540 (1.375)Reference

Engine RPM589@2600Reference

Engine RPM828@2600Reference

Engine RPM1170@2600Reference

Dimensions

Wheelbase225 cmReference

Weight3059 kgReference

Front tire9.5-24Reference

Rear tire16.9-30Reference

Standard tires (ag)Front: 9.5-24. Rear: 16.9-30Reference

Length395 cmReference

Width191 cmReference

Height (cab)254 cmReference

Ground clearance42 cmReference

Front tread120 to 139 cmReference

Front tread133 to 151 cmReference

Rear tread139 to 189 cmReference

General

Make & ModelKubotaReference

Capacities

Capacity230 ciReference

Hydraulics

Capacity Valves16 valveReference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch maximum lift capacity3,299.9 kgReference

Rear Hitch Sensing Typeposition and draft controlReference

Power

Max Power78.9 hpReference

PTO

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed1,170@2,600 RPMReference

Steering & brakes

Brakesmechanical wet discReference

Steering typepowerReference

Dimensions & weight

Height Over Cab254.5 cmReference

Overall Length395.5 cmReference

Overall Width191 cmReference

Overall weight3,059.9 kgReference

Wheels & tyres

Rear Wheel Type16.9-30Reference

Rear wheel tread range55.1 to 74.8 inchesReference

Front Wheel Type9.5-24Reference

Front Wheel tread range52.4 to 59.8 inchesReference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialCab standard.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
