Tractor · 2006Unverified

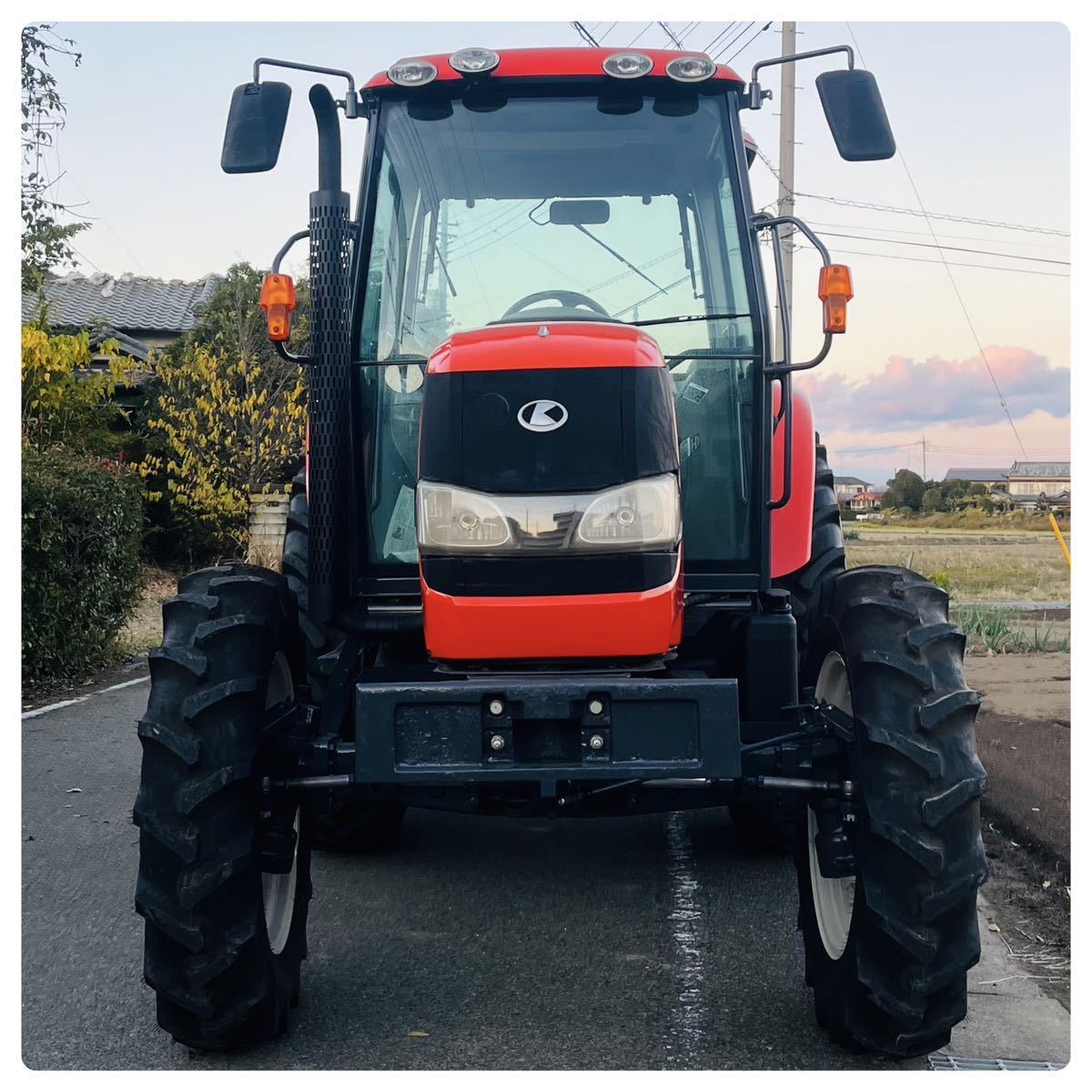

Kubota SMZ85

Name: Kubota SMZ85
Brand: Kubota

Kubota SMZ85 — Super SynerZ Series · 84 hp. Reference specifications; pending source verification.

The Kubota SMZ85 is a tractor with an 84 hp rated power, a mid-range figure for its class, and was manufactured from 2006 to 2010. It features a 4-cylinder turbocharged diesel liquid-cooled engine and four-wheel drive with a 24-speed gearbox. The tractor's operating weight is listed at 2919 kg and is suitable for operations spanning up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

84 hp

Max power

83.8 hp

Weight

2919 kg

Catalogue coverage

Variants represented

Richest spec table

69 rows

Recorded power

84 hp

Recorded weight

2919 kg

Transmissions

24-speed

Production years

2006-2010

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Cab standard.Reference

Variants

SMZ85utilityReference

SMZ85-HPChalf-trackReference

Engine

Kubota 3.8L 4-cyl dieselReference

Fuel tank104.8 LReference

Engine62.5 kWReference

Kubota V3800-TReference

turbocharged dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement3.8 LReference

Bore/Stroke100 x 120 mmReference

Power62.5 kWReference

Rated RPM2600Reference

Starter typeelectricReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,600 RPMReference

Bore and stroke3.94x4.72 inchesReference

Cooling systemliquid-cooledReference

Transmission

24-speedReference

Gears24 forward and reverseReference

Clutchelectro-hydraulic wet discReference

Eight gears (1-8) in three ranges (creeper, low, and high) with left-hand shuttle shift.Reference

forward and reverse options24F and 24RReference

Wheel Drive4WDReference

PTO & Hydraulics

Rear TypeIIReference

Controlposition and draft controlReference

Rear PTO Type540 (1.375)Reference

Engine RPM589@2600Reference

Engine RPM828@2600Reference

Engine RPM1170@2600Reference

Dimensions

Wheelbase225 cmReference

Weight2919 kgReference

Front tire9.5-24Reference

Rear tire12.4-38Reference

Standard tires (ag)Front: 9.5-24. Rear: 12.4-38Reference

Length379 cmReference

Width182 cmReference

Height (cab)254 cmReference

Ground clearance43 cmReference

Front tread120 to 139 cmReference

Front tread133 to 151 cmReference

Rear tread119 to 189 cmReference

General

Make & ModelKubotaReference

Capacities

Capacity230 ciReference

Hydraulics

Capacity Valves16 valveReference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch Sensing Typeposition and draft controlReference

Power

Max Power83.8 hpReference

PTO

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed1,170@2,600 RPMReference

Steering & brakes

Brakesmechanical wet discReference

Steering typepowerReference

Dimensions & weight

Height Over Cab254.5 cmReference

Overall Length380 cmReference

Overall Width182.6 cmReference

Overall weight2,919.8 kgReference

Wheels & tyres

Rear Wheel Type12.4-38Reference

Rear wheel tread range47.2 to 74.8 inchesReference

Front Wheel Type9.5-24Reference

Front Wheel tread range52.4 to 59.8 inchesReference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialCab standard.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
