Tractor · 2011Unverified

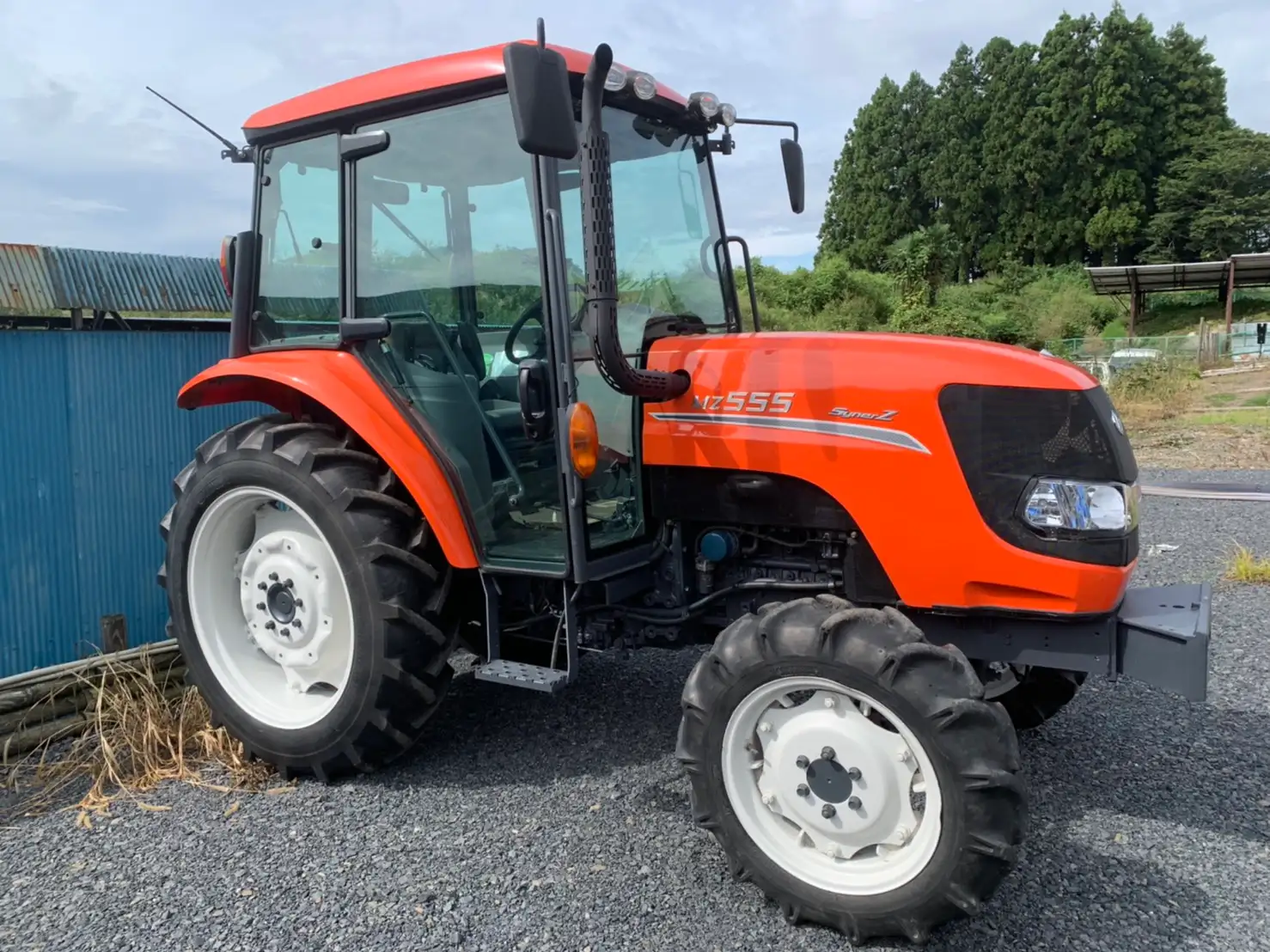

Kubota SMZ955-PC

Name: Kubota SMZ955-PC
Brand: Kubota

Kubota SMZ955-PC — Super SynerZ Series · 94 hp. Reference specifications; pending source verification.

The Kubota SMZ955-PC is a tractor model with a rated output of 94 hp, positioning it in the middle of its class for power. The SMZ955-PC was manufactured between 2011 and 2014. This tractor is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, which drives a tracked undercarriage via a 24-speed gearbox. Its listed weight is 3539 kg, making it suitable for applications covering an area of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

94 hp

Weight

3539 kg

Catalogue coverage

Variants represented

Richest spec table

47 rows

Recorded power

94 hp

Recorded weight

3539 kg

Transmissions

24-speed

Production years

2011-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Half-track Crawler tractorReference

Drivehalf-trackReference

Power steeringReference

Mechanical wet disc brakesReference

Cab standard.Reference

Variants

SMZ955utilityReference

SMZ955-PChalf-trackReference

Engine

Kubota 3.8L 4-cyl dieselReference

Fuel tank90.1 LReference

Engine69.9 kWReference

Kubota V3800-TReference

turbocharged dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement3.8 LReference

Bore/Stroke100 x 120 mmReference

Power69.9 kWReference

Rated RPM2600Reference

Starter typeelectricReference

Transmission

24-speedReference

Gears24 forward and reverseReference

Clutchelectro-hydraulic wet discReference

Eight gears (1-8) in three ranges (creeper, low, and high) with left-hand shuttle shift.Reference

PTO & Hydraulics

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift3299 kgReference

Rear PTO Type540 (1.375)Reference

Engine RPM589@2600Reference

Engine RPM828@2600Reference

Engine RPM1170@2600Reference

Dimensions

Wheelbase225 cmReference

Weight3539 kgReference

Front tire9.5-24Reference

Rear tiretracksReference

Ag front9.5-24Reference

Ag front320/60-26Reference

Ag rear450mm trackReference

Ag rear280mm trackReference

Length395 cmReference

Width188 cmReference

Width160 cmReference

Height (cab)258 cmReference

Ground clearance46 cmReference

Front tread152 cmReference

Rear tread144 cmReference

Rear tread132 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
