Tractor · 1997Unverified

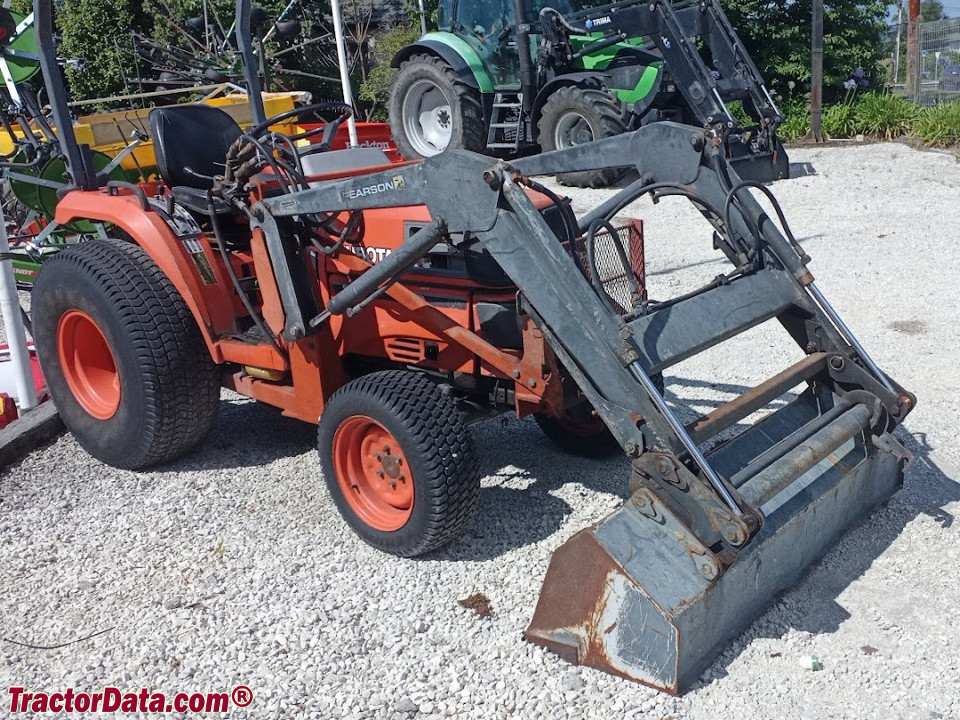

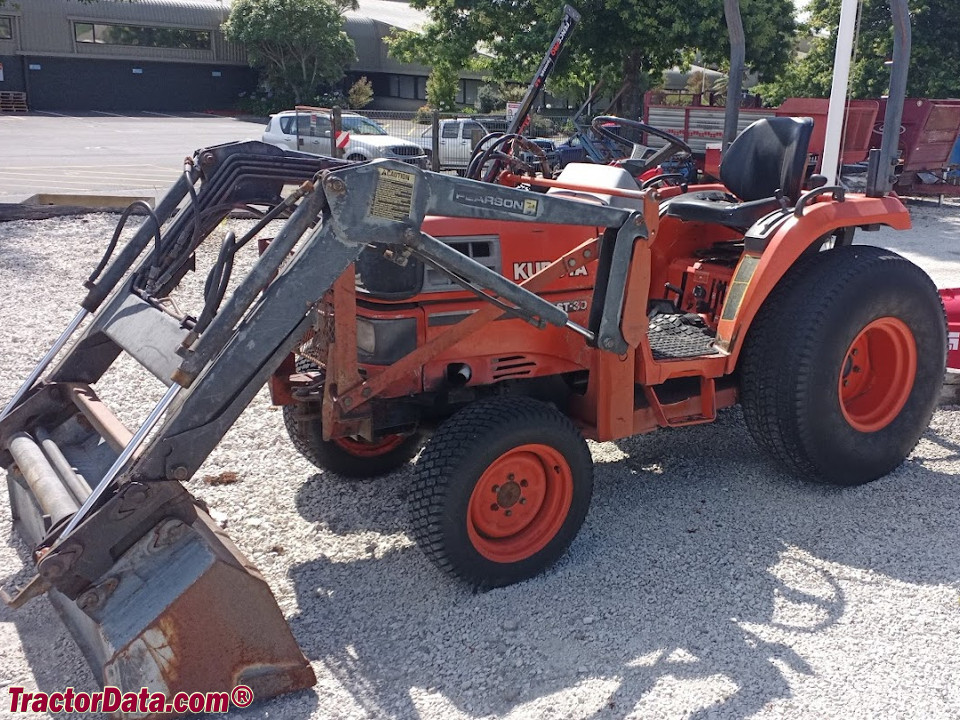

Kubota ST-30
Kubota ST-30 — ST Series · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
1962 to 2475 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Kubota 1.5L 4-cyl dieselReference
Fuel tank26.9 LReference
Engine21.4 kWReference
Kubota V1505Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke78 x 78 mmReference
Power21.4 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)17.3 kWReference
Pump flow21.2 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at 24"/610mm)830 kgReference
Rear PTOindependentReference
Rear PTO Type540/800Reference
Mid PTO Type1720/2490Reference
Dimensions
Wheelbase160 cmReference
Weight1962 to 2475 poundsReference
Front tire6.00-12Reference
Rear tire9.5-22Reference
Standard tires (ag)Front: 6.00-12. Rear: 9.5-22Reference
Lawn/turf front24x8.50-14Reference
Lawn/turf rear13.6-16Reference
Length272 cmReference
Width119 cmReference
Height (ROPS)229 cmReference
Height (cab)214 cmReference
ROPS Shipping weight889 kgReference
Cab Shipping weight1122 kgReference
Ground clearance23 cmReference
Front tread102 cmReference
Rear tread94 to 106 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Speeds
With 9.5-22 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
