Tractor · 2002Unverified

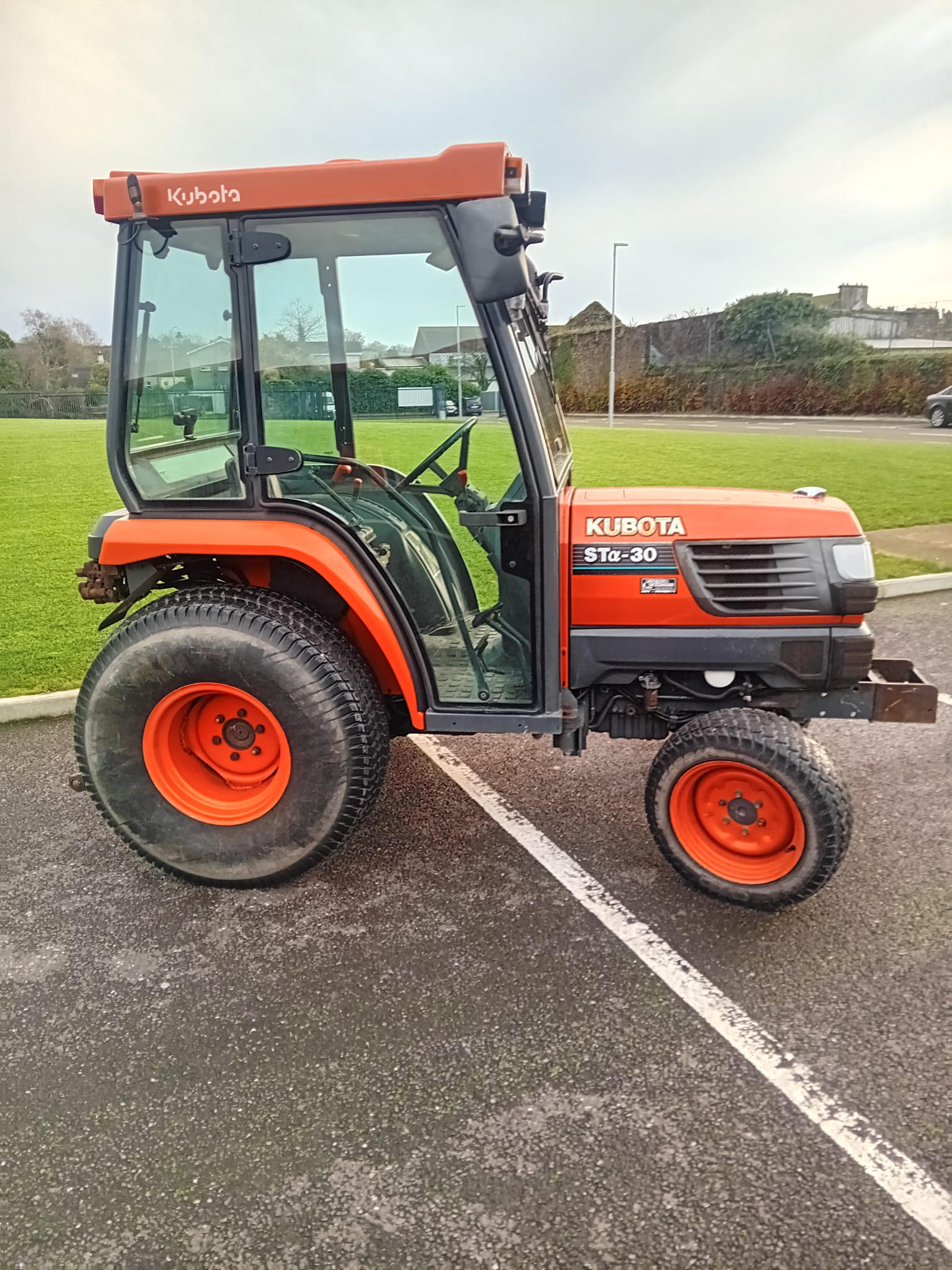

Kubota STA-30
Kubota STA-30 — ST Series · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional.Reference
Engine
Kubota 1.5L 3-cyl dieselReference
Fuel tank29.5 LReference
Engine (gross)22.4 kWReference
Kubota D1643Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke82 x 92 mmReference
Power (gross)22.4 kWReference
Rated RPM2700Reference
Torque96.5 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.5 LReference
Coolant capacity5.8 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Oil capacity18.5 LReference
PTO & Hydraulics
PTO (claimed)17.3 kWReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1149 kgReference
Rear lift (at 24"/610mm)889 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2373Reference
Engine RPM800@2738Reference
Mid PTO Type2500 (Kubota 10-spline)Reference
Engine RPM1700@2710Reference
Engine RPM2500@2755Reference
Dimensions
Wheelbase161 cmReference
Front tire6.00-12Reference
Rear tire9.5-22Reference
Standard tires (ag)Front: 6.00-12. Rear: 9.5-22Reference
Lawn/turf front24x8.50-14Reference
Lawn/turf rear13.6-16Reference
Length287 cmReference
Width122 cmReference
Height (ROPS)234 cmReference
Ground clearance23 cmReference
Front tread102 cmReference
Rear tread94 to 106 cmReference
STA-30 Serial Numbers
Location:Left side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery CCA550Reference
Battery volts12Reference
Speeds
With 9.5-22 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
