Tractor · 2002Unverified

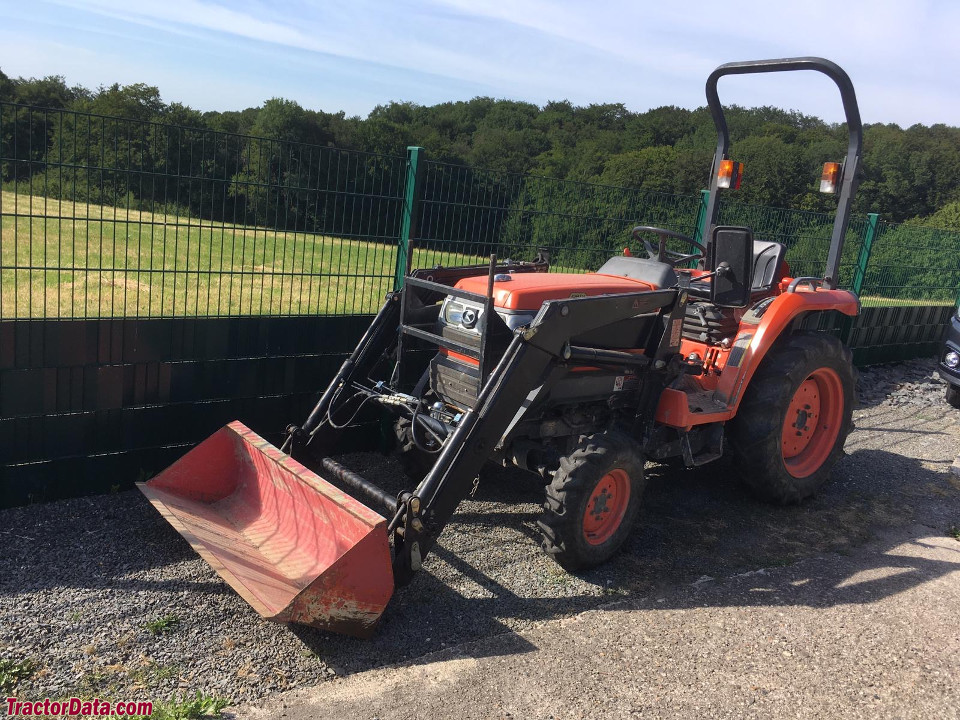

Kubota STA-35

Name: Kubota STA-35
Brand: Kubota

Kubota STA-35 — ST Series · 36 hp. Reference specifications; pending source verification.

The Kubota STA-35 is a tractor rated at approximately 36 hp, placing it at the lighter end of its class. Manufactured from 2002 to 2005, it features a 3-cylinder diesel liquid-cooled engine and four-wheel drive with a hydrostatic transmission. The tractor is suited for operations on up to 200 acres. Specifications for the Kubota STA-35 are detailed below.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

36 hp

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

36 hp

Transmissions

hydrostatic

Production years

2002-2005

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional.Reference

Engine

Kubota 1.6L 3-cyl dieselReference

Fuel tank29.5 LReference

Engine (gross)26.8 kWReference

Kubota D1703Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.6 LReference

Bore/Stroke87 x 92 mmReference

Power (gross)26.8 kWReference

Rated RPM2700Reference

Torque111.1 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Oil capacity4.5 LReference

Coolant capacity5.8 LReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Oil capacity18.5 LReference

PTO & Hydraulics

PTO (claimed)21.0 kWReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)1149 kgReference

Rear lift (at 24"/610mm)889 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2373Reference

Engine RPM800@2738Reference

Mid PTO Type2500 (Kubota 10-spline)Reference

Engine RPM1700@2710Reference

Engine RPM2500@2755Reference

Dimensions

Wheelbase161 cmReference

Front tire6.00-12Reference

Rear tire9.5-22Reference

Standard tires (ag)Front: 6.00-12. Rear: 9.5-22Reference

Lawn/turf front24x8.50-14Reference

Lawn/turf rear13.6-16Reference

Height (ROPS)234 cmReference

Ground clearance23 cmReference

Front tread102 cmReference

Rear tread94 to 106 cmReference

STA-35 Serial Numbers

Location:Left side of the tractor frame, above the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery CCA550Reference

Battery volts12Reference

Speeds

With 9.5-22 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
