Tractor · 2006Unverified

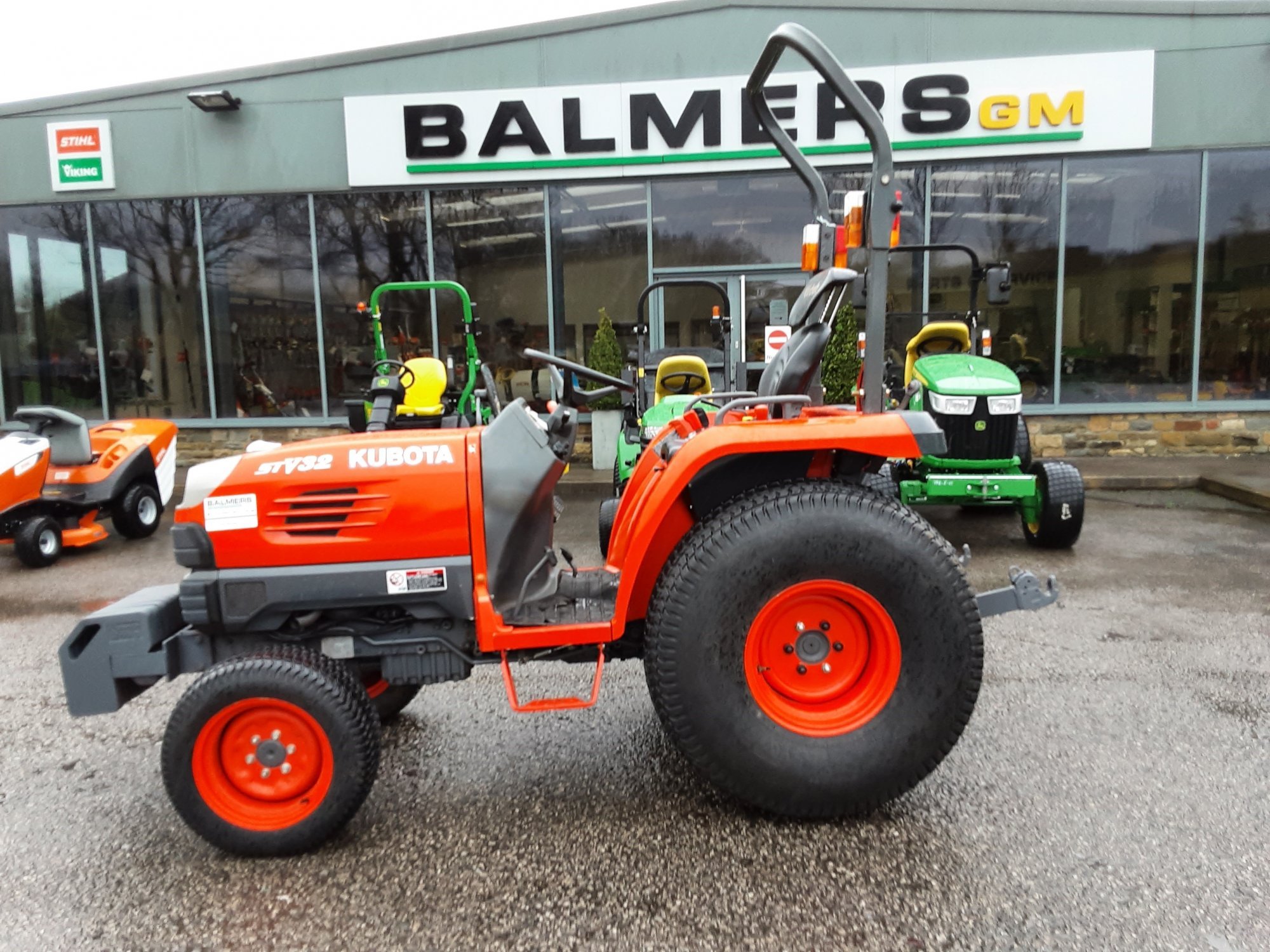

Kubota STV32

Name: Kubota STV32
Brand: Kubota

Kubota STV32 — STV Series · 32 hp. Reference specifications; pending source verification.

The Kubota STV32 tractor is rated at approximately 32 horsepower, positioning it in the lighter end of its class. It was manufactured between 2006 and 2014. The machine features a 3-cylinder diesel liquid-cooled engine and is equipped with four-wheel drive and a hydrostatic transmission. Its operating weight ranges from 2150 to 2502 pounds, with a maximum operational area of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

32 hp

Weight

2150 to 2502 pounds

Catalogue coverage

Variants represented

Richest spec table

58 rows

Recorded power

32 hp

Recorded weight

975 kg

Transmissions

hydrostatic

Production years

2006-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Engine

Kubota 1.5L 3-cyl dieselReference

Fuel tank29.1 LReference

Engine (gross)24.1 kWReference

Engine (net)22.8 kWReference

Kubota D1503MReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke83 x 92 mmReference

Rated Power (net)22.8 kWReference

Power (gross)24.1 kWReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

PTO (claimed)17.7 kWReference

Pressure169.7 barReference

Pump flow23.1 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)1149 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2670Reference

Engine RPM800@2717Reference

Mid PTO Type2500Reference

Engine RPM2500@2734Reference

Dimensions

Wheelbase161 cmReference

Weight2150 to 2502 poundsReference

Front tire6.00-12Reference

Rear tire9.5-22Reference

Standard tires (ag)Front: 6.00-12. Rear: 9.5-22Reference

Lawn/turf front24x8.50-14Reference

Lawn/turf rear13.6-16Reference

Industrial front23x8.50-14Reference

Industrial rear12.4-16Reference

Length267 cmReference

Width121 cmReference

Height (ROPS)234 cmReference

Height (cab)215 cmReference

ROPS Weight975 kgReference

Cab Weight1134 kgReference

Ground clearance23 cmReference

Front tread103 cmReference

Rear tread94 to 106 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
