Tractor · 2006Unverified

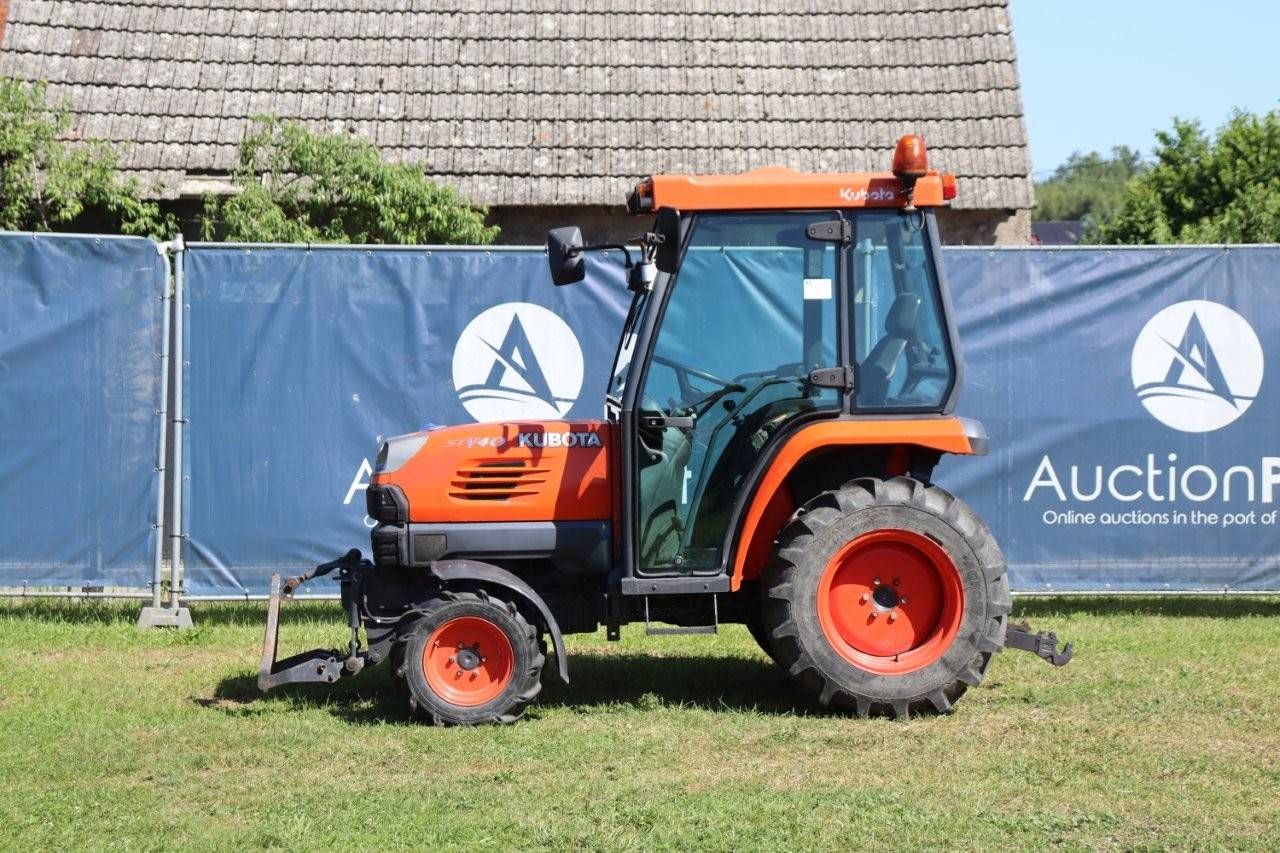

Kubota STV40

Name: Kubota STV40
Brand: Kubota

Kubota STV40 — STV Series · 35 hp. Reference specifications; pending source verification.

The Kubota STV40 is a compact tractor model, rated at 35 hp. Manufactured from 2006 to 2014, it features a 3-cylinder diesel liquid-cooled engine, powering a four-wheel drive system via a hydrostatic transmission. The tractor's listed weight ranges from 2150 to 2502 pounds. It is suited for tasks on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

35 hp

Max power

34.7 hp

Weight

2150 to 2502 pounds

Catalogue coverage

Variants represented

Richest spec table

94 rows

Recorded power

35 hp

Recorded weight

975 kg

Transmissions

hydrostatic

Production years

2006-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Engine

Kubota 1.8L 3-cyl dieselReference

Fuel tank29.1 LReference

Engine (gross)25.9 kWReference

Engine (net)28.2 kWReference

Kubota D1803MReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.8 LReference

Bore/Stroke86 x 102 mmReference

Rated Power (net)28.2 kWReference

Power (gross)25.9 kWReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,700 RPMReference

Bore and stroke3.4x4.0 inchesReference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Transmission TypeHSTReference

forward and reverse optionsHydrostatic : Infinite (3-range) F and Infinite (3-range) RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)22.8 kWReference

Pressure169.7 barReference

Pump flow23.1 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)1149 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2670Reference

Engine RPM800@2717Reference

Mid PTO Type2500Reference

Engine RPM2500@2734Reference

Dimensions

Wheelbase161 cmReference

Weight2150 to 2502 poundsReference

Front tire6.00-12Reference

Rear tire9.5-22Reference

Standard tires (ag)Front: 6.00-12. Rear: 9.5-22Reference

Lawn/turf front24x8.50-14Reference

Lawn/turf rear13.6-16Reference

Industrial front23x8.50-14Reference

Industrial rear12.4-16Reference

Length267 cmReference

Width121 cmReference

Height (ROPS)234 cmReference

Height (cab)215 cmReference

ROPS Weight975 kgReference

Cab Weight1134 kgReference

Ground clearance23 cmReference

Front tread103 cmReference

Rear tread94 to 106 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

General

Make & ModelKubotaReference

Cruise controlAvailableReference

Rollover protective structureTwo-post ROPS.Reference

Capacities

Capacity111.4 ciReference

Power

Max Power34.7 hpReference

Rated Power37.8 hpReference

PTO

PTO Power30.6 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTOAvailableReference

Mid PTO RPM2,500 RPMReference

Engine Speed on Rear PTO speed540@2,670 | 800@2,717 RPMReference

Engine Speed on Mid PTO speed2,500@2,734 RPMReference

Steering & brakes

Brakeswet discReference

Steering typePowerReference

Hydraulics

Maximum operating pressure2,461 psiReference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity1,149.9 kgReference

Rear Hitch Sensing Typeposition controlReference

Dimensions & weight

Height Over ROPS235 cmReference

Height Over Cab215.9 cmReference

Overall Length268 cmReference

Overall Width121.9 cmReference

Overall weight975.2 kgReference

Wheels & tyres

Rear wheel tread range37.4 to 42.1 inchesReference

Front Wheel tread range103.1 cmReference

Operator station

Cab AvailabilityCab optional.Reference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
