Lawn Tractor · 2002Unverified

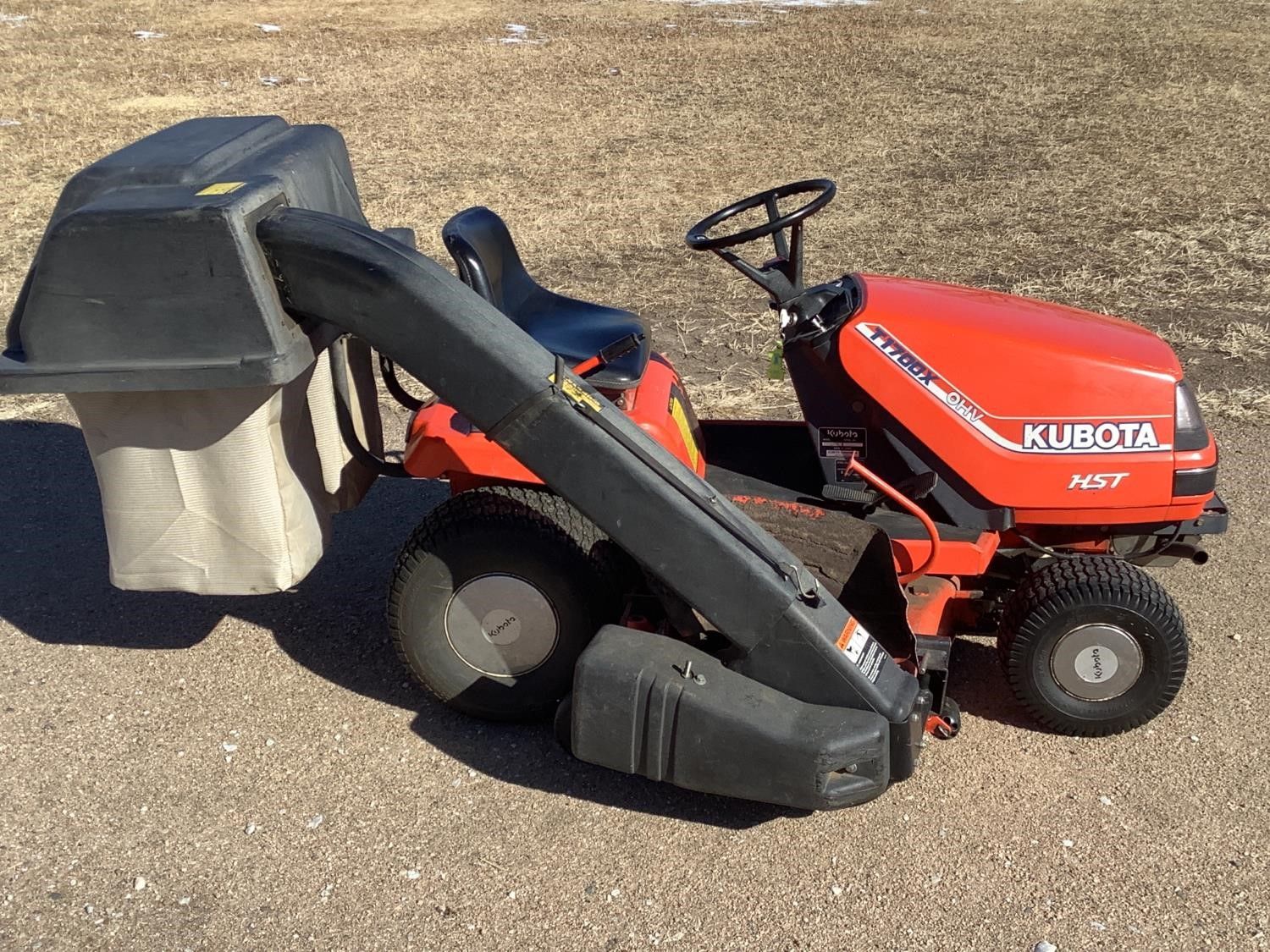

Kubota T1770
Kubota T1770 — T Series · 17 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
254 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Lawn tractorReference
Two-wheel driveReference
Steeringmanual, sector and pinionReference
Disc brakesReference
Open operator station.Reference
Engine
17HP Kawasaki 493cc 2-cyl gasolineReference
17HP Kohler 560cc 2-cyl gasolineReference
Fuel tank15.1 LReference
Kawasaki FH500VReference
gasolineReference
2-cylinderReference
air-cooled vertical-shaft V-TwinReference
The Kawasaki engine was used on the T1770 in 2002 and 2003.Reference
Displacement30.1 ciReference
Bore/Stroke68 x 68 mmReference
Power12.7 kWReference
Starter volts12Reference
Kohler CV17Reference
The Kohler engine was used on the T1770 beginning in 2004.Reference
Displacement34.2 ciReference
Bore/Stroke73 x 67 mmReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
Dimensions
Wheelbase120 cmReference
Weight254 kgReference
Front tire15x6.00-6Reference
Rear tire20x10.00-8Reference
Lawn/turf front15x6.00-6Reference
Lawn/turf rear20x10.00-8Reference
Length174 cmReference
Width90 cmReference
Height110 cmReference
Kubota T1770 attachments
44" mid-mount mower deckReference
snowblowerReference
bladeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
44" mid-mount mower deckReference
SnowblowerReference
BladeReference
44" Mower deck
Typemid-mount Kubota RCK44LTBReference
Cutting width111 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
