Tractor · 2000Unverified

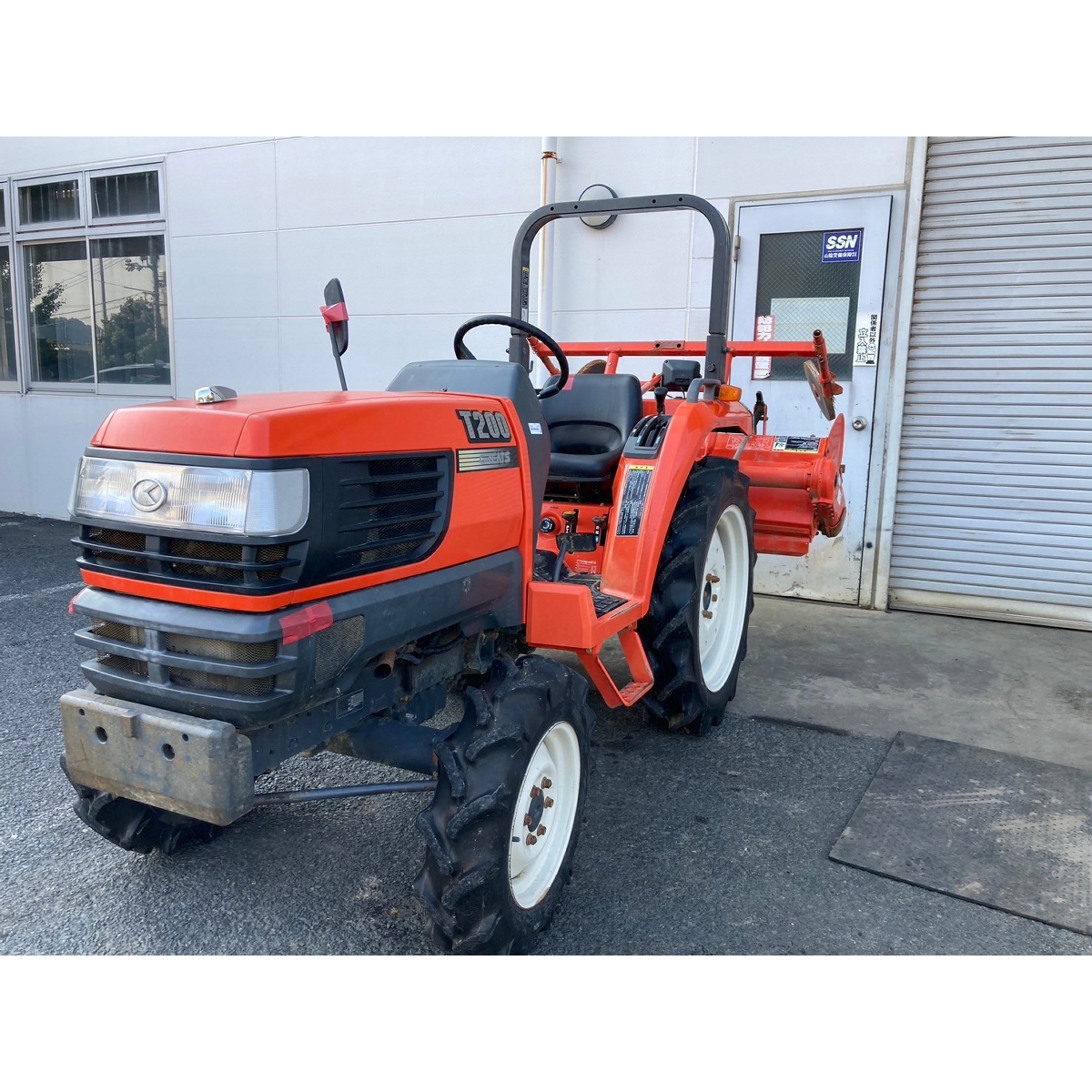

Kubota T200
Kubota T200 — Compact Utility tractor · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
1874 to 1962 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Two-post folding ROPS.Reference
Variants
T200gearReference
T200F4WDReference
Engine
Kubota 1.4L 3-cyl diselReference
Fuel tank28.0 LReference
Engine14.7 kWReference
Kubota D1403Reference
diselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke79 x 91 mmReference
Power14.7 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed gearReference
hydrostaticReference
Gear Weight850 kgReference
TypegearReference
Gears12 forward and 4 reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Rear TypeJIS-1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM533@2500Reference
Engine RPM771@2500Reference
Engine RPM1136@2500Reference
Engine RPM-526@2500Reference
Dimensions
Wheelbase145 cmReference
Weight1874 to 1962 poundsReference
Front tire6-14Reference
Rear tire8.3-22Reference
Standard tires (ag)Front: 6-14. Rear: 8.3-22Reference
Optional tires (ag)Front: 6-14. Rear: 8.3-24Reference
Length280 cmReference
Width115 cmReference
Height187 cmReference
Hydro Weight889 kgReference
Ground clearance29 cmReference
Front tread94 cmReference
Rear tread91/103 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
