Tractor · 1999Unverified

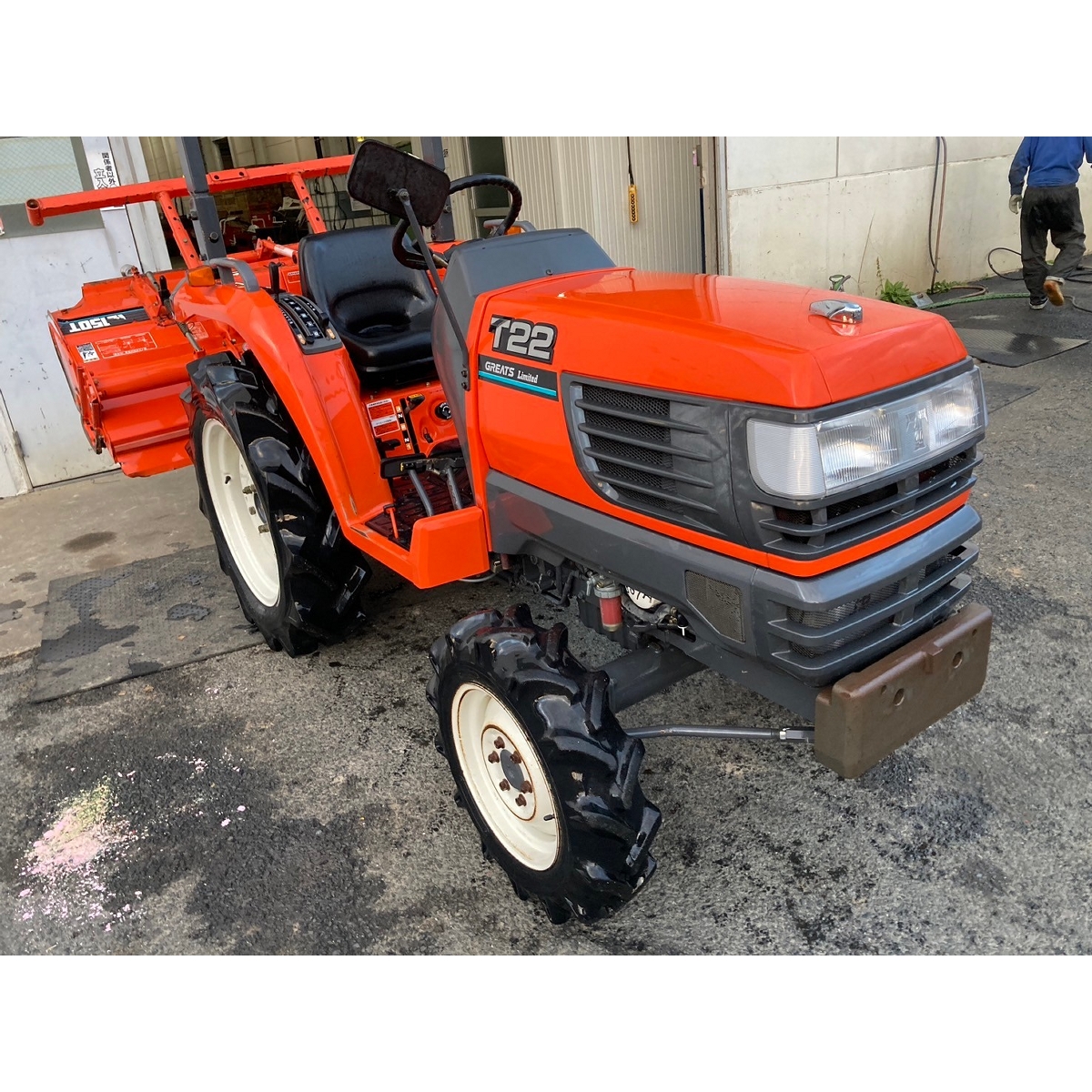

Kubota T22
Kubota T22 — Compact Utility tractor · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
1940 to 2028 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Two-post folding ROPS.Reference
Variants
T22gearReference
T22FhydrostaticReference
Engine
Kubota 1.4L 3-cyl dieselReference
Fuel tank28.0 LReference
Engine16.1 kWReference
Kubota D1403Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke79 x 91 mmReference
Power16.1 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed gearReference
hydrostaticReference
Gear Weight879 kgReference
TypegearReference
Gears12 forward and 4 reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Rear TypeJIS-1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM554@2600Reference
Engine RPM802@2600Reference
Engine RPM1182@2600Reference
Engine RPM-547@2600Reference
Dimensions
Wheelbase145 cmReference
Weight1940 to 2028 poundsReference
Front tire6-14Reference
Rear tire8.3-24Reference
Standard tires (ag)Front: 6-14. Rear: 8.3-24Reference
Length280 cmReference
Width115 cmReference
Height189 cmReference
Hydro Weight919 kgReference
Ground clearance32 cmReference
Front tread94 cmReference
Rear tread91/103 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
With 8.3-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
