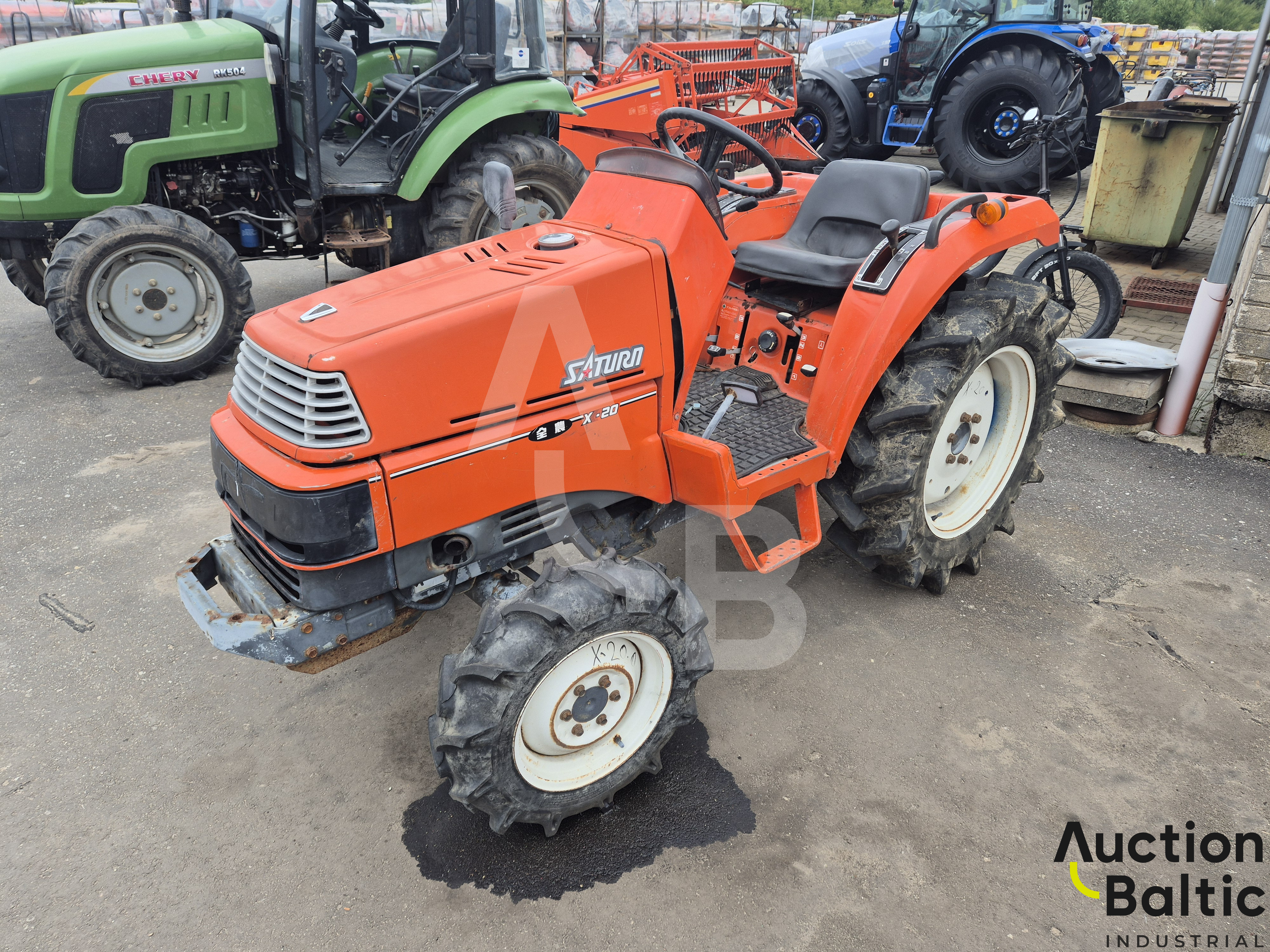

The Kubota X-20 is a tractor model rated at approximately 20 hp, which positions it at the lighter end of its class. In production from 1987 to 1992, this model is equipped with a 4-cylinder diesel liquid-cooled engine and features four-wheel drive with a 9-speed gearbox. The tractor has an operating weight of 805 kg. It is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
805 kg
Catalogue coverage
Variants represented
2
Richest spec table
40 rows
Recorded power
20 hp
Recorded weight
805 kg
Transmissions
9-speed
Production years
1987-1992
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Built in JapanReference
Four-wheel driveReference
Open operator station. Half-cab available.Reference
Engine
Kubota 1.3L 4-cyl dieselReference
Fuel tank26.9 LReference
Engine14.7 kWReference
Kubota V1305Reference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement1.3 LReference
Bore/Stroke76 x 74 mmReference
Power14.7 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speedReference
12-speed creeperReference
Gears9 forward and 3 reverseReference
TypecreeperReference
Gears12 forward and 34 reverseReference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM554@2600Reference
Engine RPM802@2600Reference
Engine RPM1182@2600Reference
Dimensions
Wheelbase145 cmReference
Weight805 kgReference
Front tire6-14Reference
Rear tire8.3R-22Reference
Standard tires (ag)Front: 6-14. Rear: 8.3R-22Reference
