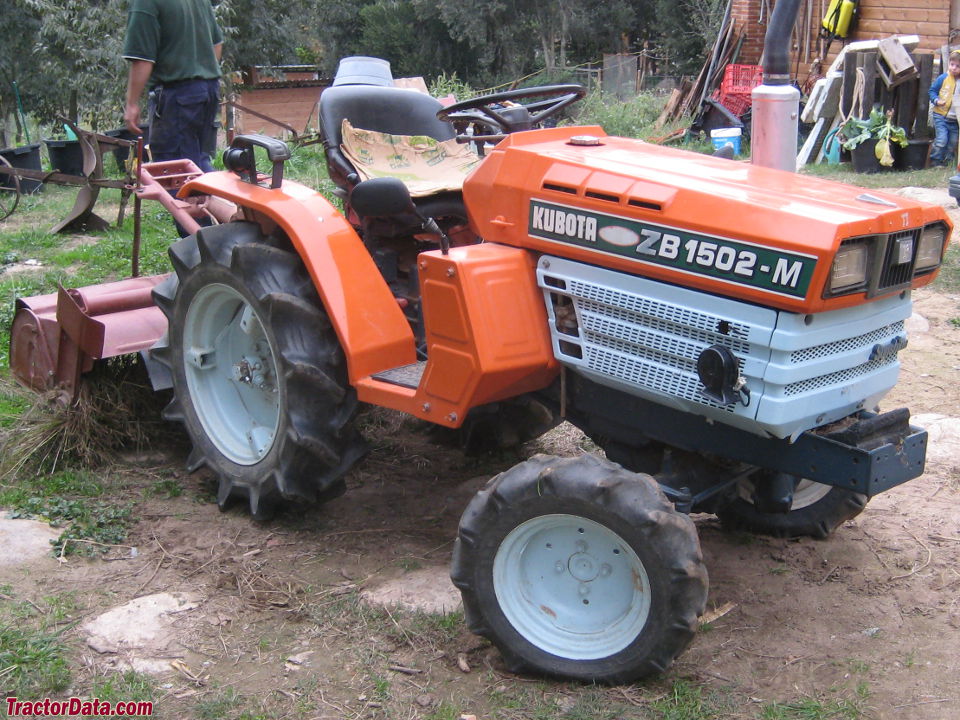

The Kubota ZB1502 is a compact tractor with a rated output of 15 hp, making it suitable for smaller-scale tasks. It features a 3-cylinder diesel liquid-cooled engine that drives four-wheel drive through a 6-speed gearbox. This tractor is designed for managing landholdings of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Catalogue coverage
Variants represented
2
Richest spec table
21 rows
Recorded power
15 hp
Transmissions
6-speed gear
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference

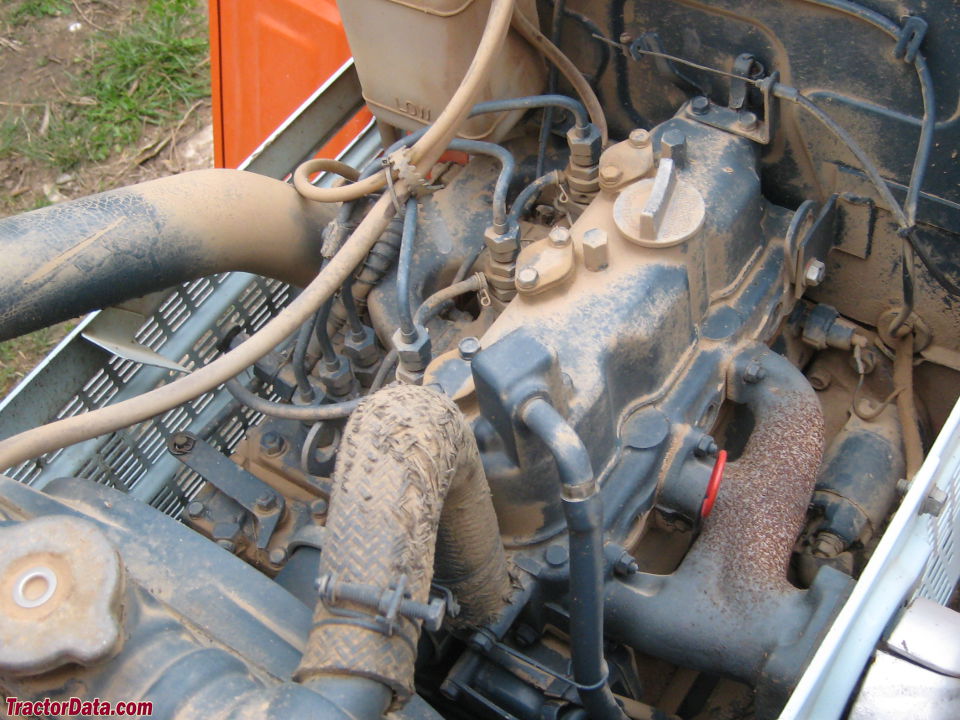

Engine
Kubota 0.9L 3-cyl dieselReference
Kubota D850Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement0.9 LReference
Bore/Stroke72 x 70 mmReference
Rated RPM2600Reference
Starter typeelectricReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)11.2 kWReference
Rear TypeIReference
Rear PTO Type540/750/1000Reference
Dimensions
Length250 cmReference
Width95 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
