Tractor · 1985Unverified

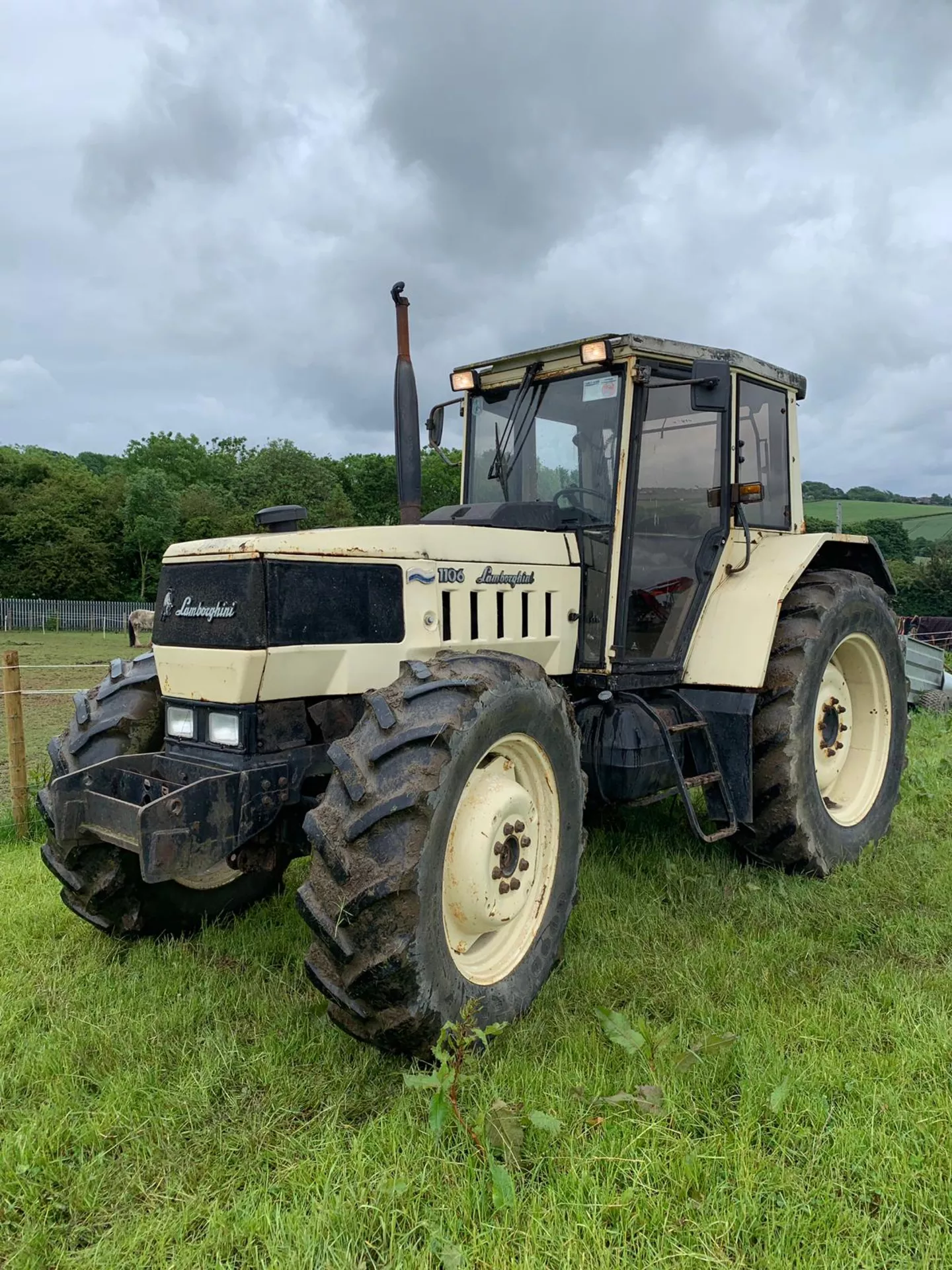

Lamborghini 1106
Lamborghini 1106 — Row-Crop tractor · 110 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
110 hp
Weight
8686 to 10317 pounds
Hover a source tag to verify
Overview
ManufacturerLamborghini (a part of SAME)Reference
Row-Crop tractorReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Cab available with air-conditioning.Reference
Engine
Lamborghini 5.5L 6-cyl dieselReference
Fuel tank240.0 LReference
Engine82.0 kWReference
Lamborghini 916.6 WReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.5 LReference
Bore/Stroke103 x 110 mmReference
Power82.0 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Rated RPM2500Reference
Torque359.1 NmReference
Torque RPM1375Reference
Starter volts12Reference
Transmission
9-speedReference
24-speedReference
20-speed creeperReference
Gears9 forward and 3 reverseReference
Clutchhydraulic cerametallic discReference
Four gears (1-4) plus reverse (R) in three ranges (L/N/V).Reference
Gears24 forward and 12 reverseReference
Four gears (1-4) in three ranges (S/N/F) with two-speed high-low shift.Reference
TypecreeperReference
Gears20 forward and 12 reverseReference
PTO & Hydraulics
Pump flow56.4 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift4599 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase259 cmReference
Weight8686 to 10317 poundsReference
Front tire10.00-16Reference
2WD Rear tire18.4/15-34Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 18.4/15-34Reference
4WD Standard tires (ag)Front: 16.9/14-24. Rear: 18.4/15-34Reference
2WD Optional tires (ag)Front: 9.00-16. Rear: 16.9/14-38Reference
2WD Optional tires (ag)Front: 9.00-16. Rear: 13.6/12-38Reference
2WD Optional tires (ag)Front: 11.00-16. Rear: 16.9/14-38Reference
4WD Optional tires (ag)Front: 14.9/13-28. Rear: 16.9/14-38Reference
4WD Optional tires (ag)Front: 12.4/11-28. Rear: 13.6/12-38Reference
4WD Optional tires (ag)Front: 14.9/13-30. Rear: 18.4/15-38Reference
2WD Length403 cmReference
4WD Length422 cmReference
Width212 cmReference
2WD Ground clearance59 cmReference
4WD Ground clearance44 cmReference
2WD Front tread150 to 199 cmReference
4WD Front tread160 to 189 cmReference
Rear tread165 to 226 cmReference
2WD ROPS3939 kgReference
2WD Cab4140 kgReference
4WD ROPS4479 kgReference
4WD Cab4679 kgReference
Electrical
Charging systemalternatorReference
ROPS Charging amps45Reference
Cab Charging amps55Reference
Battery volts12Reference
Battery AH143Reference
Lamborghini 1106 Height
2WD Hood177 cmReference
4WD Hood176 cmReference
ROPS265 cmReference
Cab269 cmReference
Speeds
With 18.4/15-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
