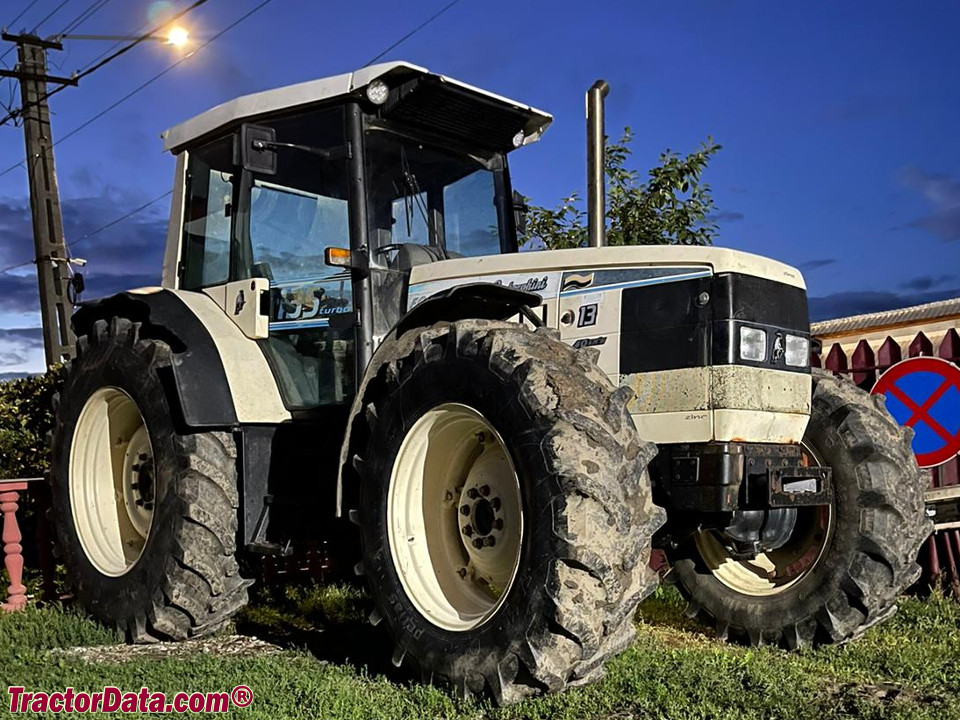

Lamborghini 135 Formula
Lamborghini 135 Formula — Formula Series · 132 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
132 hp
Weight
4900 kg
Hover a source tag to verify
Overview
ManufacturerLamborghiniReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Cab standard with available air-conditioning.Reference
Engine
SAME 6.0L 6-cyl dieselReference
Fuel tank230.1 LReference
Engine98.4 kWReference
SAME 100.6WTReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke105 x 116 mmReference
Power98.4 kWReference
Rated RPM2500Reference
Torque492.1 NmReference
Torque RPM1450Reference
Transmission
54-speed three-speed power shiftReference
72-speed creeperReference
TransmissionMultispeedReference
Typethree-speed power shiftReference
Gears54 forward and reverseReference
Clutchelectro-hydraulic wet discReference
Six gears (1-6) in three ranges (L/M/H) with three-speed power shift.Reference
TypecreeperReference
Gears72 forward and reverseReference
Creeper option adds a fourth ranges to the standard transmission.Reference
PTO & Hydraulics
Pump flow57.5 lpmReference
Rear lift6201 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/540E/1000/1000EReference
Front PTOindependentReference
Clutchelectro-hydraulicReference
Front PTO Type1000Reference
Dimensions
Wheelbase275 cmReference
Weight4900 kgReference
Front tire14.9R30Reference
Rear tire18.4R38Reference
Standard tires (ag)Front: 14.9R30. Rear: 18.4R38Reference
Optional tires (ag)Front: 14.9R28. Rear: 16.9R38Reference
Optional tires (ag)Front: 480/70R28. Rear: 520/70R38Reference
Optional tires (ag)Front: 16.9R30. Rear: 20.8R38Reference
Length432 cmReference
Length458 cmReference
Width221 cmReference
Height (hood)187 cmReference
Height (cab)280 cmReference
Ground clearance44 cmReference
Front tread180 to 207 cmReference
Speeds
With 18.4R28 rear tires. Over- and under-drive power shift speeds are about 20% higher and lower, respectively.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
