Tractor · 1983Unverified

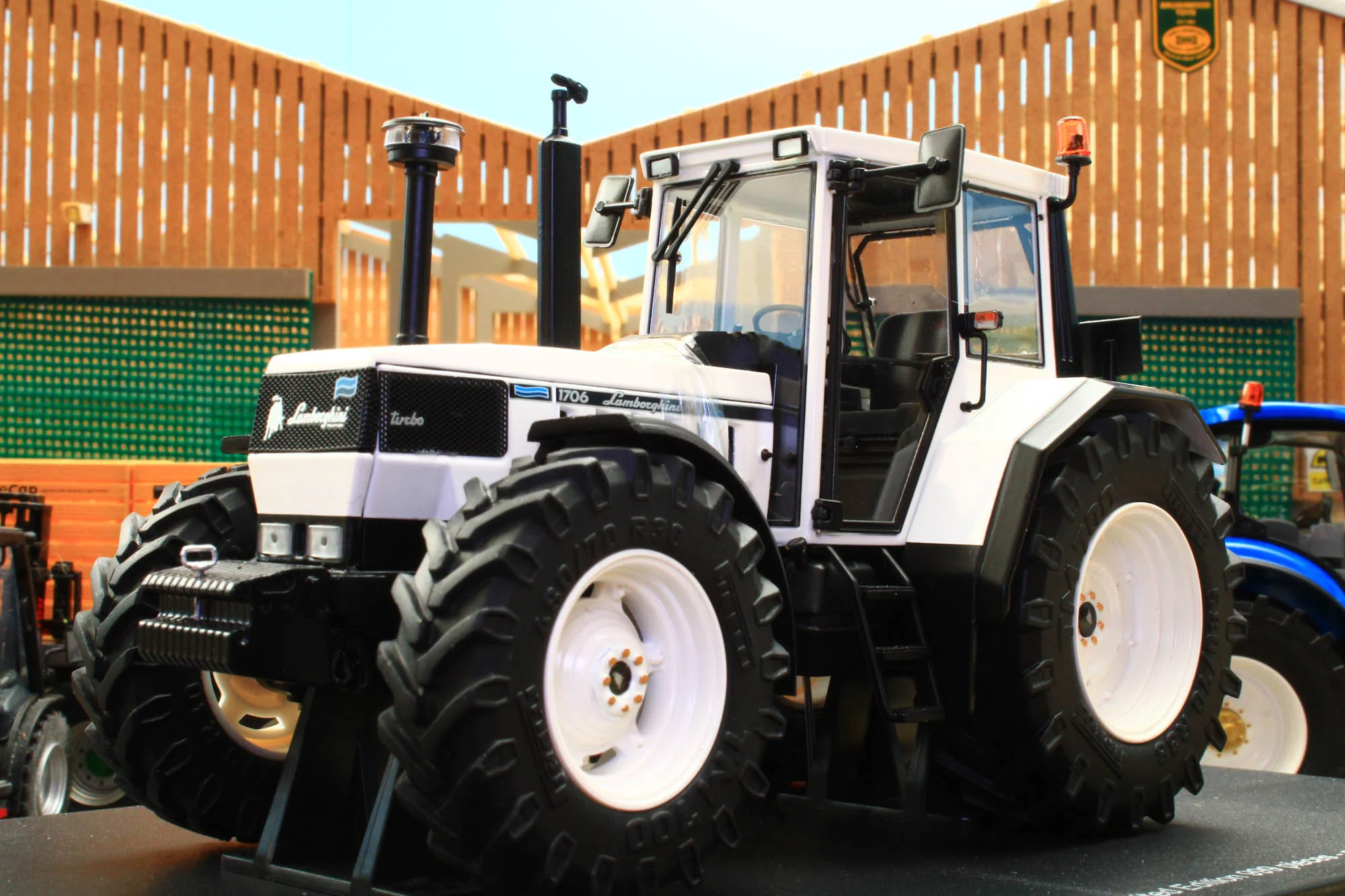

Lamborghini 1706
Lamborghini 1706 — Row-Crop tractor · 165 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
165 hp
Weight
13272 to 13713 pounds
Hover a source tag to verify
Overview
ManufacturerLamborghini (a part of SAME)Reference
Row-Crop tractorReference
Four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Cab available with air-conditioning.Reference
Engine
Lamborghini 6.8L 6-cyl dieselReference
Fuel tank240.0 LReference
Engine123.0 kWReference
Lamborghini 1106/17TReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke110 x 120 mmReference
Power123.0 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Rated RPM2200Reference
Torque634.1 NmReference
Starter volts12Reference
Transmission
24-speedReference
Gears24 forward and 8 reverseReference
Clutchhydraulic cerametallic discReference
PTO & Hydraulics
Pump flow64.0 lpmReference
Rear TypeIII/IIReference
Controlposition and draft controlReference
Rear lift6000 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type1000 (1.375)Reference
Dimensions
Wheelbase285 cmReference
Weight13272 to 13713 poundsReference
Front tire16.9/14-30Reference
Rear tire20.8-38Reference
Ag front16.9/14-30Reference
Ag rear20.8-38Reference
Length451 cmReference
Width222 cmReference
ROPS Weight6020 kgReference
Cab Weight6220 kgReference
Ground clearance53 cmReference
Front tread180 to 199 cmReference
Rear tread169 to 219 cmReference
Electrical
Charging systemalternatorReference
ROPS Charging amps45Reference
Cab Charging amps55Reference
Battery volts12Reference
Battery AH176Reference
Lamborghini 1706 Height
Hood189 cmReference
ROPS279 cmReference
Cab286 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
